Siel SAFEPOWER S Intallation & User Manual

10-20kva 3-1ph ups
Hide thumbs Also See for SAFEPOWER S:
Table of Contents

Advertisement

Quick Links

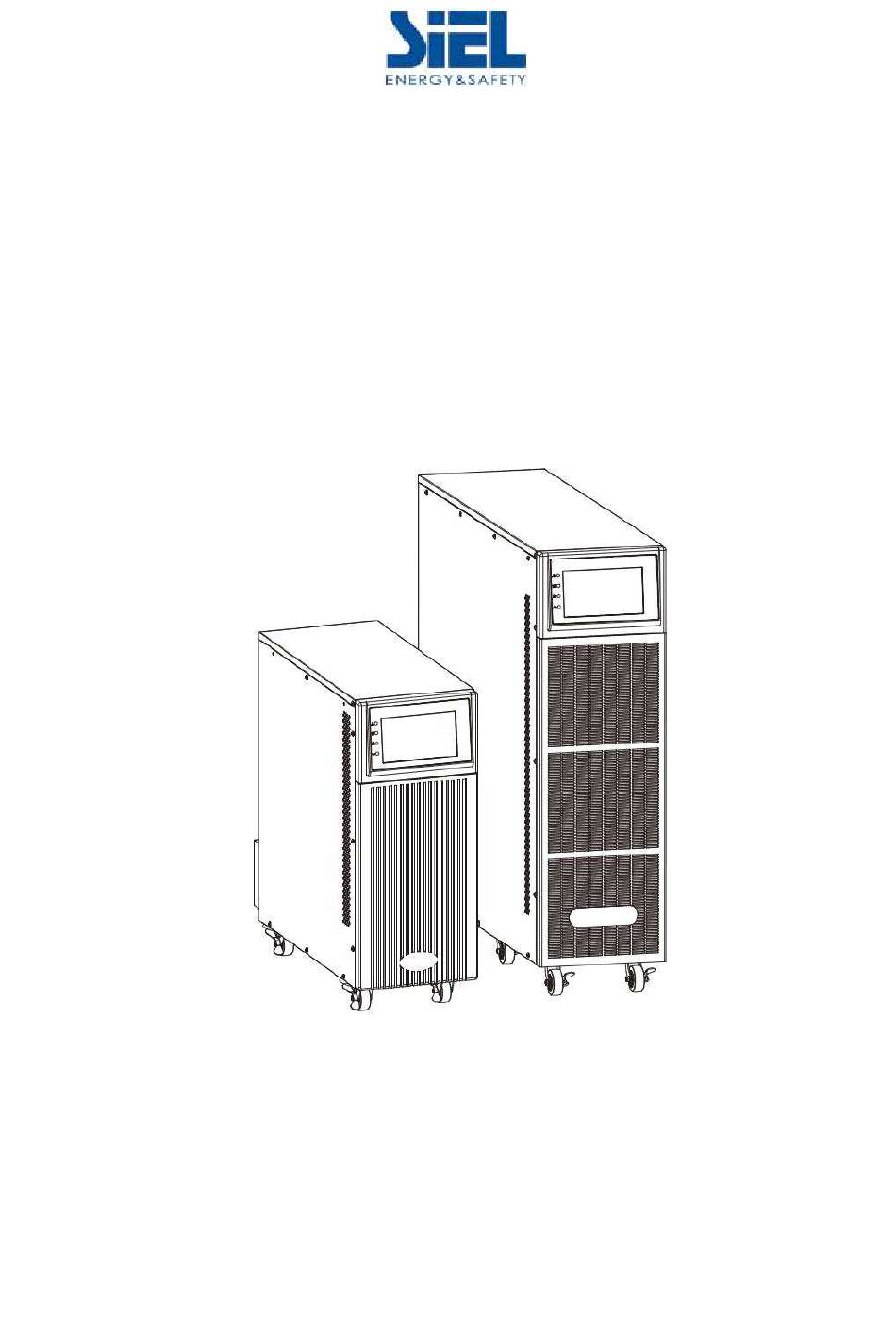

10-20kVA 3-1Ph UPS
INTALLATION & USER MANUAL
SAFEPOWER S
KEEP FOR FUTURE REFERENCE
for the entire life of the appliance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAFEPOWER S and is the answer not in the manual?

Questions and answers

Related Manuals for Siel SAFEPOWER S

Summary of Contents for Siel SAFEPOWER S

  • Page 1 10-20kVA 3-1Ph UPS INTALLATION & USER MANUAL SAFEPOWER S KEEP FOR FUTURE REFERENCE for the entire life of the appliance...
  • Page 2 Read this manual carefully before installation This manual provides technical support to the operator of the equipment. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 2 of 50 + FR...

  • Page 3: Table Of Contents

    4.3.6 Maintenance ............................35 4.3.7 Function ............................. 35 4.3.8 Alarm Information ..........................36 4.4 Options .............................. 37 Appendix 1 Specifications .......................... 38 IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 3 of 50 + FR...

  • Page 4: Safety

    UPS from working under following environment for long time Area where the humidity and temperature is out of the specified range(temperature 0 to 40 , relative humidity 5%-95%) IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 5: Symbols Used In This Guide

    Constant voltage mode, constant current mode or floating mode can be switched automatically and smoothly. Intelligent Charging Method The series UPS adopts advanced three-stage charging method— IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 5 of 50 + FR...

  • Page 6: Installation

    UPS if any damage found. Please contact the dealer right away. 3. Check the accessories according to the packing list and contact the dealer in case of missing parts. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 7: Cabinet Outlook

    3.2 Cabinet Outlook 3.2.1 10-20k (H) Front View Side View 10kVA Rear View(terminal block without cover) 15-20kVA Rear View(terminal block without cover) IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 7 of 50 + FR...
  • Page 8 (13) Intelligent Slot 2 (SNMP card/ Relay card) (14) Intelligent Slot 1 (SNMP card) (15) RS485 port (16) REPO port (17) EVENTS port (18) Cold start button (19) Bypass Switch (Dual input) IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 8 of 50 + FR...
  • Page 9 3.2.2 10-20k (S) Front View Side View 10kVA Rear View 15-20kVA Rear View (terminal block without cover) (terminal block without cover) IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 9 of 50 + FR...

  • Page 10: Lcd Control Panel

    (20) Power Switch 3.3 LCD control panel LCD control panel introduction 1 LED from top to bottom: “alarm”, “bypass”, “battery”, “inverter” 2 LCD display IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 10 of 50 + FR...

  • Page 11: Installation Notes

    If the protection against electric shock of the system where the UPS is installed is based on differential current devices, the devices must be type B, ID min. 300mA, delay ≥ to 0.1s. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag.

  • Page 12: Power Cables

    For Grounding connection, follow the shortest route possible. WARNING! Failure to follow adequate earthing procedures may result in electromagnetic interference or in hazards involving electric shock and fire IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 12 of 50 + FR...

  • Page 13: Power Cable Connect

    Bps-L, Input phase Mains-L2(L2), Input phase Mains-L3(L3), Input Neutral line mains-N, Bypass Neutral line Bps-N, Output phase Output-L(L), Output Neutral line output-N, GROUND, Battery positive BAT+, Battery Neutral BATN, Battery negative BAT-, GROUND. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...
  • Page 14 CAUTION! The earthing and neutral bonding arrangement must be in accordance with local and national codes of practice. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 14 of 50 + FR...

  • Page 15: Battery Connection

    Battery anode and the neutral are called positive batteries and that between neutral and cathode are called negative ones. The user can choose the capacity and the numbers of the batteries according to their desire. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...
  • Page 16 Do not reconnect these links and do not close the battery circuit breaker unless authorized by the commissioning engineer. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 16 of 50 + FR...

  • Page 17: Ups Parallel Installation

    In order to assure that all UPS are equally utilized and comply with relevant wiring rules, please follow the requirements below: 1) All UPS must be of the same rating and be connected to the same bypass source. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 18: Computer Access

    A window of “Software Parameter Setting” comes out as below, COM choose according to the UPS , baud rate choose 9600, protocol choose “HIP”, then save this setting. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...
  • Page 19 CAUTION! When the UPS worked on inverter. If you want to use PC to set the output voltage and frequency. Must shut down the inverter first IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 19 of 50 + FR...

  • Page 20: Operation

    This is to avoid paralleling of unsynchronized AC sources. This interruption is programmable but typically set to be less than an electrical cycle e.g. less than 15ms (50Hz) or less than 13.33ms (60Hz). IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag.
  • Page 21 A manual bypass switch is available to ensure continuity of supply to the critical load when the UPS is out of order or in repair and this manual bypass switch bears for equivalent rated load. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag.

  • Page 22: Turn On/Off Ups

    LED lights up. No matter whether the UPS can work normally or not, all the status will be shown on the LCD display. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 22 of 50 + FR...
  • Page 23 Switch OFF the maintenance bypass breaker, then the output is supplied by the static bypass of the UPS. Turn on battery breaker. Put on the maintenance switch cover. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 23 of 50 + FR...
  • Page 24 On-line mode: Press OFF to shut down the UPS, waiting about 30s. Open the BATTERY breaker for long run UPS. Open the battery power switch IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 24 of 50 + FR...
  • Page 25 4.2.6 Parallel setting Connect the UPS with computer. Power on the UPS. Open Muser4000 software, after connecting with the UPS successfully, click “System”->“User Set” IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 25 of 50 + FR...
  • Page 26 At the window of “Data Set”, click “Ups ID”, write a value for the parallel UPS ID at the right side, such as “1”, then click “Set” as shown in below picture. If the UPS sounds a “beep”, that means the setting is correct. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 27: The Lcd Display

    1 LED from top to bottom: “alarm”, “bypass”, “battery”, “inverter” 2 LCD display CAUTION! The display provides more functions than those described in this manual. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 27 of 50 + FR...

  • Page 28: Home Page

    1) Click on the bypass icon to enter the bypass data window, click on the back icon return to last window and click on the homepage icon jump to main page. 20kVA IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...
  • Page 29 3) Click on the Load icon to enter the output data window, click on the back icon return to last window and click on the homepage icon jump to main page. 20kVA IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 30: Running Information

    20kVA 4.3.2 Running Information Click on Runn. info icon to enter the information page. 20kVA IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 30 of 50 + FR...
  • Page 31 , click on the back icon return to last window and click on the homepage icon jump to main page. 20kVA IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 31 of 50 + FR...

  • Page 32: Alarm

    1) Click on the active Alarm icon to enter the module data window, can see the alarm data, click on the back icon return to last window and click on the homepage icon jump to main page. 20kVA IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 33: Setting

    4.3.4 Setting Click on setting icon to enter setting page, click on the back icon return to last window and click on the homepage icon jump to main page IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 34: Advanced Setting

    Click advanced setting, enter by input the correct password. Note: This operation is recommended to be operated by professionals, or under the guidance of professionals. Require the password to your UPS supplier. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 35: Maintenance

    Click on Function icon to enter setting page, click on the back icon return to last window and click on the homepage icon jump to main page 20kVA IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 36: Alarm Information

    Inner Communication Fault Once per 2 seconds Fault LED blinking DC Component Over Limit. Once per 2 seconds INV LED blinking (Unbalance INV. DC) IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 36 of 50 + FR...

  • Page 37: Options

    The relay communication card contains six dry contact outputs and one dry input. The inputs and outputs are factory progr ammed according to functions listed in the table Table: Relay Contacts (communication card) IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 38: Appendix 1 Specifications

    Output Utility Mode ±1%, ±2%, ±4%, ±5%, ±10% of the rated frequency(optional) Frequency Battery Mode (50/60±0.1%)Hz Crest Factor ≤2% with linear load IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 38 of 50 + FR...
  • Page 39 < 1500m.When>1500m,lower the rated power for use Standard unit 250×900×868 Dimensions (W×D×H)mm Long run unit 250×580×655 Other Weight (Kg) 125/33 180/37 181/38 IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 39 of 50 + FR...

  • Page 40: Appendix 2 Problems And Solution

    Switch on the power breaker. panel not switch ON. Buzzer beeps UPS is out of order Consult with your local agent for repair continuously and LCD IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 40 of 50 + FR...

  • Page 41: Appendix 3 Usb Communication Port Definition

    CAUTION! USB, RS232 and RS485 interface cannot be used at the same time, you can only use one of them at one time. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 41 of 50 + FR...

  • Page 42: Appendix 4 Rs232 Communication Port Definition

    CAUTION! USB, RS232 and RS485 interface cannot be used at the same time, you can only use one of them at one time. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 42 of 50 + FR...

  • Page 43: Appendix 5 Rs485 Communication Port Definition

    USB, RS232 and RS485 interface cannot be used at the same time, you can only use one of them at one time. RS485 port pin7 is 12Vdc! IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 43 of 50 + FR...

  • Page 44: Appendix 6 Dry Contact Port Definition

    Drive the bypass breaker when backfeed alarm. Function 2 description (Optional, internal J5 jumper): Drive the battery breaker when battery voltage low. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 44 of 50 + FR...

  • Page 45: Appendix 7 Repo Instruction

    REPO connector. The remote switch can be connected to several UPS in a parallel architecture allowing the user to stops all units at once. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 46: Appendix 8 Backfeed Protection

    Connections to provide backfeed protection are show into following schematic diagram. P24V / M – External power supply +24Vcc R – Relay C – Coil F – Fuse Backfeed installation with relay: IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 46 of 50 + FR...
  • Page 47 Backfeed installation without relay: IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 47 of 50 + FR...

  • Page 48: Appendix 9 Battery Replacement

    Do not touch the battery terminals. 4) Take out the battery that needs to be replace, then install the new battery. At last, install the battery covering and connection wires . IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...

  • Page 49: Appendix 10 Dust-Proof Net Replacement

    Remove the screws of the right and left panel, and then open both panels Remove the screws as the following picture shows and then remove the front panel. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05...
  • Page 50 Remove the dust proof net according to the following direction. IV432E Rev.01 SIEL S.p.A. Installation and user manual Date of issue: 2021-05-05 Pag. 50 of 50 + FR...
