Summary of Contents for Motorline professional Portugal MR65
- Page 1 MR65 MR65 USER’S AND INSTALLER’S MANUAL V2.1 REV. 07/2021...
-
Page 2: Table Of Contents
00. CONTENT 01. SAFETY INSTRUCTIONS INDEX ATTENTION: 01. SAFETY INSTRUCTIONS This product is certified in accordance with European Community (EC) safety standards. 02. THE PRODUCT MR65 This product complies with Directive 2011/65/EU of the TECHNICAL CHARACTERISTICS European Parliament and of the Council, of 8 June 2011, on DESCRIPTION the restriction of the use of certain hazardous substances DIMENSIONS... -
Page 3: Safety Instructions
01. SAFETY INSTRUCTIONS GENERAL WARNINGS the motorized door or gate from being triggered involuntarily. • This manual contains very important safety and usage information. WARNINGS FOR TECHNICIANS very important. Read all instructions carefully before beginning the installation/usage procedures and keep this manual in a safe place •... - Page 4 01. SAFETY INSTRUCTIONS RESPONSABILITY to the release mechanism. • Disconnect means, such as a switch or circuit breaker on the electrical • Supplier disclaims any liability if: panel, must be provided on the product’s fixed power supply leads in • Product failure or deformation result from improper installation accordance with the installation rules.
-
Page 5: The Product

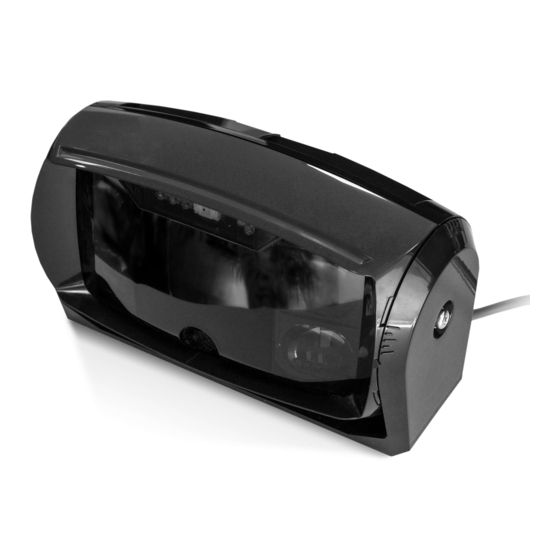

02. THE PRODUCT 02. THE PRODUCT MR65 DESCRIPTION The MR65 is a radar ideal for large doors, such as high speed doors, and can be installed up to 6.5m high. Fixing support Operation LED sensor It has detection technology capable of differentiating people and vehicles, reducing unwanted openings, body (Red, Green) thus saving energy. -
Page 6: Installation
03. INSTALLATION INSTALLATION AND CONNECTIONS To ensure the correct functioning of the MR65, please note the following indications: • Prevent the installation site from having accumulation of snow or water on the ground; • Adjust the sensor body so that it does not detect the door; •... -
Page 7: Programming
04. PROGRAMMING 04. PROGRAMMING ADJUSTMENT OF THE DETECTION AREA DEPTH: INFRARED ADJUSTMENT OF THE DETECTION AREA WIDTH: INFRARED When the angle of the sensor When the angle of the sensor 01 • Adjust the detection angle between 16˚ and 32˚ by moving the body angle. body is set to 32°... - Page 8 04. PROGRAMMING 04. PROGRAMMING ADJUSTMENT OF THE DETECTION AREA DEPTH: RADAR ADJUSTMENT OF THE DETECTION AREA DEPTH: RADAR 01 • Adjust the detection width by turning the controller clockwise or counterclockwise. Sensor body angle Sensor body angle set to 32° set to 16°...
-
Page 9: Configuration
05. CONFIGURATION 05. CONFIGURATION CONFIGURATION BY REMOTE CONTROL CONFIGURATION BY REMOTE CONTROL MR65 - RC DIRECTION DETECTION BOTH APPROX. APPROX. APPROX. ONLY JUST GO RADAR This menu prevents the sensor from detecting an object that moves ONLY away from the sensor. Factory default is [1]. CONFIGURATION VALUES Nota •... - Page 10 05. CONFIGURATION 05. CONFIGURATION CONFIGURATION BY REMOTE CONTROL CONFIGURATION BY REMOTE CONTROL ADJUSTMENT OF INFRARED SENSITIVITY INFRARED WIDTH ADJUSTMENT – RIGHT SIDE MAXIMUM This menu allows you to set the infrared detection MINIMUM VALUE FACTORY VALUE VALUE This menu allows you to set the infrared detection width for sensitivity.
-
Page 11: Checking The Settings 10B
05. CONFIGURATION 05. CONFIGURATION CONFIGURATION BY REMOTE CONTROL CONFIGURATION BY REMOTE CONTROL INSECTS MODE INFRARED DETECTION TARGET VEÍCULO This menu allows you to reduce malfunctions caused by insects. This menu allows you to set the detection target for infrared area detection, which VEÍCULO E PESSOA Factory default is [1]. -
Page 12: Maintenance Mode 11A
05. CONFIGURATION 05. CONFIGURATION MAINTENANCE MODE LED INDICATORS (COMMAND LED) 01 • This setting is used during maintenance. Flashing Function Button Blue Yellow Function When the [#] button is pressed, the configuration options Finish selection Complete sensor LED flashes green to indicate registration Relay Output (IR/Radar) Direction detection... -
Page 13: Troubleshooting
06. TROUBLESHOOTING INSTRUÇÕES PARA CONSUMIDORES FINAIS/TÉCNICOS ESPECIALIZADOS Problem Possible cause Solution Incorrect supply voltage. Apply the proper voltage to the sensor (12-24V ac/dc). The door does not open when a person Turned off enters the detection Incorrect sensor connection. Check sensor connection again. area Move object in detection area.
