Specifications; Voltage Selection; Ac Power Supply Cord And Ac Plug Adaptor - Sharp QT-80W Service Manual

QT-80W
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
General
Power source AC 110-127/220-240 V, 50/60 Hz
DC 12 V ["D" size (UM/SUM-1, R20 or HP-2) battery x 8]
Power consumption 20 W
Output power MPO: 18 W (9 W + 9 W) (AC operation, 10 % T.H.D)
RMS: 10 W (5 W + 5 W) (DC operation, 10 % T.H.D)
Speakers 8 cm (3-1/8") full range speaker x 4
Output terminal Headphones: 16-50 ohms (recommended: 32 ohms)
Input terminals Mixing microphone: 600 ohms
Line input: 350 mV/47 kohms
Dimensions Width: 520 mm (20-1/2")
Height: 191 mm (7-1/2")
Depth: 216 mm (8-1/2")
Weight 4.2 kg (9.3 lbs.) without batteries
Radio
Frequency range FM: 88 - 108 MHz
SW1: 2.3 - 7.3 MHz
SW2: 7.3 - 22 MHz
MW: 526.5 - 1,606.5 kHz
Tape recorder
Frequency response 60 - 12,000 Hz (Normal tape)
Signal/noise ratio 40 dB
Wow and flutter 0.3 % (WRMS)
Motor DC 9 V electric governor
Bias system AC bias
Erase system
Magnet erase
Specifications for this model are subject to change without prior notice.
Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows. Slide the selector with a screwdriver to the appropriate voltage number. (AC 110 - 127 V or AC 220 - 240 V)

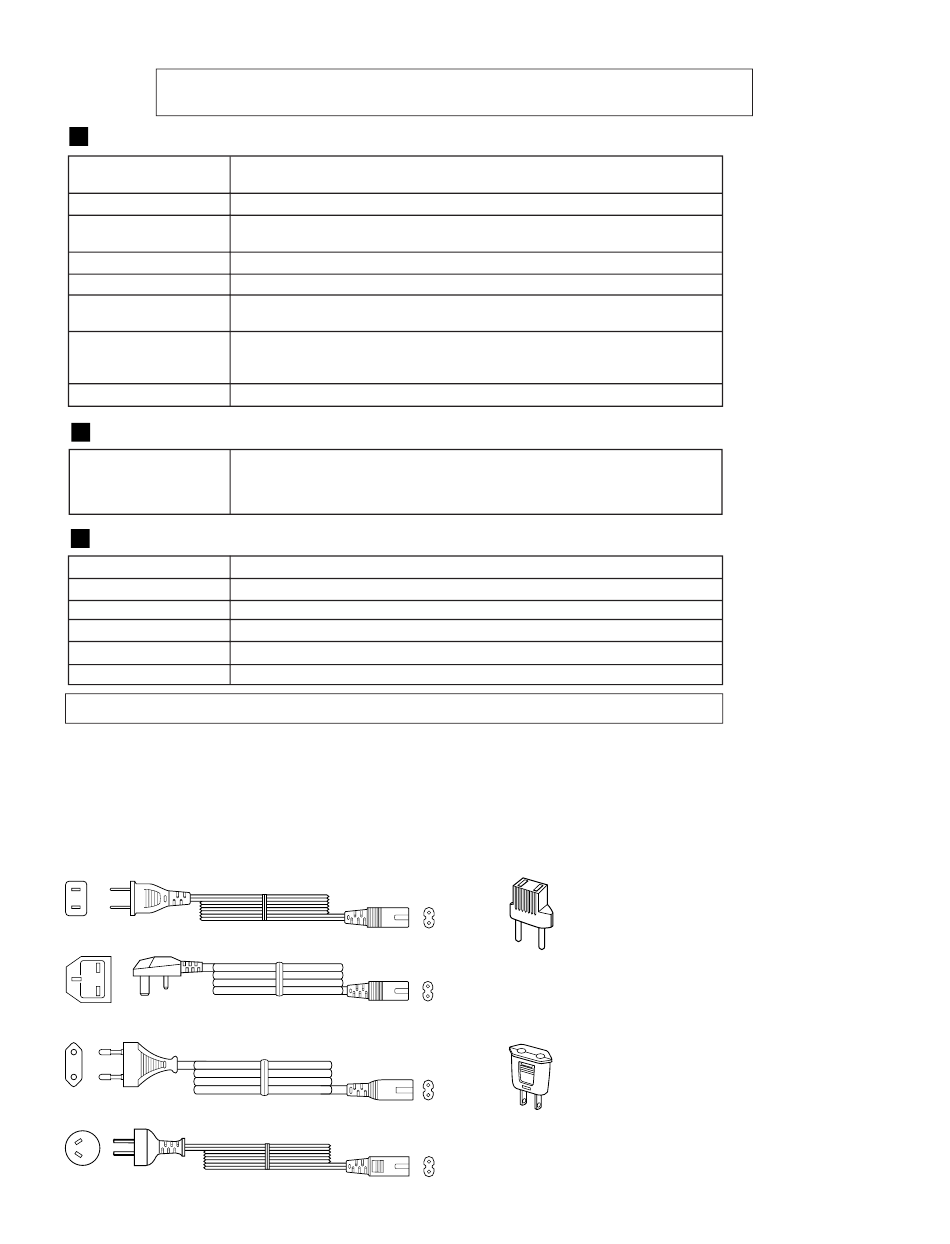

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

92L3404-074001
QACCB0012AW00
QACCE0007AW00
QACCL0002AW00/QACCL0008AW00
All manuals and user guides at all-guides.com

SPECIFICATIONS

VOLTAGE SELECTION

QPLGA0003AWZZ
QPLGA0004AWZZ
– 2 –
