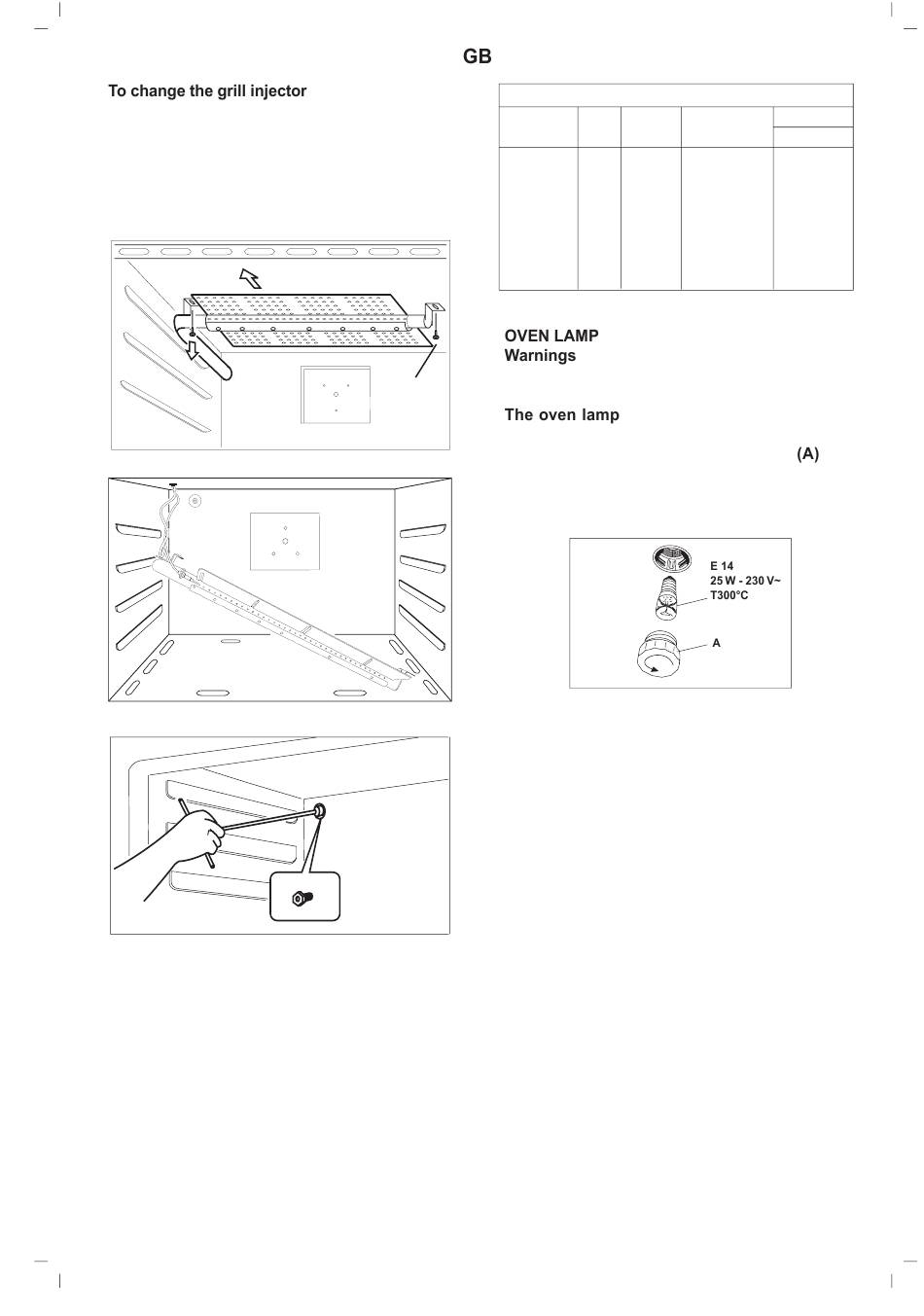

as follows: open the oven door, unscrew screw C
(see fig.F) and disassemble the grill burner (see
fig. F1). Change the injector (see fig.G).
Re-assemble everything in the opposite direction,
paying attention to place the burner in the right way
on its rear slot.
All manuals and user guides at all-guides.com
, it is necessary to act
C
.
FIG
F
.
FIG
F1
.
FIG
G
13
GENERAL INJECTORS TABLE
Kind of gas mbar Nozzle Burners
N°
BUTANE 28-30
87
G 30
66
PROPANE 37
50
G 31
96
100
66
Isolate the cooker from the electricity supply before
attempting to replace the oven lamp.
is of a special type designed to
withstand high temperatures. To replace it, proceed
as follows: remove the protective glass
replace the burnt-out bulb with one of the same
type (fig. 15).
Re-fit the protective glass.
Fig. 15
Power KW
max.
Rapid
3,00
Semi rapid
1,75
Auxiliary
1,00
Triple crown
3,80
Oven
4,30
Grill
2,00
and
