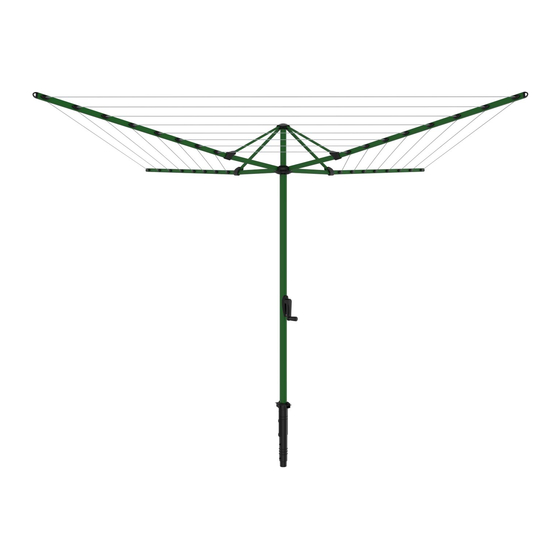

- Page 1 Rotary Hoist Clothesline IMPORTANT – READ THESE INSTRUCTIONS BEFORE INSTALLING & USING YOUR CLOTHESLINE Note the following for future reference Product Name: Date of Purchase: Place of Purchase:...
- Page 2 1. Carton Contents Item Description Item Description Head Assembly Ground Socket Cap Main Standard Ground Socket Spacer Handle Spigot Ground Socket Handle Ground Socket Locking Collar...
- Page 3 2. Choose Location and Install Ground Socket 1. Choose a clear space at least 15 feet (4.6m) in diameter. 2. Dig a hole 10” (250mm) wide by 26” (650mm) deep. 3. Place 8” (200mm) of coarse gravel into the hole for drainage. 4.
- Page 4 3. Main Standard/Head Assembly . Assemble the Handle Spigot (3) to the Handle Crank (4) on the 3. Slide the Head Assembly into the Main Standard Assembly until you Main Standard (2). hear a click. We suggest you lay the head assembly on the ground and gently slide the main standard into the head assembly.
- Page 5 4. Opening & Closing The Rotary Hoist 1. Manually push the Head Assembly up to the locked position to 2. Press the button of locking latch to close the Head Assembly. open the head assembly. Note: Similar to rain umbrella. NOTE: Do not collapse head assembly with laundry on...
- Page 6 5. Line Replacement 1. The lines are pre-wired in the factory and typically do not require tensioning. 2. If over time the lines do require tensioning, the rotary hoist must be in the open position. 3. Although the arms all look the same, only one arm is a tensioning arm. Each of the 8 lines will start and end on this arm. 4.
- Page 7 ® Breeze Dryer warrants to the purchaser of the product (the customer) that this Rotary Hoist Clothesline will be free from defects in workmanship and ® materials for 10 years, and the polycore line for 1 year, from the date of the purchase of the product. Breeze Dryer is not responsible for normal wear and tear, for products used commercially or for failures caused by accidents, abuse, alteration, modification, misuse, or improper care.
- Page 8 Rotary Hoist. Remember your Breeze Dryer Rotary Hoist can be easily folded and removed from the yard for winter storage or family functions. Making it unobtrusive in your yard.
