- Page 1 1000 lb. Adjustable Gantry Crane Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #52517 SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing a Strongway™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operating Warnings ....................... 5 Assembly Instructions .......................... 6 Operating Instructions .......................... 7 Maintenance ............................7 Parts Diagram ............................8 Parts List ..............................9 Replacement Parts .......................... -
Page 4: Intended Use

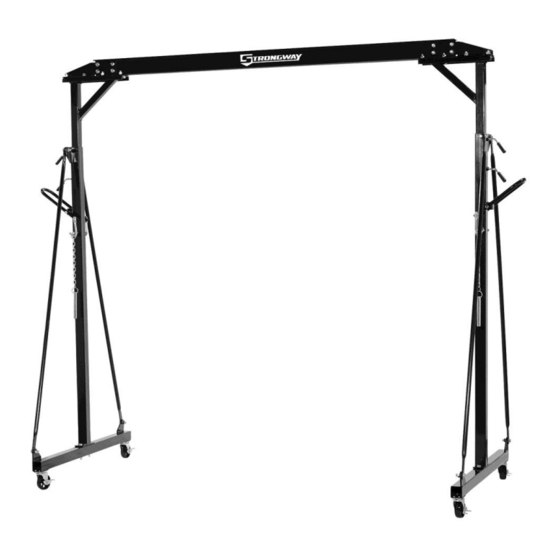

Intended Use The 1000 lb Adjustable Gantry Crane is ideal for shops where heavy level lifting is essential. Technical Specifications Property Specification Capacity .5 Ton 7’ 11” - 11’ 9” Adjustable Height Important Safety Information ⚠WARNING Read and understand all instructions. Failure to follow all instructions may result in serious injury or property damage. -
Page 5: Specific Operating Warnings
⚠WARNING PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating the crane. Do not use the crane while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury. ... -
Page 6: Assembly Instructions
Do not use to lift people or animals. Keep persons and property clear from under the load. Do not leave loads suspended when the gantry crane is unattended. Do not allow the load to swing or roll against the support members. ... -
Page 7: Operating Instructions
other pin. Attach the handle (#24) to the bracket on the side of the outer vertical post. Insert the bolt (#10) from the inside. Slip on the washer (#14) and spring washer (#15) and secure with a nut (#11). Make sure the pin (#18) holds the two ends. Repeat for the other post assembly. Step 7 Tighten all the bolts and nuts securely and make sure that the entire crane assembly is tight and secure. -
Page 8: Parts Diagram
Parts Diagram Page 8 of 11... -
Page 9: Parts List
Parts List Part# Description Qty. Part# Description Qty. Bolt M12 x 35 Bolt M8 x 16 12 Washer 8 Spring Washer 12 Spring Washer M8 Nut M12 Nut Bolt M14 x 40 Cross Beam 14 Washer Plate 14 Spring Washer Inner Vertical Post M14 Nut Support Tube... -
Page 10: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or '"Us'') warrants to the original purchaser only ("You'' or “Your”) that the Strongway product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase. - Page 11 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 11 of 11...
