WIRING

2.1

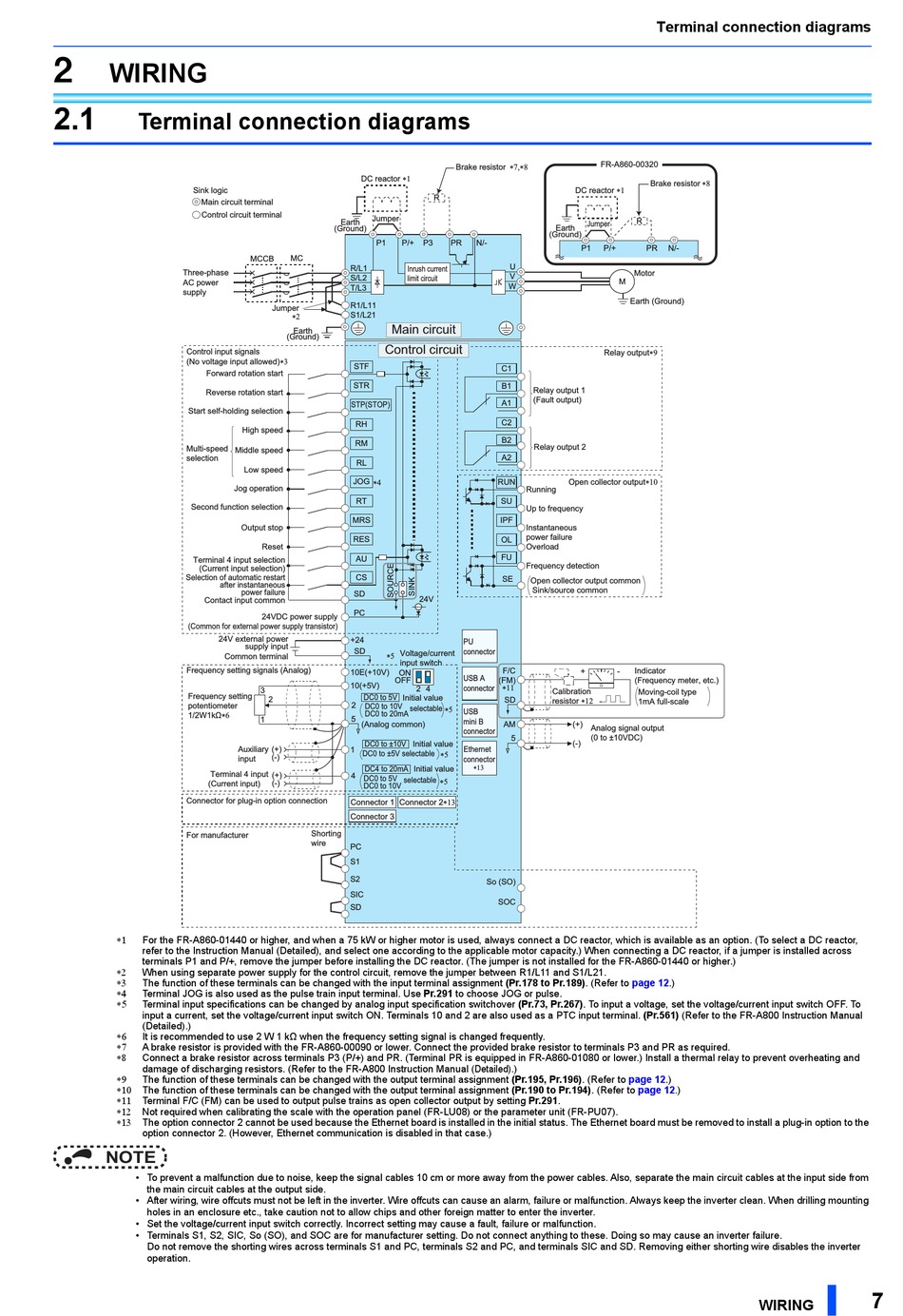

Terminal connection diagrams
Sink logic
Main circuit terminal
Control circuit terminal
Three-phase
AC power
supply
Control input signals
(No voltage input allowed)∗3
Forward rotation start
Reverse rotation start
Start self-holding selection
Multi-speed
selection
Second function selection
Terminal 4 input selection
(Current input selection)
Selection of automatic restart
after instantaneous
Contact input common
(Common for external power supply transistor)
24V external power
Frequency setting signals (Analog)
Frequency setting
potentiometer
1/2W1kΩ∗6
Terminal 4 input
(Current input)
Connector for plug-in option connection
For manufacturer

For the FR-A860-01440 or higher, and when a 75 kW or higher motor is used, always connect a DC reactor, which is available as an option. (To select a DC reactor,
refer to the Instruction Manual (Detailed), and select one according to the applicable motor capacity.) When connecting a DC reactor, if a jumper is installed across
terminals P1 and P/+, remove the jumper before installing the DC reactor. (The jumper is not installed for the FR-A860-01440 or higher.)

When using separate power supply for the control circuit, remove the jumper between R1/L11 and S1/L21.

The function of these terminals can be changed with the input terminal assignment (Pr.178 to Pr.189). (Refer to

Terminal JOG is also used as the pulse train input terminal. Use Pr.291 to choose JOG or pulse.

Terminal input specifications can be changed by analog input specification switchover (Pr.73, Pr.267). To input a voltage, set the voltage/current input switch OFF. To
input a current, set the voltage/current input switch ON. Terminals 10 and 2 are also used as a PTC input terminal. (Pr.561) (Refer to the FR-A800 Instruction Manual
(Detailed).)

It is recommended to use 2 W 1 kΩ when the frequency setting signal is changed frequently.

A brake resistor is provided with the FR-A860-00090 or lower. Connect the provided brake resistor to terminals P3 and PR as required.

Connect a brake resistor across terminals P3 (P/+) and PR. (Terminal PR is equipped in FR-A860-01080 or lower.) Install a thermal relay to prevent overheating and
damage of discharging resistors. (Refer to the FR-A800 Instruction Manual (Detailed).)

The function of these terminals can be changed with the output terminal assignment (Pr.195, Pr.196). (Refer to

The function of these terminals can be changed with the output terminal assignment (Pr.190 to Pr.194). (Refer to

Terminal F/C (FM) can be used to output pulse trains as open collector output by setting Pr.291.

Not required when calibrating the scale with the operation panel (FR-LU08) or the parameter unit (FR-PU07).

The option connector 2 cannot be used because the Ethernet board is installed in the initial status. The Ethernet board must be removed to install a plug-in option to the
option connector 2. (However, Ethernet communication is disabled in that case.)
NOTE
• To prevent a malfunction due to noise, keep the signal cables 10 cm or more away from the power cables. Also, separate the main circuit cables at the input side from
the main circuit cables at the output side.
• After wiring, wire offcuts must not be left in the inverter. Wire offcuts can cause an alarm, failure or malfunction. Always keep the inverter clean. When drilling mounting
holes in an enclosure etc., take caution not to allow chips and other foreign matter to enter the inverter.
• Set the voltage/current input switch correctly. Incorrect setting may cause a fault, failure or malfunction.
• Terminals S1, S2, SIC, So (SO), and SOC are for manufacturer setting. Do not connect anything to these. Doing so may cause an inverter failure.
Do not remove the shorting wires across terminals S1 and PC, terminals S2 and PC, and terminals SIC and SD. Removing either shorting wire disables the inverter
operation.
DC reactor ∗1
Jumper
Earth
(Ground)
P1
MC
MCCB
R/L1
S/L2
T/L3
R1/L11
Jumper
∗2 S1/L21
Main circuit
Earth
(Ground)
Control circuit
STF
STR
STP(STOP)
RH
High speed
RM
Middle speed
RL
Low speed
∗4
JOG
Jog operation
RT
MRS
Output stop
RES
Reset
AU
CS
power failure
SD
PC
24VDC power supply
+24
supply input
SD
∗5
Common terminal
10E(+10V)
OFF
10(+5V)
3
DC0 to 5V
2
2
DC0 to 10V selectable
DC0 to 20mA
5
1
(Analog common)
DC0 to ±10V
Auxiliary (+) 1
DC0 to ±5V selectable
(-)
input
DC4 to 20mA
(+)
4
DC0 to 5V
(-)
DC0 to 10V
Connector 1 Connector 2
Connector 3
Shorting
wire
PC
S1
S2
SIC
SD
Brake resistor ∗7,∗8
R
Earth
(Ground)
P/+ P3 PR N/-
U
Inrush current
V
limit circuit
W
C1
B1
Relay output 1
(Fault output)
A1
C2
B2
Relay output 2
A2
RUN Open collector output∗10
Running
SU
Up to frequency
IPF
Instantaneous
power failure
OL
Overload
FU
Frequency detection
SE
Open collector output common
Sink/source common
24V
PU
connector
Voltage/current
input switch
F/C
ON
USB A
(FM)
∗11
connector
2
4
Calibration
Initial value
resistor ∗12
SD
∗5
USB
mini B
AM
connector
5
Initial value
Ethernet
∗5
connector
∗13
Initial value
selectable ∗5
∗13
So (SO)
SOC
Terminal connection diagrams
FR-A860-00320
Brake resistor ∗8
DC reactor ∗1
R
Jumper
P1 P/+ PR N/-
Motor
M
Earth (Ground)
Relay output∗9
Indicator
+ -
(Frequency meter, etc.)
Moving-coil type
1mA full-scale
(+) Analog signal output
(0 to ±10VDC)
(-)
page 12.)
page 12.)
page 12.)
