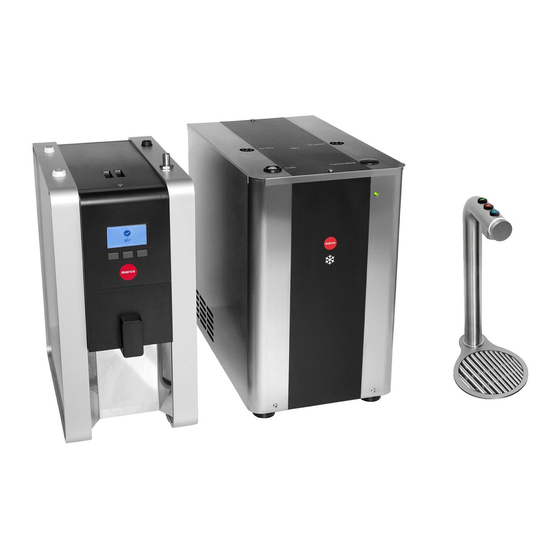

Marco FRIIA HCS Quick Start Manual

FRIIA HOT/COLD/SPARKLING
> Sleek, stylish font combining
hot/cold/sparkling water
> 3 or 8L boiler option
CHILLER/CARBONATOR
PRODUCT INFO SIZE
NAME DIMENSIONS
( D X W X H mm )
ORDER CODE
Chiller/Carbonator 436 x 259 x
1000861 455
PRODUCT INFO
NAME DIMENSIONS
( D X W X H mm )
ORDER CODE
MIX UC3
385 x 210 x 444
1000880
MIX UC8
385 x 210 x 617
1000887
FRIIA HCS FRIIA HCS PLUS
DIMENSIONS
NAME
INC. DRIP TRAY
ORDER CODE
( D X W X H mm )
3b Font
168 x 120 x 286
1000862
For more information visit www.marcobeveragesystems.com
BOILER
PERFORMANCE SPECS
CUPS
L/HR
/HR
30-40l/hr based on incoming 175-235
water temp of 15°C and (ΔT =
output water temp of 5-7° 10 °C)
SIZE PERFORMANCE SPECS
IMMEDIATE
DRAW OFF
3L
8L
FONT DIMS
DIMENSIONS
EXCL. DRIP TRAY
( D X W X H mm )
138 x 30 x 286
ORDER CODES
(Complete bundle)
> FRIIA HCS 1000865
> FRIIA HCS Plus
1000867
SYSTEM SET - UP
PLUMBING, ELECTRICAL AND TECHNICAL SPECS
POWER PLUMBING COMPRESSOR
@220v REQS POWER
180 W 3/4" BSP 1/8hp
L/HR CUPS/HR
28L 156
NAME
138
Fonts (all)
Chiller/
Carbonator
MIX UC3
MIX UC8
PLEASE
NOTE
TAP TO
COUNTER
( mm )
247
CHARGE REFRIGERANT
45g R290
PLUMBING & ELECTRICAL REQS
POWER PLUMBING
@220v REQS
2.8kW 3/4" BSP
PACKAGING
DIMENSIONS WEIGHT
(L x W x H mm)
290 x 570 x 215 1.65kg
500 x 320 x 520 31kg
450 x 290 x 540 11kg
450 x 290 x 700 14kg
FRIIA components (font, boiler
and chiller) are packed and
shipped in individual boxes.
FRIIA Sparkling variants
require food-grade CO
2
(not supplied by Marco).
