Gira Tunable White Plus Operating Instructions Manual

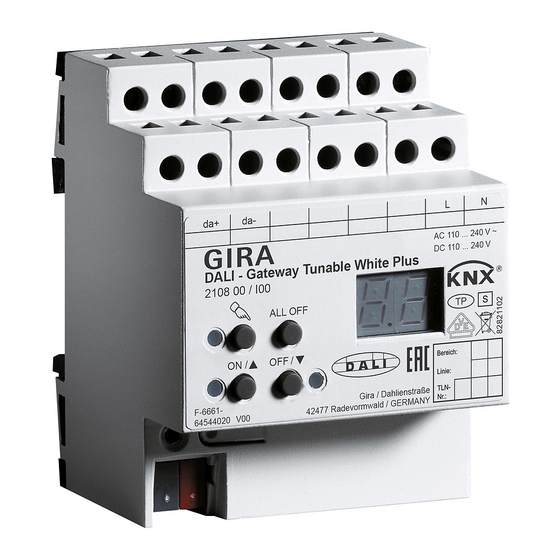

DALI gateway Tunable White Plus
DALI gateway Tunable White Plus
Order no.: 2108 00
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The DALI control voltage is a functional extra-low voltage (FELV). On installing, ensure safe
isolation between KNX and DALI.
These instructions are an integral part of the product, and must remain with the end customer.
2 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed tech-
nical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
The function of this device depends upon the software. Detailed information on loadable soft-
ware and attainable functionality as well as the software itself can be obtained from the manu-
facturer´s product database.
Planning, installation and commissioning of the device are carried out with the aid of KNX-certi-
fied software. Full functionality with KNX commissioning software version ETS3.0f onwards.
Intended use
– Controlling of luminaires and other applications with DALI operating device in KNX install-
ations e.g. electronic ballast
– Installation on DIN rail according to EN 60715 in distribution boxes
Product characteristics
– Control of up to 64 DALI devices in up to 32 groups
– Setting the colour temperature for luminaires with DALI Device Type 8 for Tunable White
in accordance with IEC 62386-209
– Suitable for operation in emergency lighting systems
– Individual, group or central addressing
– 16 light scenes
– Effect control for dynamic lighting effects or colour games
– Read out DALI device state via KNX, e.g. brightness or luminaire error
– Manual operation of the DALI groups
– Restraint
– Feedback of switching state and brightness value in bus and manual mode
– Collective feedback
– Central switching function
– Disabling function for each DALI group
– Separate ON and OFF delay
– Staircase lighting timer with run-on time
