MYAMPLIFIERS.COM
REPEATER

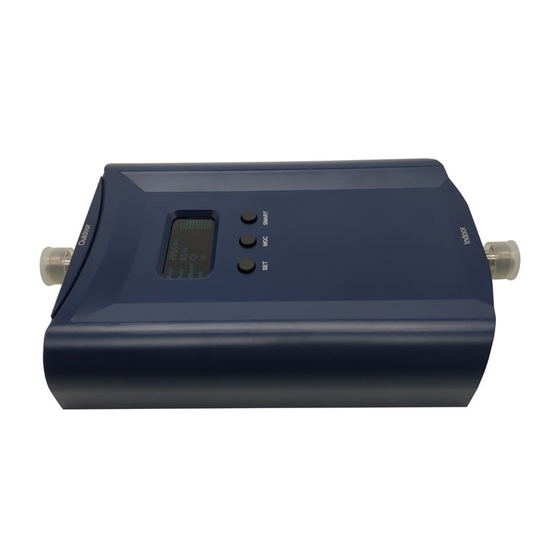

Nikrans NS-300-Multi
Calls/GSM / 3G / 4G/LTE
Coverage: 300 m²
Freq.: 900, 1800, 2100, 2600, 800 MHz
https://www.myamplifiers.com/repeater-161/
Nikrans NS-300-Multi
Free Support
3-YEAR warranty & service
30-DAY return policy
3-7 business day delivery
Need help?
Buyer's Guide
contact@myamplifiers.com
+(44)8000485044
(Sales)
Indoor Antennas /
Outdoor Antennas
SPECIFICATION
Indoor coverage: 300 m²
Up-link freq: 832-862, 880-915, 1710-1785,
1920-1980, 2500-2570MHz MHz
Down-link freq: 791-821, 925-960,
1805-1880, 2110-2170, 2620-2690MHz MHz
Up-link Gain: 60 dB
Down-link Gain: 60 dB
Power Output: Input AC100~264V, output
DC9V/3A
Working t °C: -25/+55
Humidity: 5 - 85%
Size (mm): 175*131*33mm
Booster Weight: 0.7 kg
dBm: 15 dBm
PACKAGE
Cables
Power supply
Safety for Human Health
Conformity to CE and RoHS standards
Full kit ready to use
Full duplex mode (improvement of outcoming
and incoming signal)
User Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nikrans NS-300-Multi
Summary of Contents for Nikrans NS-300-Multi
- Page 1 MYAMPLIFIERS.COM REPEATER Nikrans NS-300-Multi SPECIFICATION Indoor coverage: 300 m² Up-link freq: 832-862, 880-915, 1710-1785, 1920-1980, 2500-2570MHz MHz Down-link freq: 791-821, 925-960, 1805-1880, 2110-2170, 2620-2690MHz MHz Up-link Gain: 60 dB Down-link Gain: 60 dB Power Output: Input AC100~264V, output DC9V/3A Working t °C: -25/+55...
- Page 2 Europe. Such a device is a perfect option if you or your family use several providers or need to improve different types of connection. Working at 5 frequency bands, NS-300-Multi boosts GSM calls at 900MHz and 1800MHz, 3G Internet at 2100MHz and 900MHz, LTE 4G Internet at 800MHz, 2600MHz and 1800MHz.
- Page 3 INSTALLATION GUIDE Fix an outdoor antenna (outside the window, on the roof or wall of the building) and connect it to the booster box using a cable. Fix an indoor antenna on the ceiling and connect it to the booster box using a cable. Connect the power supply to the booster box and plug it into a power socket.
