EVOC P12 Series Manual

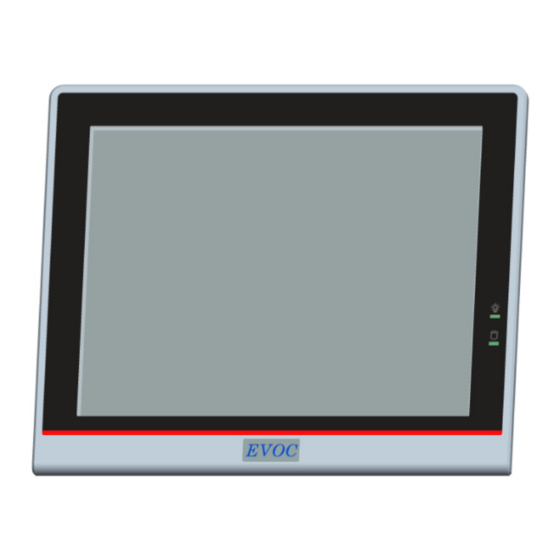

New generation 12-inch industrial panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P12 SERIES
New-generation 12-inch Industrial Panel PC
Version: C00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P12 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EVOC P12 Series

Summary of Contents for EVOC P12 Series

  • Page 1 P12 SERIES New-generation 12-inch Industrial Panel PC Version: C00...
  • Page 2 Please pay attention to the following instructions: Warning EVOC product can only be used according to the descriptions within the manual, including the contents and the relevant technical documents. If the products or components from other companies are required, please get the recommendation and grant from EVOC first.
  • Page 3 Trademarks EVOC is a registered trademark of EVOC Intelligent Technology Co., Ltd. Other product names mentioned herein are used for identification purposes only and may be trademark and/or registered trademarks of their respective companies.
  • Page 4 About this manual Scope of the Manual The manual is appropriate for EVOC P12 SERIES. Convention The term “the PC” or “the Product” within the manual usually stands for EVOC P12 SERIES. Instructions Safety instructions To avoid property losses or individual injury, please pay attention to the safety instructions within the manual.
  • Page 5 Safety Instructions General Safety Instructions Caution Before you have read related safety instructions, please do not expand your device. This device is compliant with related safety requirements. If you have any doubt about the effectiveness of installation in the planned environment, please contact your service representative.
  • Page 6 ESD Instructions The following label can be used to identify the modules that contain electrostatic sensitive devices: When operating the modules that contain electrostatic sensitive devices, please follow the instructions below:  When operating the modules that contain electrostatic sensitive devices, make sure to release static electricity on your body (for example, by touching a grounded object).

  • Page 7: Table Of Contents

    Contents 1. Product Introduction ......................1 1.1 Overview........................1 1.2 Specifications ......................2 1.3 Operating Instructions....................6 1.3.1 External Functions ..................6 1.3.2 Internal Layout....................8 1.3.3 Operation Control ...................9 1.4 Status LED ........................9 2. Application Scheme ......................10 2.1 Transportation ......................10 2.2 Storage ........................10 2.3 Opening the Box and Initial Examination...............10 2.3.1 Opening the Box ...................10 2.3.2 Markings for PC Identification ..............11 2.4 External Environment Conditions................11...
  • Page 8 5.2.4 Network Port....................17 5.2.5 HDMI Port ....................18 5.2.6 VGA Port ......................19 5.2.7 Display Port ....................19 5.2.8 GPIO Port .....................20 5.2.9 Standard DB9 Port ..................20 5.2.10 LCDB1 Backlight Control Port ..............22 6. Software Introduction ......................23 6.1 BPI Overview ......................24 6.2 FMI Overview......................26 6.3 eManager Software ....................26 6.3.1 Operating Environment.................27 6.3.2 Function ......................27...
  • Page 9 10.3.2 Recommended Dimensions Drawing for Hole Opening ......51 10.3.3 The dimensions drawing of the product with mounting bracket ....51 11. PC Maintenance ......................52 11.1 Removal/Installation of Hardware Assembly ............52 11.1.1 Carry out Maintenance................52 11.1.2 Preventative Maintenance ................52 11.1.3 Replacing Backup Battery................53 11.2 Installing the Drivers.....................54 12.

  • Page 10: Product Introduction

    Product Introduction 1. Product Introduction 1.1 Overview P12 series is a 12″ industrial panel PC, and supports multiple platforms, for example: Intel H110/C236, Intel Skylake-U SOC, Intel Bay Trail. It supports Windows 7(64bit), Windows 10, LINUX (2.6 kernel) operating systems.

  • Page 11: Specifications

    16-dot or above advance mode in the advanced positioning.(as shown below) Touch Screen  Operating temperature: With mechanical disks Operating: 0℃～45℃ Temperature With SSD disks Operating: 0℃～55℃ 　  Storage temperature: -20℃～+60℃  Humidity operating: 40℃ 95%RH (non-condensing) · 2 · P12 SERIES...
  • Page 12  GB/T 17626.6-2008 Conduction Immunity Level(2)  MTBF≥50000h Reliability  MTTR≤0.5h Safety Meets basic requirements for GB4943-2011 Protection Front panel meets IP65 grade Mechanical  Power-on Anti-vibration: Frequency 5-15Hz,amplitude 1mm, frequency 15-200Hz,acceleration 1.0g environmental adaptability  Anti-shock:10g acceleration,11ms duration P12 SERIES · 3 ·...
  • Page 13  DVI supports up  VGA supports up  VGA supports up  VGA supports up to 2560×1600 to 2560×1600 to 2048×1536 resolution. to 2560×1600  VGA supports up resolution. resolution. resolution. to 2048×1536 resolution. · 4 · P12 SERIES...
  • Page 14 (standby status) Power consumption of Power consumption of Power consumption of Power consumption of consumption the PC: 23.7W the PC: 22.7W the PC: 24.6W the PC: 43.6W (operating AIDA64) (operating AIDA64） (operating AIDA64) (operating AIDA64) P12 SERIES · 5 ·...

  • Page 15: Operating Instructions

    HDD bay Power indicator ANT1 With ECS-1840/ECS-1841 Diagram of upper IO ports of the PC Location Description Location Description Location Description On/Off button Reset button HDD indicator Power indicator LINE OUT LINE IN PS/2 USB1～4 ANT1/2 · 6 · P12 SERIES...
  • Page 16 Diagram of lower IO ports of the PC Location Description Location Description Location Description Power connector HDMI COM1～6 LAN1/2 USB5～8 GPIO Ground screw Note:For different configurations of the PC (with different motherboards),the external IO ports may be different,and the actual configuration prevails. P12 SERIES · 7 ·...

  • Page 17: Internal Layout

    Product Introduction 1.3.2 Internal Layout (With ECS-1837/ECS-1838) (With ECS-1840/ECS-1841) Internal Layout of the PC Location Description Location Description Location Description Universal P12 display part Front IO board quasi-system Motherboard HDD module Rear IO board · 8 · P12 SERIES...

  • Page 18: Operation Control

    1.4 Status LED Display Meaning Display Disconnected from power Green PC is operating POWER PC status indication Disable LCD screen backlight Orange and touch screen Not being accessed Indicating access to hard drive Yellow Being accessed P12 SERIES · 9 ·...

  • Page 19: Application Scheme

    2.3 Opening the Box and Initial Examination 2.3.1 Opening the Box Please pay attention to the following issues when opening the box:  Do not discard the original packing material.Please keep the original packing material for re-transportation. · 10 · P12 SERIES...

  • Page 20: Markings For Pc Identification

     Please do not block the ventilation hole of the PC(If have).  The installation position requirement for the PC should be always observed.  The connected or installed I/O should not generate reverse voltage of more than 0.5V inside the PC. P12 SERIES · 11 ·...

  • Page 21: Installing The Product

    Step 2: Hang the hooks on the back of the machine, then tighten the long screws, which press fimly against the panel. Note: The installation requirements are as the following table · 12 · P12 SERIES...

  • Page 22: Vesa Standard Supporting Arm Installation

    Note:During the installation, use the screws that come with the PC or select screws according to the user manual. Warning The weight bearing capacity of VESA supporting arm should be at least twice the weight of the PC. P12 SERIES · 13 ·...

  • Page 23: Pc Connection

    PC or the central With ECS-1837/ECS-1838 grounding busbar on the device. The minimum cross section area of the cable shall be no less than 2.5mm2, grounding resistance shall be no more than 0.1Ω. With ECS-1840/ECS-1841 · 14 · P12 SERIES...

  • Page 24: Connecting The Device To Power

    ① shown in the picture. With ECS-1840/ECS-1841 Danger Disconnect the power source and data cable during a lightning storm. Attention The PC is completely isolated from the power supply only by disconnecting the power connector. P12 SERIES · 15 ·...

  • Page 25: Debugging

    USB3.0 ports, the port, the other USB3.0 ports, port, the other five other four are seven are USB2.0 USB1～USB4 are are USB2.0 ports. USB2.0 ports. ports. USB2.0 ports. 1. USB2.0 standard port Signal Name +5V_USB USB_DATA- USB_DATA+ · 16 · P12 SERIES...

  • Page 26: Ps/2 Keyboard/Mouse Port

    It provides up to four 10/100/1000Mbps Ethernet ports, standard RJ45 connectors. ACTLED and LILED are the LEDs on both sides of the Ethernet port, which respectively indicates the activity status and the speed of LAN. Please refer to the status description for each LED: P12 SERIES · 17 ·...

  • Page 27: Hdmi Port

    TMDS DATA2 Shield TMDS DATA2- TMDS DATA1+ TMDS DATA1 Shield TMDS DATA1- TMDS DATA0+ TMDS DATA0 Shield TMDS DATA0- TMDS CLK+ TMDS CLK Shield TMDS CLK- HDMI1 RSVD(NC on device) DDC/CEC Ground Hot Plug Detect · 18 · P12 SERIES...

  • Page 28: Vga Port

    The product provides one standard DB15 VGA port. Its pin definition is as follows: Signal Name Signal Name Green Blue DDCDATA HSYNC VSYNC DDCCLK 5.2.7 Display Port 1. LVDS1 port definition(DF20G-20DP-1V 1.0mm) Signal Name Signal Name LVDS_D0+ LVDS_D0- LVDS_D1+ LVDS_D1- LVDS_D2+ LVDS_D2- LVDSA_CLK+ LVDSA_CLK- LVDS1 LVDS_D3+ LVDS_D3- P12 SERIES · 19 ·...

  • Page 29: Gpio Port

    0-5V. 5.2.9 Standard DB9 Port With ECS-1837/ECS-1838 With ECS-1840/ECS-1841 Provides up to 4 COM ports, and supports Provides 6 COM ports, and supports RS-232/RS-422/RS-485 modes selection, RS-232/422/485 modes selection, RS-232 by default RS-232 by default · 20 · P12 SERIES...
  • Page 30 It can be selected via jumper on the I/O board, and please refer to the above table for its pin definition.The detailed configuration is as follows: Pin Setup Mode Selection RS-232 Terminator COM1 COM2COM3COM4 RS-422 RS-485 (Default) 120 JP10 5-6,7-8 JP11 1-3,2-4 3-5,4-6 3-5,4-6 JP1～JP12 JP12 1-3,2-4 3-5,4-6 3-5,4-6 P12 SERIES · 21 ·...

  • Page 31: Lcdb1 Backlight Control Port

    BIOS. (For details of ECS-1840, please refer to the Chapter 12.3.3; for details of ECS-1841, please refer to the Chapter 12.3.4) 5.2.10 LCDB1 Backlight Control Port Signal Name VCC_LCDBKLT(+12V) LCD_BKLTCTL LCDB1 LCD_BKLTEN (pitch：2.0mm JST) · 22 · P12 SERIES...

  • Page 32: Software Introduction

    All supporting BPI motherboards and unified interface for software to PCs of EVOC company access hardware. platform management All, the motherboards/complete PCs application software developed that support BPI can run eManager, based on BPI, which enables...

  • Page 33: Bpi Overview

    BPI has greatly sped up the product development and reduced the maintenance cost. The BPI architecture is shown in the Figure 1 below: Figure 1 BPI architecture · 24 · P12 SERIES...
  • Page 34 Traditional WDT and GPIO programming are closely related to the hardware with complicated test and debug process and software of different platforms; however, the software developed by BPI only requires one set of the maintenance software. 4) Low Cost P12 SERIES · 25 ·...

  • Page 35: Fmi Overview

    “Start”→“Program”→“EVOC” →“evoc_bpi_x”. 6.3 eManager Software eManager software is a device management platform software developed by EVOC. eManager software can be used for system operation abnormality monitoring, setup of GPIO input/output mode and electrical level, real-time monitoring of temperature, fan and voltage status.

  • Page 36: Operating Environment

    BPI3.0 installation packet we provided for installation and boot it up. (Operation of win7 and above operating system needs administrator authority). 6.3.2 Function 1. Welcome Interface After the software is opened, the following welcome interface will appear: P12 SERIES · 27 ·...
  • Page 37 Function: Monitors whether the system can be normally operated, and carry out reset for abnormality. When abnormality occurs to the system, Watchdog cannot be fed automatically. After counting-down is finished, the system will restart, and recover from system error. · 28 · P12 SERIES...
  • Page 38 Using method:GPIO is not enabled by default,to avoid the conflict if there is also GPIO setup in the user program.GPIO supports up to 64Pin display.When it is more than 8Pin,there will be scroll bar on the interface.GPIO input/output mode can be set up in the P12 SERIES · 29 ·...
  • Page 39 The effect of hardware detection is shown in the figure above. Method: After the software switches to hardware detection interface,it will automatiocally acquire temperature,fan speed,voltage and other information,refreshing at a 2S interval. Function:real-time acquisition of hardware operating status. · 30 · P12 SERIES...

  • Page 40: Firmware Management

    Using method:Select HDD in the dropdown list,then SMART information related to HDD performance will be displayed in the list box. Function:To check smart information related to HDD performance,which helps predict service life of HDD,and avoid data loss caused by damage to HDD. P12 SERIES · 31 ·...
  • Page 41 The user can directly use eManager software for management of the device.If users intend to program software by themselves.Please refer to the complete routine of VB,VC,C++Builder,Delphi and BPI Programming Interface Operation manual in the enclosed CD. · 32 · P12 SERIES...

  • Page 42: Bios Setup

    Please use the internal default value of UEFI to restore the system. Our company is constantly researching and updating UEFI, its setup interface may be a bit different. The figure below is for reference only; it may be different from your UEFI setting in use. P12 SERIES · 33 ·...

  • Page 43: Basic Function Setup

    7.3.1 Serial Function Setup Different models use different IO plates, with different quantity of COM ports and same setup method.  Advanced  Super IO Configuration This item provides COM ports(COM1～4) and Parallel port of this platform · 34 · P12 SERIES...
  • Page 44  Serial Port Control switch of current COM port.  Device Settings To indicate current resource configuration of COM ports.  COMA RS485 AUTO Flow Automatic flow control switch of COM port,in 232 mode,Disable must be select. P12 SERIES · 35 ·...

  • Page 45: Expansion Installation

    Steps to open the PC With ECS-1837/1838 With ECS-1840/1841 Remove the four screws shown in the Remove the four screws shown in the picture,to separate the display and picture,to separate the display and chassis. chassis. · 36 · P12 SERIES...

  • Page 46: Hdd Expansion

    HDD handle,to pull out the whole HDD chassis. bracket. To loosen the four screws fixing the To loosen the four screws fixing the HDD,and take out the HDD HDD. P12 SERIES · 37 ·...
  • Page 47 Close the chassis and the display, and install four screws shown in the picture. Note: The PS/2 port side of the chassis should face the top of display screen. · 38 · P12 SERIES...
  • Page 48 Expansion Installation P12 SERIES · 39 ·...

  • Page 49: Installing/Removing The Minipci-E.m-Sata

    With ECS-1837/1838 With ECS-1840/1841 Remove the four screws shown in the Remove the four screws shown in the picture,to separate the display and picture,to separate the display and chassis. chassis. Take out MiniPCI-E.M-SATA Take out MiniPCI-E.M-SATA · 40 · P12 SERIES...
  • Page 50 Install four screws shown in the picture. Note: The HDD side of the chassis Note: The PS/2 port side of the chassis should face the top of display screen. should face the top of display screen. P12 SERIES · 41 ·...

  • Page 51: S Sim Card Expansion

    Remove the four screws shown in the picture,to separate the display and picture,to separate the display and chassis. chassis. Take out M-SATA,and then take out SIM Take out M-SATA,and then take out card SIM card · 42 · P12 SERIES...
  • Page 52 Install four screws shown in the picture. Close the chassis and the display, and Note: The PS/2 port side of the chassis Install four screws shown in the picture. should face the top of display screen. P12 SERIES · 43 ·...
  • Page 53 Expansion Installation · 44 · P12 SERIES...

  • Page 54: Technical Parameters

    Allowed maximum power Maximum total +3.3V +12V -12V USB2.0/ Strong 500mA/ 10W (applicable 3.0 device current 800mA USB devices) Each slot 1.5A 1.5A 0.3A 0.2A 8 W (for whole MiniPCIE Total 1.5A 1.5A 0.3A 0.2A P12 SERIES · 45 ·...

  • Page 55: Dimensions Drawing

    Product Installation Dimensions Drawing Recommended Dimensions Drawing for Hole Opening Dimensions drawing of the product with mounting bracket. Note: The unit in the dimensions drawing is usually millimeter. 10.2 Product Outline Dimensions Drawing 287.6 With ECS-1837 · 46 · P12 SERIES...
  • Page 56 Dimensions Drawing 287.6 With ECS-1838 79.6 287.6 With ECS-1840 P12 SERIES · 47 ·...
  • Page 57 Dimensions Drawing 90.9 287.6 With ECS-1841 Unit:mm · 48 · P12 SERIES...

  • Page 58: Installation Dimensions Drawing

    Dimensions Drawing 10.3 Installation Dimensions Drawing 10.3.1 Product Installation Dimensions Drawing 4XM4 With ECS-1837 271.6 4XM4 287.6 With ECS-1838 P12 SERIES · 49 ·...
  • Page 59 Dimensions Drawing 79.6 271.6 4XM4 287.6 With ECS-1840 90.9 271.6 4XM4 287.6 With ECS-1841 Unit:mm · 50 · P12 SERIES...

  • Page 60: Recommended Dimensions Drawing For Hole Opening

    (VESA bracket,to be purchased by customers themselves,and does not come with the product) Tighten the screws on the VESA bracket: truss head screw M4×8 S3 N/GB/T 9074.1-2002/Nickel-plated /Nylok /with flat washer, quantity: four 4X 4.5 Unit:mm P12 SERIES · 51 ·...

  • Page 61: Pc Maintenance

    To maintain relatively high system availability, it is recommended to preventatively replace the quick-wear parts. The table below give the time interval for replacement: Assembly Time Interval for Replacement 3 years CMOS backup battery 5 years · 52 · P12 SERIES...

  • Page 62: Replacing Backup Battery

    3. Disconnect the PC from power source. Replacing Battery Steps to replace battery Loosen the four screws on the top cover, and open the top cover. Pull out the battery connection cable as shown in the picutre, and remove the battery. P12 SERIES · 53 ·...

  • Page 63: Installing The Drivers

    When driver program cannot be installed, for example a yellow question mark or exclamation mark appears, it is recommended to install latest patch package of corresponding operating system, or directly install the operating system of latest release version before installing the driver program. · 54 · P12 SERIES...

  • Page 64: Appendix

    Check whether the mouse cable is connected to the system unit. If mouse adapter or mouse extension cord is connected. used, the connector should also be examined. P12 SERIES · 55 ·...

  • Page 65: Common Alarm Information Analysis And Solution

    Award BIOS motherboard. During Power On The motherboard or complete PC is not Self Test (POST), the screen displays error connected to PS/2 or USB keyboard, and information: “Keyboard error or no keyboard keyboard needs connected present”. properly. · 56 · P12 SERIES...

  • Page 66: Esd Guideline

    ESD current may lead to potential problem of the module, or damage to the module which is not serious for the moment but may cause fault during operation. P12 SERIES · 57 ·...
  • Page 67 In this way, the dissipated electricity will not affect the ESD-sensitive device. Before handling the module, dissipate the electrostatic charges on your body. They can be dissipated by contacting grounded metal part. Make sure to use grounded measuring instrument. · 58 · P12 SERIES...

  • Page 68: Bios Setup

    Choose this option and set the current time by < + > / < - >, which is displayed in format of hour/minute/second. Reasonable range for each option is: Hour (00-23), Minute (00-59), Second (00-59). P12 SERIES · 59 ·...
  • Page 69 BIOS Setup (Applicable to ECS-1837 motherboard)  Advanced  Super IO Configuration  Serial Port Configuration · 60 · P12 SERIES...
  • Page 70  UART RS485/422 AUTO Flow Control [Disable] Select Enable Automatic Flow Control, however, in 232 mode, Disable must be select.  Hardware Monitor Display the currently detected hardware monitoring information, such as voltage, temperature, etc. P12 SERIES · 61 ·...
  • Page 71 Intel virtualization technology,which is needed when virtual PC or certain Linux system is used.  Power Technology To enable or disable power management function of CPU.Only when Customer is selected,EIST,Turbo Mode and other options will be displayed. · 62 · P12 SERIES...
  • Page 72  CPU C state Report C state report OS switch of the CPU.  Max CPU C-state To select C state of CPU,C7 is most energy saving,and C1 is most power consuming,and so on.  IDE Configuration P12 SERIES · 63 ·...
  • Page 73 SATA PORT is only for single board or MEC family product testing.  Miscellaneous Configuration  OS Selection When operating system is installed and used,this optiong needs to be set correctly.For example,if Windows 7 is installed or used,this option must be set to Windows · 64 · P12 SERIES...
  • Page 74 If this option is used for operating system that does not have USB2.0 driver, this option enabled means that the system will switch to BIOS EHCI.  USB Mass Storage Drive Support SB mass storage USB support option. It is ENABLED by default. P12 SERIES · 65 ·...
  • Page 75  Device reset time-out Device reset time-out is 20S[10/20/30/40] by default.  Device power-up delay Device power-up delay [AUTO/MANUAL].  EVOC Features  FMI Configuration This option is the general switch of FMI function in BPI3.0.  Time Record Support This option is a switch for recording duration and times of power-on/off in BPI3.0.
  • Page 76 Enabled, can the One-Button-Recovery function take effect.  Chipset  North Bridge It displays the capacity of currently installed memory for the system, memory type, and other related information, which is dynamically detected information. P12 SERIES · 67 ·...
  • Page 77 Blu-ray disk is played, this option must be enabled.  DVMT Pre-Allocated This option is used to set DVMT 5.0 pre-allocated video card capacity, i.e., the capacity of IGD dedicated video memory. · 68 · P12 SERIES...
  • Page 78  LCD Control  Primary IGFX Boot Display Select display device [AUTO/VGA/HDMI/LVDS].  LCD Panel Type To set the resolution rate of output.  Panel Color Depth To set up the resolution bit of output. P12 SERIES · 69 ·...
  • Page 79 Last State:The PC restores to the same status before AC power is disconnected.  LAN1 or MPCIE Function Select LAN1 and MPCIE are alternative functions, LAN as the default.  4G or WIFI Function Select 4G and WIFI are alternative functions, 4G as the default. · 70 · P12 SERIES...
  • Page 80 BIOS Setup (Applicable to ECS-1837 motherboard)  Security  Administrator Password This option is used to set administrator password.  User Password This option is used to set user password.  Boot P12 SERIES · 71 ·...
  • Page 81 This option is used to save changes and exit Setup program. If reboot is needed for the changes to take effect, automatic reboot will be carried out.  Discard Changes and Exit This option is used to discard changes and exit Setup program. · 72 · P12 SERIES...

  • Page 82: Ecs-1838 Basic Function Setting For Uefi

    Choose this option and set the current time by < + > / < - >, which is displayed in format of hour/minute/second. Reasonable range for each option is: Hour (00-23), Minute (00-59), Second (00-59). P12 SERIES · 73 ·...
  • Page 83 BIOS Setup (Applicable to ECS-1838 motherboard)  Advanced  Super IO Configuration This item provides COM ports (COM1～4) of this platform.  Serial Port 1～4 · 74 · P12 SERIES...
  • Page 84  Serial Port Control switch of current COM port.  Device Settings To indicate current resource configuration of COM ports.  COMA RS485 AUTO Flow Automatic flow control switch of COM port.  HW Monitor P12 SERIES · 75 ·...
  • Page 85 This option displays related information and functions of CPU. Please note that the CPU specifications including models, working frequency, number of processor cores, ultra-threading technology and virtualization technology are related to the CPU installed; different families of CPUs will display different information. · 76 · P12 SERIES...
  • Page 86 Control switch of adjacent cache line prefetch.  Boot performance mode Boot performance mode selection.  Intel(R) SpeedStep(tm) Intel SpeedStep control switch.  CPU C states Switch for CPU C states, a status switch for energy saving and power consumption reduction. P12 SERIES · 77 ·...
  • Page 87  SATA Controller(s) To enable or disable SATA Controller.  SATA Mode Selection SATA mode selection. This platform provides IDE and AHCI modes.  Serial ATA Port 0～3 The control switch used by SATA port. · 78 · P12 SERIES...
  • Page 88 BIOS Setup (Applicable to ECS-1838 motherboard)  CSM Configuration Configuration related to Legacy device compatibility.  USB Configuration This option provides configuration about USB controller. P12 SERIES · 79 ·...
  • Page 89  EVOC Features This option provides configuration of EVOC special functions (“FMI” for short).  FMI Configuration The general switch of FMI function, used to control whether EVOC Features are supported.  Time Record Support This option is used to record the operation time of motherboard.
  • Page 90 This option provides EVOC special boot order configuration.  Special Boot Order Configuration The control switch of EVOC special boot order function. Only when this option is set to “Enabled”, can the boot order be configured.  HDD eSMART Configuration To enable or disable monitoring of health status of SATA HDD device, which is a dynamic detection option.
  • Page 91 BIOS Setup (Applicable to ECS-1838 motherboard)  Chipset This option provides configuration about platform chipset.  System Agent(SA) Configuration This option provides configuration of System Agent function. · 82 · P12 SERIES...
  • Page 92 To set up shared initial value of video memory.  DVMT Total Gfx Mem To set up the maximum value of share video memory.  PAVP Enable Intel intelligent audio technology.  LCD Control Display control option. P12 SERIES · 83 ·...
  • Page 93  LCD Control  Primary IGFX Boot Display To set first display output.  LCD Panel Type To set resolution of the output.  Active LFP To set enabling/disabling of VGA output.  Memory Configuration · 84 · P12 SERIES...
  • Page 94 AC. Power Off: the system stays at power-off status; Power On: the system is automatically powered on; Last State: the system return to the status before power disconnection.  USB Configuration This option provides configuration related to USB port. P12 SERIES · 85 ·...
  • Page 95 When this function is Enabled, device can be quickly enumerated.  USB Disable Per Port Enable or disable configuration of USB Port by USB Port method.  HD Audio Configuration This option provides configuration related to audio card. · 86 · P12 SERIES...
  • Page 96 This option is used to set up user password. Note: If only the user password is set, administrator authority can be obtained after the password is keyed in when entering Setup program. At this time, empty password is ineffective. P12 SERIES · 87 ·...
  • Page 97 Boot mode selection switch, used to enable or disable Quiet Boot function.  Boot Option Priorities This option is used to configure priorities for system boot. Among them, #1 represents highest priority, #n represents lowest priority.  Fast Boot To enable or disable Fast Boot function. · 88 · P12 SERIES...
  • Page 98  Save Changes and Reset This option is used to save changes and reset.  Discard Changes and Reset This option is used to discard changes and reset.  Restore Defualts This option is used to restore defaults. P12 SERIES · 89 ·...

  • Page 99: Ecs-1840 Basic Function Setting For Uefi

    Choose this option and set the current time by < + > / < - >, which is displayed in format of hour/minute/second. Reasonable range for each option is: Hour (00-23), Minute (00-59), Second (00-59). · 90 · P12 SERIES...
  • Page 100 BIOS Setup (Applicable to ECS-1840 motherboard)  Advanced  Super IO Configuration P12 SERIES · 91 ·...
  • Page 101  COMA Mode Select COM mode selection  COMA RUD Mode RUD mode selection of COM ports.  UART RS485/422 AUTO Flow Control [Disable] Select Enable Automatic Flow Control, however, in 232 mode, Disable must be select. · 92 · P12 SERIES...
  • Page 102  CPU FAN CPU FAN Speed  VCORE CPU Core voltage.  VCC3.3/VCC5/VCC12 To detect and display working voltage values of various primary voltages of ATX power supply.  VBAT CMOS battery voltage.  CPU Configuration P12 SERIES · 93 ·...
  • Page 103 Intel virtualization technology,which is needed when virtual PC or certain Linux system is used.  Power Technology To enable or disable power management function of CPU.Only when Customer is selected,EIST,Turbo Mode and other options will be displayed.  PPM Configuration · 94 · P12 SERIES...
  • Page 104 Switch of SATA Port,when set to Disabled,the corresponding SATA port cannot be used.  SATA Port1 Fuction Select Please select corresponding interface mode for SATA interface. The default is MSATA, please do not change, otherwise the HDD cannot be used P12 SERIES · 95 ·...
  • Page 105 7,otherwise blue screen would be occur when the system is intalled,or the installed system cannot be booted. Note:Android option is only used for testing.Due to lack of corresponding driver,the cureent Android system is not fully supported.  USB Configuration · 96 · P12 SERIES...
  • Page 106 USB mass storage USB support option. It is ENABLED by default.  USB transfer time-out USB transfer time-out is 20S[1/5/10/20] by default.  Device reset time-out Device reset time-out is 20S[10/20/30/40] by default.  Device power-up delay Device power-up delay [AUTO/MANUAL]. P12 SERIES · 97 ·...
  • Page 107 BIOS Setup (Applicable to ECS-1840 motherboard)  EVOC Features  FMI Configuration This option is the general switch of FMI function in BPI3.0.  Time Record Support This option is a switch for recording duration and times of power-on/off in BPI3.0.Only when the option is Enabled,can this function be used in BPI3.0,otherwise...
  • Page 108 BIOS Setup (Applicable to ECS-1840 motherboard)  Chipset  North Bridge It displays the capacity of currently installed memory for the system,memory type,and other related information,which is dynamically detected information. P12 SERIES · 99 ·...
  • Page 109 This option is audio, video protection control switch. When this technology is enabled, the whole transmission and playing process of audio and video are protected. Please note that if Blue-ray disk is played, this option must be enabled.  DVMT Pre-Allocated · 100 · P12 SERIES...
  • Page 110  LCD Control  Primary IGFX Boot Display Select display device [AUTO/VGA/HDMI/LVDS].  LCD Panel Type To set the resolution rate of output.  Panel Color Depth To set up the resolution bit of output. P12 SERIES · 101 ·...
  • Page 111 Three options POWER OFF:After AC power is disconnected, the PC will not be booted when connected to power supply. POWER ON:The PC is booted as soon as AC power is connected. Last State:The PC restores to the same status before AC power is disconnected.  Security · 102 · P12 SERIES...
  • Page 112 Boot mode selection switch, which is used to enable or disable Quiet Boot function.  Fast Boot  Boot Option Priorities This option is used to configure the system booting priorities. #1 represents the highest priorities while #n represents the lowest priorities. P12 SERIES · 103 ·...
  • Page 113 This option is used to save changes and exit Setup program. If reboot is needed for the changes to take effect, automatic reboot will be carried out.  Discard Changes and Exit This option is used to discard changes and exit Setup program. · 104 · P12 SERIES...

  • Page 114: Ecs-1841 Basic Function Setting For Uefi

    Choose this option and set the current time by < + > / < - >, which is displayed in format of hour/minute/second. Reasonable range for each option is: Hour (00-23), Minute (00-59), Second (00-59). P12 SERIES · 105 ·...
  • Page 115  Advanced  CPU Configuration To display information related to CPU.Please note that the Socket and Speed of CPU are related to the CPU installed.Different information will be display for different families or models of CPU. · 106 · P12 SERIES...
  • Page 116 The control switch of Intel Virtualization Technology function.  Active Processor Cores To configure number of active processor cores.  Power & Performance This item displays power consumption information and performance setup related to CPU. P12 SERIES · 107 ·...
  • Page 117 Intel SpeedStep control switch.  CPU C states Switch for CPU C states, a status switch for energy saving and power consumption reduction.  Super IO Configuration This item provides COM ports (COM1～4) of this platform. · 108 · P12 SERIES...
  • Page 118 Control switch of current COM port.  Device Settings To indicate current resource configuration of COM ports.  COMA Mode Select COM mode selection  COMA RS485 AUTO Flow Automatic flow control switch of COM port. P12 SERIES · 109 ·...
  • Page 119  COM5～COM8 Configuration and COM9～COM12 Configuration  Serial Port Control switch of current COM port.  Device Settings To indicate current resource configuration of COM ports.,Reset Required.Displays that the COM port hardware is not connected.  HW Monitor · 110 · P12 SERIES...
  • Page 120 To detect and display working voltage values of various primary voltages of ATX power supply.  VBAT To detect and display voltage value of current motherboard battery.  CSM Configuration Configuration related to Legacy device compatibility. P12 SERIES · 111 ·...
  • Page 121 USB, such as DOS. When it is set to Disabled, the legacy devices cannot be used in the OS that does not support USB. Note: USB can be used in EFI application, such as in Shell. · 112 · P12 SERIES...
  • Page 122  EVOC Features This option provides configuration of EVOC special functions (“FMI” for hort).  FMI Configuration The general switch of FMI function, used to control whether EVOC Features are supported.  Time Record Support This option is used to record the operation time of motherboard.
  • Page 123 BIOS Setup (Applicable to ECS-1841motherboard)  Special Boot Order Configuration The control switch of EVOC special boot order function. Only when this option is set to “Enabled”, can the boot order be configured.  Chipset This option provides configuration about platform chipset.
  • Page 124 BIOS Setup (Applicable to ECS-1841 motherboard)  System Agent(SA) Configuration This option provides configuration of System Agent function.  Memory Configuration  Maximum Memory Frequency Maximum memory frequency setup.  ECC Support Memory ECC support setup. P12 SERIES · 115 ·...
  • Page 125 To set up video memory capacity of integrated graphics card.  DVMT Pre-Allocated To set up shared initial value of video memory.  DVMT Total Gfx Mem To set up the maximum value of share video memory.  LCD Control Display control option. · 116 · P12 SERIES...
  • Page 126  LCD Control  Primary IGFX Boot Display To set first display output.  LCD Panel Type To set resolution of the output.  Panel Color Depth Set the bit number of LCD screen.  Graphics Configuration P12 SERIES · 117 ·...
  • Page 127 Enable or disable PEG Port  Max Link Speed connection speed selection.  PEG Port Feature Configuration  Detect Non-Compliance Devcie Detects non-compatible equipment.  PCH-IO Configuration This option provides function configuration of Intel PCH chip. · 118 · P12 SERIES...
  • Page 128 This option shows the information of HDD connected to the motherboard. It dynamically detects whether there are SATA devices on the motherboard. If a device is connected with the corresponding port, it will display the SATA device type. Otherwise, it will display “Empty”. P12 SERIES · 119 ·...
  • Page 129 This option is used to set up administrator password. Note: If only the administrator password is set, the password does not need to be keyed in when entering into Setup program with User account. (i.e. at this time, empty password is effective). · 120 · P12 SERIES...
  • Page 130 Boot mode selection switch, used to enable or disable Quiet Boot function.  Boot Option Priorities This option is used to configure priorities for system boot. Among them, #1 represents highest priority, #n represents lowest priority.  Fast Boot To enable or disable Fast Boot function. P12 SERIES · 121 ·...
  • Page 131  Save Changes and Reset This option is used to save changes and reset.  Discard Changes and Reset This option is used to discard changes and reset.  Restore Defualts This option is used to restore defaults. · 122 · P12 SERIES...
