Electrical installation

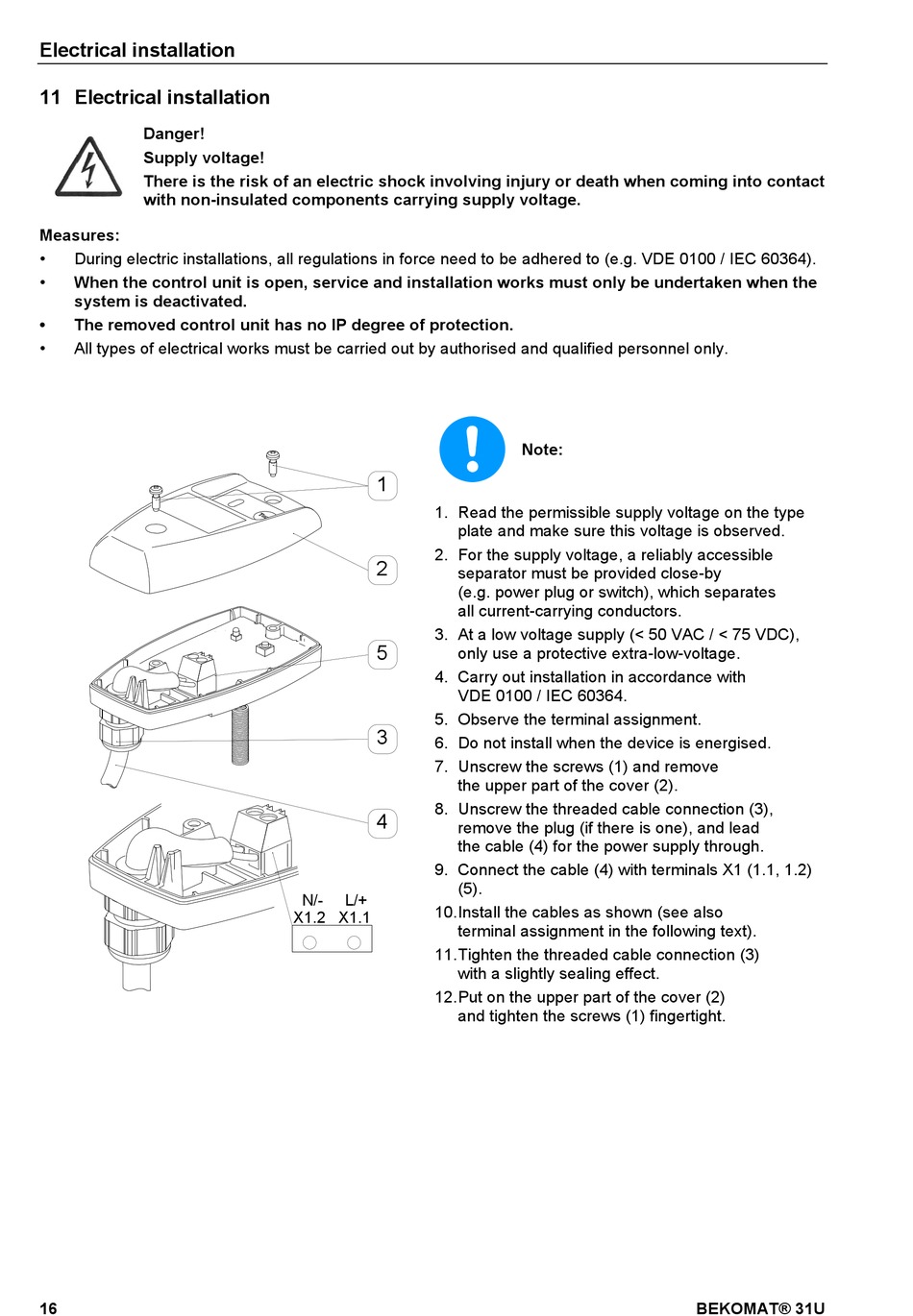

11 Electrical installation
Danger!
Supply voltage!
There is the risk of an electric shock involving injury or death when coming into contact
with non-insulated components carrying supply voltage.
Measures:
• During electric installations, all regulations in force need to be adhered to (e.g. VDE 0100 / IEC 60364).
• When the control unit is open, service and installation works must only be undertaken when the
system is deactivated.
• The removed control unit has no IP degree of protection.
• All types of electrical works must be carried out by authorised and qualified personnel only.
16
1
1. Read the permissible supply voltage on the type
plate and make sure this voltage is observed.
2. For the supply voltage, a reliably accessible
2
separator must be provided close-by
(e.g. power plug or switch), which separates
all current-carrying conductors.
3. At a low voltage supply (< 50 VAC / < 75 VDC),
5
only use a protective extra-low-voltage.
4. Carry out installation in accordance with
VDE 0100 / IEC 60364.
5. Observe the terminal assignment.
3
6. Do not install when the device is energised.
7. Unscrew the screws (1) and remove
the upper part of the cover (2).
8. Unscrew the threaded cable connection (3),
4
remove the plug (if there is one), and lead
the cable (4) for the power supply through.
9. Connect the cable (4) with terminals X1 (1.1, 1.2)
(5).
N/- L/+
10. Install the cables as shown (see also
X1.2 X1.1
terminal assignment in the following text).
11. Tighten the threaded cable connection (3)
with a slightly sealing effect.
12. Put on the upper part of the cover (2)
and tighten the screws (1) fingertight.
Note:
BEKOMAT® 31U
