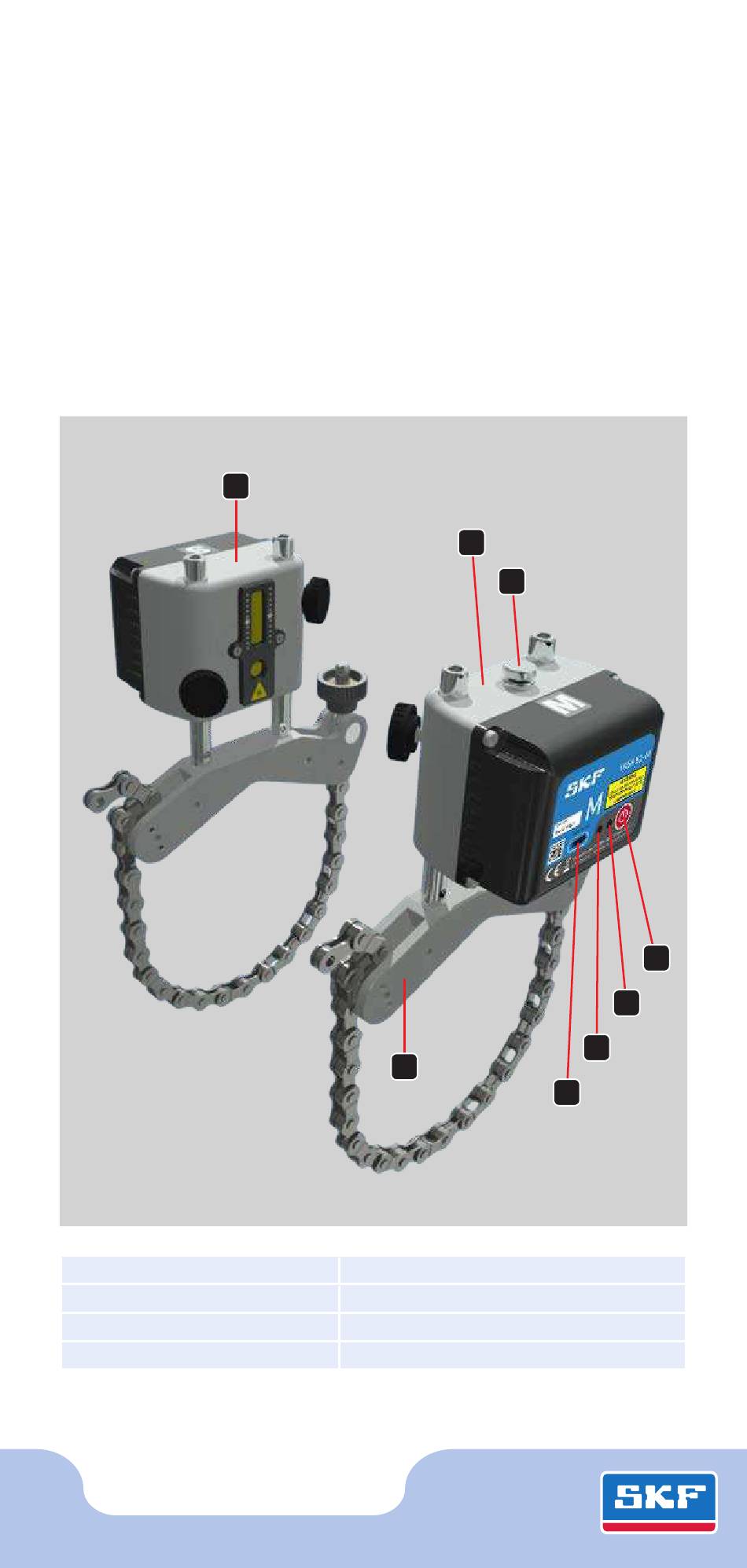

- Page 1 SKF Shaft Alignment Tool TKSA 51 Quick Start Guide 1. Description 1. Measuring unit S 5. Connection blue LED 2. Measuring unit M 6. Status red/green LED 3. Laser adjustment 7. Power button 4. Charging connector 8. V-Bracket with locking chain...
- Page 2 2. Compatible display devices • SKF TKSA DISPLAY2, Samsung Galaxy Tab Active 2 and iPad Mini recommended • iPad, iPod Touch, iPhone SE, Galaxy S6 or above (all not included) 3. Installing the apps The SKF Shaft Alignment Tool TKSA 51 is available with multiple apps.
- Page 3 Help section of the apps and SKF.com/Alignment b. Technical support SKF Technical Support website link is available in the help section the apps. Please visit www.skf.com/cm/tsg to find help or file a support request. SKF TKSA 51...
- Page 4 Videos Short instructional videos are available in the help section of the apps. More videos can be found on SKF Maintenance Products YouTube page: www.mapro.skf.com/youtube 6. Mounting the measuring units Mount the Measuring unit M on the Moveable machine. Mount the Measuring unit S on the Stationary machine.
- Page 5 Safety recommendations • The complete instructions for use are available on SKF.com and within the SKF TKSA 51 app. • Read and follow all warnings in this document before handling and operating the equipment. You can be seriously injured, equipment and data can be damaged if you do not follow the safety warnings.
- Page 6 Sébastien David Manager Product Development and Quality SKF Maintenance Products ® SKF is a registered trademark of the SKF Group. © SKF Group 2018/03 www.mapro.skf.com • www.skf.com/mount • MP5448EN The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted.
