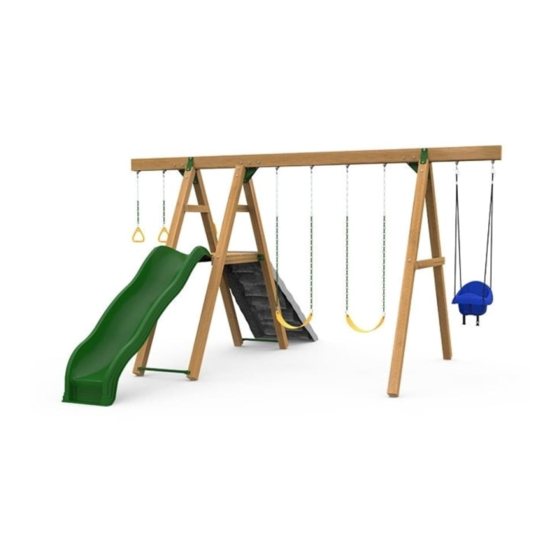

PLAYSTAR MESA Gold Safety Manual & Assembly Instructions
  1. Manuals
  2. Brands
  3. PLAYSTAR Manuals
  4. Play Sets & Playground Equipment
  5. MESA Gold
  6. Safety manual & assembly instructions

PLAYSTAR MESA Gold Safety Manual & Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
PS 7460
®
TM
Safety Guide & Assembly Instructions
Safety Zone
PS 7690
PS 7952
PS 7676 (2)
PS 7836
PS 8850
PS 8824
Safety Zone
Safety Zone
PS 7676
PS 7836
PS 7958
PS 7952
PS 8813
PS 8813
Call Toll Free 1-888-752-9782
We're Here To Help!
Customer Service: Monday - Friday, 8:00 A.M. to 5:00 P.M. C.S.T.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MESA Gold and is the answer not in the manual?

Questions and answers

Related Manuals for PLAYSTAR MESA Gold

Summary of Contents for PLAYSTAR MESA Gold

  • Page 1 PS 7460 ® Safety Guide & Assembly Instructions Safety Zone PS 7690 PS 7952 PS 7676 (2) PS 7836 PS 8850 PS 8824 Safety Zone Safety Zone PS 7676 PS 7836 PS 7958 PS 7952 PS 8813 PS 8813 Call Toll Free 1-888-752-9782 We’re Here To Help! Customer Service: Monday - Friday, 8:00 A.M.
  • Page 2 • Thoroughly read all safety instructions before Testing and Materials (ASTM) Home Playground beginning. Safety Standard. In order for PlayStar to comply with the ASTM Standard, we cannot recommend • Children must remain clear of construction site until anyone above these limits.

  • Page 3: Annual Maintenance Checklist

    SAFETY INSTALLATION: 2. Only one child, for each single planned 4. Dress children appropriately and do not seat or single planned activity should allow them to wear inappropriate items, 1. Follow the instructions provided, do not be allowed on this set at one time, with such as but not limited to, loose fitting alter its design in any way.
  • Page 4 FC 3125 Playset Anchor FC 3109 FC 3217 FC 3125 FC 3109 Swing Seat Play HW 1600 LT 7000 FP 2054 Handles FC 3217 FP 2054 Sturdy-Frame Brace Quick-Link HW 1600 FC 3107 Connector SA 4494 Climbing SA 4494 FC 3107 Welded Link Chain SA 4496 FC 3111...
  • Page 5 Lumber Notes: • Boards are marked with nominal • 2" thick boards will be drilled dimensions. during assembly process using (14) 1" x 4" x 21M/zn" drill marking template. • Actual size may vary. FC 3561 • Assembly is easier if boards are stacked •...

  • Page 6: Icon Glossary

    #2,3 C/," Z/," Z/v" Icon Glossary Place tower or component in Secure screw (flush to top) with desired location. bit size shown. Mark board with template using pattern shown on this step. Secure hardware with Note: DO NOT drill through socket/wrench size shown.
  • Page 7 Safety Warning Glossary CAUTION: Minimum spacing is required from the CAUTION: These boards should be pre-drilled closest point of all other rides or stationary objects. and countersunk to avoid cracking. Note: Adjust countersink tool to width of first board to countersink to proper depth.

  • Page 8: Helpful Hints

    Be sure boards/brackets are tight against each other. Be sure boards/components are spaced the distance listed. Be sure to equally space. Be sure boards rest on the ground. Playstar Logo showing: Use tabs to square on corner of board. Arrow showing: Use tabs to slide along edge of board to drill location.
  • Page 9 This page left blank intentionally.
  • Page 10 (12) SA 4493 SA 4492 HW 1213 #8 x 1¹ ₄" deck screw (6) 4" x 4" x 8' 1/16" = 1" 4 " x 4" x 96" SA 4493 SA 4493 SA 4492 (12) (12) HW 1301 HW 1411 ³...
  • Page 11 HW 1515 HW 1411 ³ ₈" x ³ ₄" ³ ₈" lock nut hex bolt SA 4492 SA 4493 FC 3534 2" x 4" x 46C/v" 2" x 4" x 46³ ₄" 1/16" = 1" (12) #8 x 2Z/x" HW 1204 #8 x 2¹...
  • Page 12 SA 4496 Corner Bracket #8 x 1Z/v" (24) HW 1213 #8 x 1¹ ₄" deck screw...
  • Page 13 (12) C/," x 2" HW 1528 HW 1301 HW 1528 BOLT HEX HDG 3/8-16 X 2 ³ ₈" washer C/," x 4" HW 1514 (12) HW 1411 ³ ₈" lock nut HW 1514 BOLT HEX HDG 3/8-16 X 4 ³ ₈" x 4" hex bolt HW 1514 HW 1514 HW 1528...
  • Page 14 (Silver & Gold- Bronze Design Option Only Skip to page 20) #8 x 1Z/v" HW 1213 #8 x 1¹ ₄" deck screw (1) 2" x 6" x 10' 1/16" = 1" 2" x 6" x 120" FC XXXX 21Z/x" If you do not have saw horses, rest beam on the ground.
  • Page 16 #8 x 2Z/x" HW 1204 #8 x 2¹ ₂" deck screw HW 1204 SCREW DECK GALV #8 X 2 1/2 (1) 2" x 6" x 10' 1/16" = 1" 2" x 6" x 120" FC XXXX 0" 24" 44" 64" 120"...
  • Page 17 If you do not have saw horses, flip the beam over. C/," x 4" HW 1514 ³ ₈" x 4" hex bolt HW 1514 BOLT HEX HDG 3/8-16 X 4 (18) HW 1411 HW 1301 ³ ₈" lock nut ³ ₈" washer...
  • Page 18 FP 2054 Sturdy-Frame Brace C/," x 4" HW 1514 HW 1411 ³ ₈" x 4" hex bolt HW 1514 BOLT HEX HDG 3/8-16 X 4 ³ ₈" lock nut HW 1301 ³ ₈" washer...
  • Page 19 FC 3111 Swing Hanger 120" 68" 52" 36" 20" 0" HW 1301 ³ ₈" washer C/," x 3" HW 1201 ³ ₈" x 3" lag screw HW 1201 SCREW LAG HDG 3/8 X 3...
  • Page 20 Silver & Gold Design Options Only (Bronze- Skip to page 26) #8 x 1Z/v" HW 1213 #8 x 1¹ ₄" deck screw 2" x 6" x 14' 1/16" = 1" 2" x 6" x 120" FC XXXX 21Z/x" 28Z/x" 33" 55Z/x"...
  • Page 22 (14) #8 x 2Z/x" HW 1204 #8 x 2¹ ₂" deck screw HW 1204 SCREW DECK GALV #8 X 2 1/2 (1) 2" x 6" x 14' 1/16" = 1" 2" x 6" x 120" FC XXXX 0" 20" 50Z/x" 70Z/x"...
  • Page 23 If you do not have saw horses, flip the beam over. C/," x 4" HW 1514 ³ ₈" x 4" hex bolt HW 1514 BOLT HEX HDG 3/8-16 X 4 (18) HW 1411 HW 1301 ³ ₈" lock nut ³ ₈" washer...
  • Page 24 FP 2054 Sturdy-Frame Brace C/," x 4" HW 1514 HW 1411 ³ ₈" lock nut ³ ₈" x 4" hex bolt HW 1514 BOLT HEX HDG 3/8-16 X 4 HW 1301 ³ ₈" washer...
  • Page 25 FC 3111 Swing Hanger 165" 151" 94Z/x" 78Z/x" 62Z/x" 46Z/x" 17" 3" 0" HW 1301 ³ ₈" washer C/," x 3" HW 1201 ³ ₈" x 3" lag screw HW 1201 SCREW LAG HDG 3/8 X 3...
  • Page 26 Bronze Design All Design Options Option Shown HW 1212 (8) #14 x 1Z/v" SA 4494 #14 x 1¹ ₄" W LAG HDG 3/8 X 1 1/2 pan head screw Climbing 21Z/x" 21Z/x" 1" 21Z/x" 21Z/x" 21Z/x" 1" 1"...
  • Page 27 Skip this step for the Gold Design Option. Continue to next page. HW 1212 (12) #14 x 1Z/v" SA 4494 #14 x 1¹ ₄" W LAG HDG 3/8 X 1 1/2 pan head screw Climbing 13" 13" 12Z/v"...
  • Page 28 FC 3561 (2) 1" x 4" x 21M/zn" 1" x 4" x 21⁷ ₁₆" 1/16" = 1" HW 1216 #8 x 1Z/x" #8 x 1¹ ₂" deck screw...
  • Page 29 FC 3534 (1) 2" x 4" x 46C/v" 2" x 4" x 46³ ₄" 1/16" = 1" HW 1216 (4) #8 x 1Z/x" #8 x 1¹ ₂" deck screw...
  • Page 30 FC 3561 (12) 1" x 4" x 21M/zn" HW 1216 1" x 4" x 21⁷ ₁₆" 1/16" = 1" (72) #8 x 1Z/x" #8 x 1¹ ₂" deck screw...
  • Page 31 FC 3553 1" x 4" x 21M/zn" 1" x 4" x 21⁷ ₁₆" 1/16" = 1" HW 1216 (8) #8 x 1Z/x" #8 x 1¹ ₂" deck screw 22"...
  • Page 32 Playset ³ ₈" x 1" Anchor hex bolt HW 1219 C/," x 1Z/x" FC 3217 HW 1301 ³ ₈" washer HW 1219 SCREW LAG HDG 3/8 X 1 1/2 ³ ₈" x 3" lag screw...
  • Page 33 Swings and Rings FC 3107 Adjustment Zone FC 3106 HW 1600 NOTE: Customize the height of your chain in the Adjustment FC 3109 Zone to fit your child. FC 3110 Play Handles HW 1212 (2) #14 x 1Z/v" FC 3125 #14 x 1¹...
  • Page 34 Slide 1Z/x" Line up center hole. HW 1474 3-prong T-nut HW 1212 (1) #14 x 1Z/v" #14 x 1¹ ₄" HW 1219 SCREW LAG HDG 3/8 X 1 1/2 pan head screw...
  • Page 35 Playset Anchor FC 3217 FC 3217 HW 1212 Removed HW 1212 in step 8. (1) #14 x 1Z/v" #14 x 1¹ ₄" HW 1219 SCREW LAG HDG 3/8 X 1 1/2 pan head screw HW 1217 HW 1309 Z/v" Z/v" x 1" ¹...

  • Page 36: Important - Please Read

    PlayStar, Incorporated, Janesville, WI 53547 © 2017 PlayStar, Inc. Reproduction of this document in part or whole is prohibited without the permission of PlayStar, Inc. Protected by one or more of the following United States or Foreign Patents: US D418,189; US D409,708; US D424,154; US D428,637; US 6,402,663; US D422,332; US D410,059;...

This manual is also suitable for:

Mesa silverMesa bronze
