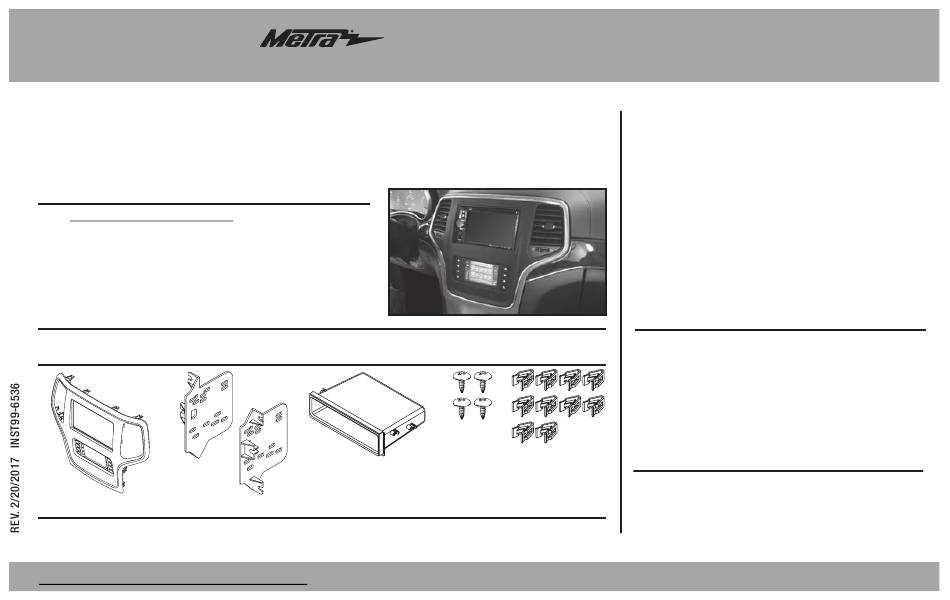

INSTALLATION INSTRUCTIONS FOR PART 99-6536
Jeep Grand Cherokee 2014-up
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Painted: Bronze - 99-6536BZ
Silver - 99-6536S
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket
• D) (4) #8 x 3/8" Phillips screws • E) (10) Panel clips • F) HVAC interface and wiring harness (not shown)
A
B
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and harness included Antenna Adapter: 40-EU55 (sold separately)
METRA – The World's best kits.
99-6536
C
D
®
Dash Disassembly ................................................. 2
Kit Preparation ....................................................... 3
Kit Assembly
– ISO DIN radio provision with pocket ...................... 4
– ISO DDIN radio provision ...................................... 4
Axxess Interface Installation ...........................5-14
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench • 5.5mm socket wrench
E
CAUTION!
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
Table of Contents
All accessories, switches, climate controls panels,

Advertisement

loading
Need help?

Need help?

Do you have a question about the 99-6536 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-6536

Summary of Contents for Metra Electronics 99-6536

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-6536 Table of Contents Jeep Grand Cherokee 2014-up 99-6536 Dash Disassembly ..........2 Kit Preparation ............3 Kit Assembly KIT FEATURES – ISO DIN radio provision with pocket ...... 4 • ISO DIN radio provision with pocket –...
  • Page 2 99-6536 Dash Disassembly 1. Unclip and remove the radio/ climate control panel. (Figure A) 2. Remove the (4) 9/32 screws securing the radio/display screen, and then unplug and remove. (Figure B) 3. Remove the (3) 5.5mm screws securing the black control module...
  • Page 3 99-6536 Kit Preparation From the factory radio/climate control panel: 1. Unclip the vents from the back of the panel. (Figure A) To the 99-6536CH radio trim panel: 1. Attach the vents to the back of the panel. (Figure B) 2. Attach the (10) panel clips provided.
  • Page 4 99-6536 Kit Assembly ISO DIN radio provision with pocket ISO DDIN radio provision 1. Attach the pocket to the radio 1. Attach the brackets to the radio brackets using the (4) #8 x 3/8” using the screws supplied with Phillips screws provided. (Figure A) the radio.

  • Page 5: Table Of Contents

    99-6536 Axxess Interface Installation INTERFACE FEATURES TABLE OF CONTENTS • Provides accessory power (12-volt 10-amp) Connections to be made ................6-8 • Retains R.A.P. (retained accessory power) Installing the interface ................9 • Provides NAV outputs (parking brake, reverse, speed sense) Initializing the interface ................

  • Page 6: Connections To Be Made

    99-6536 Connections to be made Attention! This interface will work with models that are either non-amplified, or From the 6536 harness to the aftermarket radio: amplified. Please follow the instructions carefully for your model vehicle. Failure to • Connect the Black wire to the ground wire.
  • Page 7 99-6536 Connections to be made (cont.) Attention! This interface will work with models that are either non-amplified, or amplified. The following (3) wires are only for multimedia/navigation radios that require these wires. Please follow the instructions carefully for your model vehicle. Failure to do so will result in •...
  • Page 8 99-6536 Connections to be made (cont.) 3.5mm jack - steering wheel control retention: • Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as Key-A or SWC-1, to the Brown wire of the connector. Then The 3.5mm jack is to be used to retain audio controls on the steering wheel control.

  • Page 9: Installing The Interface

    99-6536 Installing the interface Initializing the interface Attention! If the interface loses power for any reason, the following steps It is highly advisable to read the following steps beforehand, to ensure a clear understanding of what is to be expected. The following steps must be done in the order that they are numbered.

  • Page 10: Touchscreen Display Operation

    99-6536 Touchscreen display operation HVAC Control screen Heated seats screen • This is the HVAC control screen which will be displayed on the touchscreen display. • This is the Heated/Cooled Seats, Heated Steering, and Mirror Dimming screen which This is considered the Main Menu screen.
  • Page 11 99-6536 Touchscreen display operation (cont.) ECO/ESC/PARK-SENSE/SPORT/STOP-START screen • ECO – Fuel Economy Mode • ESC – Electronic Stability Control • PARK-SENSE – ParkSense Rear Park Assist System • SPORT – Sport Mode • STOP-START – Stop/Start System • This is the screen where you can access the “hard buttons” that were on the factory radio panel: ECO/ESC/PARK-SENSE/SPORT/STOP-START •...

  • Page 12: Steering Wheel Control Settings

    99-6536 Steering wheel control settings Configuration Settings screen • Steering Wheel Controls • Remap Buttons – For remapping the steering wheel control buttons • Dual Assign – For dual assigning the steering wheel control buttons (long button press) • Select Radio – For auto detecting the radio, or changing the radio type •...
  • Page 13 99-6536 Steering wheel control settings (cont.) Select Radio screen * Note: If the interface shows an Alpine radio, and you do not have an Alpine radio, that means the interface does not detect a radio connected it, i.e., an open connection.
  • Page 14 99-6536 Steering wheel control settings (cont.) Remap Button screen Dual Assign screen • The interface has the ability to change the button assignment for the steering • The interface has the capability to assign two functions to a single button, wheel control audio buttons, except Volume-Up and Volume-Down.
