Summary of Contents for Intelligent Home IH6913SD

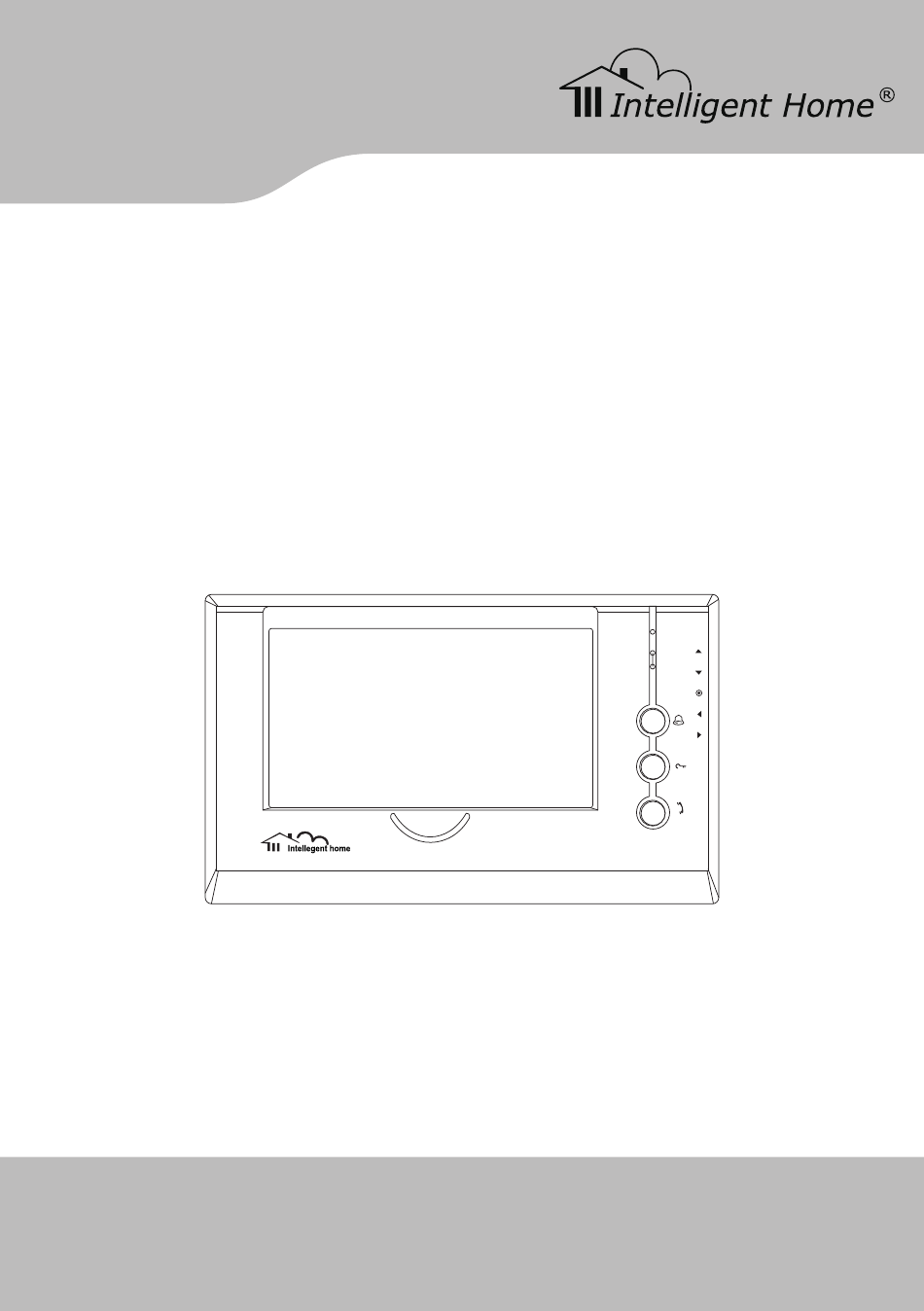

- Page 1 Video Door Entry System user manual INI-USE MESG CALL UNLOCK TALK This manual covers IH6913SD IH6913 Monitor www.intelligenthomeonline.com...
- Page 2 PRECAUTIONS ● Connect this unit ONLY to other compatible units. Do not connect it to any other type of alarm or auxiliary device. Connecting anything else to this unit may damage it or prevent it from operating properly, and will invalidate the warranty.
- Page 3 FFEATURES Touch Screen Operation INI-USE MESG All the operations and settings can be done by CALL UNLOCK touching the LCD screen. TALK Full Screen Digital Clock The date and time will displayed when touch a n y w h e r e o f t h e s c r e e n , a n d i t w i l l c l o s e d automatically after 3 minutes.
-
Page 5: Table Of Contents
CONTENT 1. Parts and Functions - - - - - - - - - - - - - - - - - - - - - - - - - 1 2. Installations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 3. -
Page 6: Parts And Functions
1. Parts and Functions Microphone UP button IN-USE/MESG INI-USE DOWN button MESG ENTER button (+)ADD button CALL button CALL (-)REDUSE button UNLOCK button UNLOCK MONITOR/TALK button TALK TFT screen Power LED Speaker Power Input Slave Monitor 1st Camera 2nd Camera 2. -
Page 7: System Connection
3. System Connection Terminals and descriptions: ● 1R Power positive. +12V present when Outdoor Station calling or being monitored. ● 2W Power negative (GND) ● 3Y Image signal (Video signal) ● 4B Talk and control signal (Audio signal) ● POWER TERMINAL: Black wire DC negative (-) ●... -
Page 8: Bus Connection
4. Bus Connection Power CAM 2 CAM 1 Slave Mon Power CAM 2 CAM 1 Slave Mon Power CAM 2 CAM 1 Slave Mon - 3 -... -
Page 9: Multi Door Camera Connection
5. Multi Door Camera Connection Power CAM 2 CAM 1 Slave Mon Power CAM 2 CAM 1 Slave Mon Power Slave Mon CAM 2 CAM 1 - 4 -... -
Page 10: Basic Video Door Phone Operation
TALK the screen), you can talk with the visitor for 90 seconds. During talking state, press TALK Button Intelligent Home S y s t e m (or touch )again to end the conversation. TALK If nobody answers the phone, the screen will be turned off automatically after 30 seconds. If the system connects two or more Monitors, when any Monitor starts to talk, the other Monitors will be automatically shut off. -
Page 11: Operation For Multiple Doorbell Cameras
EXIT To end the intercom conversation, press TALK. If no one answers, it will exit automatically after 30 seconds. Intelligent Home S y s t e m The doorbell function will always override the intercom function. - 6 -... -
Page 12: Ring Tone And Other Settings
The date/time page will close in 3 minutes if no Buttons are pressed. Intelligent Home S y s t e m Entering the main Menu: Touch the screen or ●... -
Page 13: Picture Memory Operations
Default Exit factory defaults. Intelligent Home S y s t e m 10. Picture Memory Operations Pictures can be recorded both manually and automatically. Image capacity is about 128 play pictures. -
Page 14: Image And Volume Adjustment
11. Image and Volume Adjustment During monitoring or talking, press icon(or press ● Button), ADJUST MENU will be displayed. TALK EXIT ▲/▼ Touch the + / - icons(or press Button) to UNLOCK increase or decrease current value; touch the ● icon(or press the Button) to switch to the next 2009/02/14... - Page 15 4. Attempting to force the device to perform functions for which it is not intended 5. Attaching the device to power supplies other than thoserecommended by the manufacturer Distributor for Warranty purposes: Intelligent Home Online Ltd 34a High Street Hornsey London...
- Page 16 IH6913-4wire-V2 2010-11-10 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. www.intelligenthomeonline.com...
