Digital Projection TITAN XG-500 User Manual

Hide thumbs Also See for TITAN XG-500:
Table of Contents

Advertisement

Quick Links

Download this manual

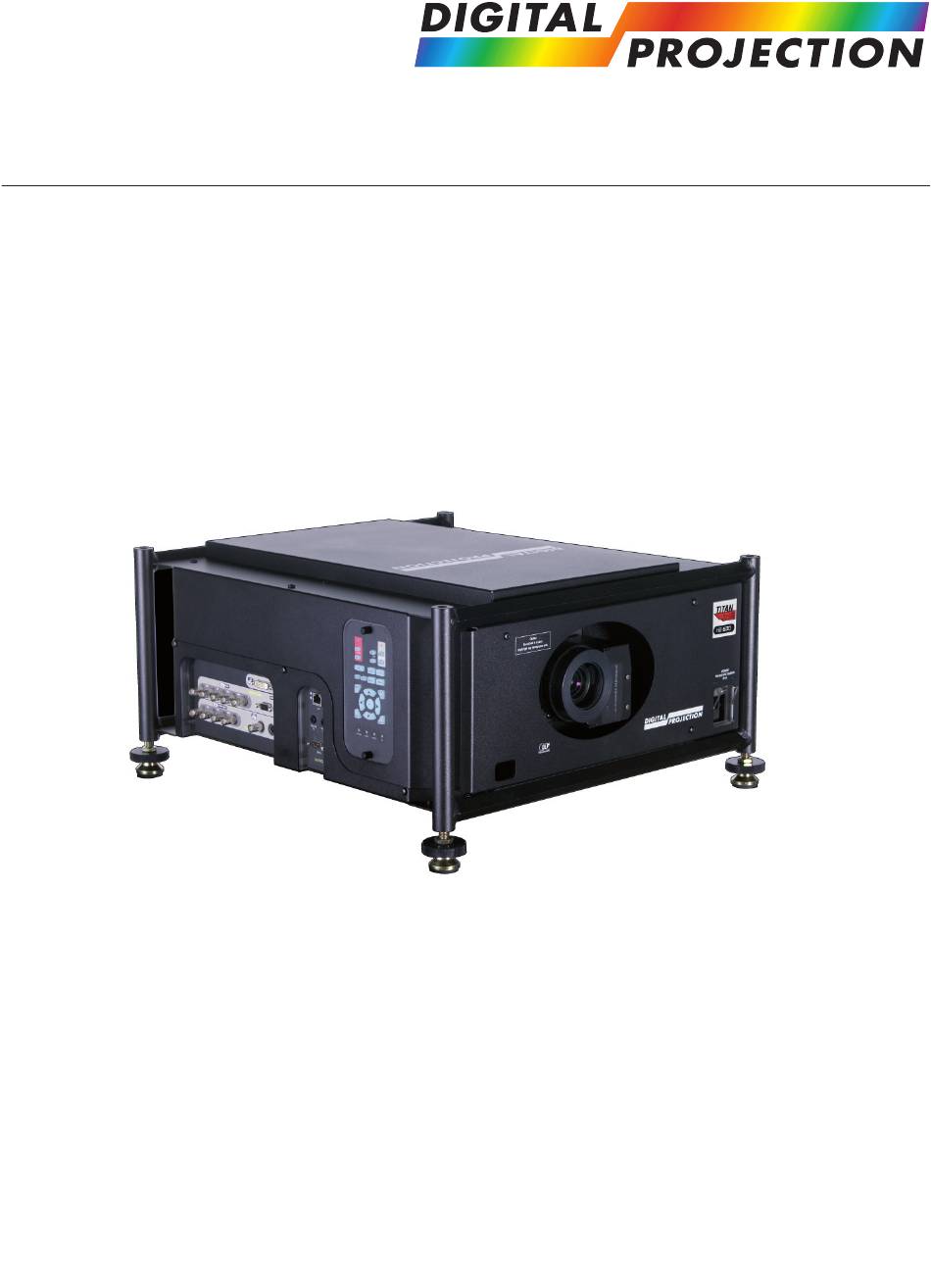

TITAN XG-500
High Brightness Digital Video Projector
4:3 widescreen display
User Manual
106-615C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN XG-500 and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Projection TITAN XG-500

Summary of Contents for Digital Projection TITAN XG-500

  • Page 1 TITAN XG-500 High Brightness Digital Video Projector 4:3 widescreen display User Manual 106-615C...
  • Page 2 Digital Projection User Manual TITAN XG-500 Declaration of Conformity Directives covered by this Declaration 89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC and 93/68/EEC. 73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC. Products covered by this Declaration Large screen video projector type...
  • Page 3 Product revision • Because we at Digital Projection continually strive to improve our products, we may change specifi cations and designs, and add new features without prior notice. Projectors built prior to this revision of the User Manual may therefore not include all the features described.
  • Page 4 Important Information Digital Projection User Manual TITAN XG-500 General precautions Notes Do not open the cabinet. There are no user serviceable parts inside. Use only the power cable provided. Ensure that the power outlet includes a Ground connection, as this equipment MUST be earthed.
  • Page 5 APPLY button. Always keep a written note of the original settings, and any changes you have made. Software update should NOT be carried out except by, or with the supervision of, Digital Projection Service personnel. Rev C March 2008 Page v...
  • Page 6 RF Interference The Federal Communications Commission does not allow any modifi cations or changes to the unit EXCEPT those specifi ed by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment.
  • Page 7 Digital Projection User Manual Important Information TITAN XG-500 Digital Projection Contact details Notes Digital Projection Limited, Greenside Way, Middleton, Manchester M24 1XX, UK. Registered in England No. 2207264, Registered Offi ce: as above +44 (0) 161 947 3300 +44 (0) 161 684 7674 Email enquiries@digitalprojection.co.uk, service@digitalprojection.co.uk...
  • Page 8 Important Information Digital Projection User Manual TITAN XG-500 Page viii Rev C March 2008...

  • Page 9: Introduction

    Titan XG-500 User Manual Contents Declaration of Conformity ........................ii Important Information Symbols used in this guide ......................... iii ............................. iii Warnings ............................iii Trademarks Product revision ............................. iii Manual revision ............................iii General precautions ..........................iv Installation precautions ........................v Operation and confi guration precautions ..................v...

  • Page 10: Table Of Contents

    Table of Contents Digital Projection User Manual TITAN XG-500 2. Installation Screen requirements ......................... 2.2 ............................2.2 Aspect ratio ....................2.5 Positioning the screen and projector Choosing a lens ..........................2.6 ....................2.7 Choosing a lens using the lens charts ......................
  • Page 11 Digital Projection User Manual Table of Contents TITAN XG-500 4. Controlling the projector Overview ............................... 4.4 ........................4.4 Controlling the projector ........................4.5 Input modes and settings Indicators .............................. 4.7 ........................4.7 Input status indicators The control panel ..........................4.8 ...........................
  • Page 12 Table of Contents Digital Projection User Manual TITAN XG-500 Picture menu ............................4.21 ............................4.21 Brightness ............................4.21 Contrast ............................4.21 Saturation ............................... 4.21 .......................... 4.22 Gamma Correction ......................... 4.22 Parametric Gamma ............................4.22 Phase ........................... 4.23 Aspect Ratio ............................4.23...
  • Page 13 Digital Projection User Manual Table of Contents TITAN XG-500 5. Userware 6. Maintenance Changing the lamp module ......................6.2 Changing the air fi lter ........................6.3 Cleaning ..............................6.4 ............................6.4 Projector ..............................6.4 Lens ........................... 6.4 Lamp module 7. Appendix Troubleshooting ..........................
  • Page 14 Table of Contents Digital Projection User Manual TITAN XG-500 Page xiv Rev C March 2008...
  • Page 15 1. Introduction Contents What’s in the box? ..........................1.2 Key features of the projector ......................1.3 Getting to know the projector ......................1.4 ......................1.4 Front panel, – lens and power ......................1.4 Rear panel – lamp and air fi lter ....................
  • Page 16 1. Introduction Digital Projection User Manual TITAN XG-500 What’s in the box? Notes • Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Lenses are optional. Order lenses from your Digital • You should save the original box and packing materials, in case you ever need Projection dealer.

  • Page 17: Key Features Of The Projector

    TITAN XG-500 Key features of the projector Notes Congratulations on your purchase of the Digital Projection Titan XG-500 projector. Digital Projection International, Texas Instruments’ fi rst DLP™ partner and the original innovator of the 3-chip DLP™ projector, proudly introduces the Titan XG.

  • Page 18: Getting To Know The Projector

    1. Introduction Digital Projection User Manual TITAN XG-500 Getting to know the projector Notes Front panel, – lens and power Air outlet For more detailed information about lenses, see Air inlet - section 2. Installation around lens Front Infra-red window...

  • Page 19: Side Panel - Connection And Control

    Digital Projection User Manual 1. Introduction TITAN XG-500 Side panel – connection and control Notes For information about how to connect the projector, see Connecting the projector in section 2. Installation, and Connections in section 7. Control panel Appendix. For information about how to use the control panel, see section 4.
  • Page 20 1. Introduction Digital Projection User Manual TITAN XG-500 Page 1.6 Rev C March 2008...

  • Page 21: Installation

    2. Installation Contents Screen requirements ......................... 2.2 ............................2.2 Aspect ratio ......................2.2 Fitting the image to the DMD ....................... 2.2 Images displayed full width ......................2.2 Images displayed full height ........................2.3 Diagonal screen sizes ......................2.4 Fitting the image to the screen ....................

  • Page 22: Aspect Ratio

    2. Installation Digital Projection User Manual TITAN XG-500 Screen requirements Notes Aspect ratio The images are shown here scaled automatically by the Fitting the image to the DMD projector. If the source image supplied to the projector is smaller than 1024 x 768 pixels, then the image will not fi...

  • Page 23: Diagonal Screen Sizes

    Digital Projection User Manual 2. Installation TITAN XG-500 Diagonal screen sizes Notes Screen sizes are sometimes specifi ed by their diagonal size (D) in inches. When dealing with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H).

  • Page 24: Fitting The Image To The Screen

    2. Installation Digital Projection User Manual TITAN XG-500 Fitting the image to the screen Notes It is important that your screen is of suffi cient height and width to display images at all the aspect ratios you are planning to use.

  • Page 25: Positioning The Screen And Projector

    Digital Projection User Manual 2. Installation TITAN XG-500 Positioning the screen and projector Notes For optimum viewing, the screen should be a fl at surface perpendicular to the fl oor. The bottom of the screen should be 1.2m (4 feet) above the fl oor and the front row The projector should be of the audience should not have to look up more than 30°...

  • Page 26: Choosing A Lens

    2. Installation Digital Projection User Manual TITAN XG-500 Choosing a lens Notes A number of lenses are available for use with the projector. Which lens you choose will depend on the screen size, image aspect ratio, projection distance and light output.

  • Page 27: Choosing A Lens Using The Lens Charts

    Digital Projection User Manual 2. Installation TITAN XG-500 Choosing a lens using the lens charts Notes Use the charts on this page and on the following pages to choose which lens best suits your application. This chart has a TRF of 1.0, for use with the following images: Full width images, including 2.35:1, 1.85:1, 16:9, 1.66:1, 4:3...

  • Page 28: Full Height Image 5:4

    2. Installation Digital Projection User Manual TITAN XG-500 Lens charts continued Notes Full height image 5:4 This chart has a TRF of 1.07, Use the chart below to choose which lens best suits your application. for use with the following image: if you need to be more precise, then use the calculations on the page immediately following the lens charts.

  • Page 29: Choosing A Lens By Calculation

    Digital Projection User Manual 2. Installation TITAN XG-500 Choosing a lens by calculation Notes For any screen size not listed above, or if you need to be more precise, then use the calculations below. The Throw ratio for a particular •...

  • Page 30: Useful Lens Calculations

    2. Installation Digital Projection User Manual TITAN XG-500 Useful lens calculations Notes The Throw ratio for a particular The following lens calculations may be useful: lens is fi xed, but assumes that the image fi lls the width of the DMD.

  • Page 31: Fitting The Lens

    Digital Projection User Manual 2. Installation TITAN XG-500 Fitting the lens Notes • Remove the rear lens cap from the lens. • Insert the lens into the lens mount with the connector to the right, taking care to line up the locating pin on the lens with the locating hole above the opening.

  • Page 32: Shifting The Image

    2. Installation Digital Projection User Manual TITAN XG-500 Shifting the image Notes For more information on using The normal position for the projector is at the centre of the screen. However, you the Lens shift feature, see can set the projector above or below the centre, or to one side, and adjust the image section 4.

  • Page 33: Mounting The Projector

    - remove the four feet; damage the lamp module and cause extra cost on - attach the bracket supplied for use with Titan XG-500 projectors; replacement. The projector my be tilted forwards and - make sure that all the frame adjusters are set midway.

  • Page 34: Adjusting The Rigging Frame

    2. Installation Digital Projection User Manual TITAN XG-500 Adjusting the rigging frame Notes Coarse adjustment of projector level should be made by adjusting the length of the supporting wires or chains, or by adjusting the position of the truss or rigging.

  • Page 35: Stacking Projectors

    Digital Projection User Manual 2. Installation TITAN XG-500 Stacking projectors Notes The rigging frame is capable of supporting the weight of up to two other projectors, using the built-in frame couplings. The projectors can be stacked on top of each other, or suspended below each other.

  • Page 36: Connecting The Projector

    2. Installation Digital Projection User Manual TITAN XG-500 Connecting the projector Notes Input Control connection panel connection panel Signal Inputs The following inputs are available: 3. DVI For more information on 2. RGB2 selecting an input source, see section 4. Overview, Using the control keys, and Using the menus.

  • Page 37: Control Connection Examples

    Digital Projection User Manual 2. Installation TITAN XG-500 Control connection examples Notes LAN connection All of the projector’s features can be controlled via a LAN connection, using a For more information about pin standard internet browser package such as Internet Explorer.

  • Page 38: Power Connection

    2. Installation Digital Projection User Manual TITAN XG-500 Power connection Notes When mains power is fi rst applied, the projector will perform a self-test, then go into Standby mode. The Power indicator on the control panel will show amber until the POWER Use only the power cable on the remote control or the keypad, is pressed for 3 seconds.

  • Page 39: Getting Started

    3. Getting Started Contents Switching the projector on ....................... 3.2 Selecting an input or test pattern ....................3.2 ..............................3.2 Input ............................3.2 Test pattern Adjusting the lens ..........................3.3 .............................. 3.3 Focus ............................... 3.3 Zoom ..............................3.3 Shift Adjusting the projected image ......................

  • Page 40: Switching The Projector On

    3. Getting Started Digital Projection User Manual TITAN XG-500 Switching the projector on Notes • Connect the power cable between the mains supply and the projector. For more information about connecting the power cable, see Power Connections, in section 2. Installation.

  • Page 41: Adjusting The Lens

    Digital Projection User Manual 3. Getting Started TITAN XG-500 Adjusting the lens Notes For more detailed information Focus about: - using the control keys on the • Press followed by to adjust the focus. remote control or keypad, When adjustment is fi nished, press...

  • Page 42: Adjusting The Projected Image

    3. Getting Started Digital Projection User Manual TITAN XG-500 Adjusting the projected image Notes Picture settings • Press a key, followed by to adjust these picture settings: The Saturation control is available for Composite, S- Brightness Video and Component inputs only.
  • Page 43 4. Controlling the projector Contents Overview ............................... 4.4 ........................4.4 Controlling the projector ........................4.5 Input modes and settings ........................4.5 Input mode detection ......................4.5 Mode library and mode history ..........................4.6 Input presets Indicators .............................. 4.7 ........................4.7 Input status indicators The control panel ..........................
  • Page 44 4. Controlling the projector Digital Projection User Manual TITAN XG-500 Using the menus ..........................4.15 ..................... 4.15 Navigating menus and submenus ..........................4.17 Menu controls Input menu ............................4.18 ........................... 4.18 Input Source ............................4.19 Presets ..........................4.19 Recall Presets ..........................
  • Page 45 Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu ............................4.31 ............................4.32 Projector ..........................4.32 Orientation ........................4.32 Control Panel Backlight ........................4.32 Component Video Sync ............................ 4.33 Keystone ..........................4.33 Test Pattern ........................4.34 Global Colourimetry ..........................

  • Page 46: Overview

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Overview Notes Controlling the projector The projector can be controlled from: • the remote control • the keypad • the RS232 input • the Ethernet input For more information about controlling the projector using the RS232 and Ethernet inputs, see Remote communications protocol in section 7.

  • Page 47: Input Modes And Settings

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Input modes and settings Notes Input mode detection The projector can automatically detect the following parameters from the incoming video signal: • line frequency • frame rate • interlace / progressive From these parameters the projector can determine input mode, for example: •...

  • Page 48: Input Presets

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Any subsequent changes that you make to the modal settings will be saved in the Notes mode history, with the input mode. Mode Mode library history defaults NTSC NTSC modal...

  • Page 49: Indicators

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Indicators Notes Input status indicators 1. RGB1 3. DVI There are more indicators on the Control panel, and these are 2. RGB2 described on the next page. Input 4. is not used on this projector.

  • Page 50: The Control Panel

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 The control panel Notes Many features are controlled Keypad layout from the menus using the menu navigation keys on the remote The controls on the keypad are identical to those at the top of the remote control, control or keypad.

  • Page 51: The Remote Control

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 The remote control Notes Many features are controlled Layout from the menus using the menu navigation keys on the remote control or keypad. For more information about using the menus, see later in Transmit this section, Using the menus.

  • Page 52: Using The Control Keys

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Using the control keys Notes Power • Press POWER and hold for 3 seconds, to switch the projector ON. • Press POWER and hold for 3 seconds, to switch the projector OFF.

  • Page 53: Auto-Detect Input Mode

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Auto-detect input mode Notes • Press to force the projector to re-detect the input mode For more information about (see Input modes and settings, earlier in this section). input mode detection, see earlier in this section, Input modes and settings.

  • Page 54: Input Presets

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Input Presets Notes Recall • To recall a set of modal settings that have been saved, press and hold whilst pressing the lettered key A – S. For more information about input modes and input presets, •...

  • Page 55: Red, Green And Blue

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Red, Green and Blue Notes • Press to switch the red, green or blue components OFF The red, green and blue keys or ON. are disabled when the OSD is switched OFF.

  • Page 56: Magnify And Pan

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Magnify and pan Notes The magnify feature utilises a • Press Magnify MAGNIFY digital zoom. Used with the pan control, this can be used to: followed by to adjust the size of the picture.

  • Page 57: Using The Menus

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Using the menus Notes Some menu controls can be Navigating menus and submenus accessed directly using the control keys (see earlier in this When the menus are in use and the OSD is ON, the top level menu headings are section).
  • Page 58 4. Controlling the projector Digital Projection User Manual TITAN XG-500 Notes Press to open the menu. The blue highlight moves to the fi rst item in the menu, which may be submenu, for example the Projector Setup submenu. Setup menu •...

  • Page 59: Menu Controls

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Menu controls Notes Some menus have controls, as shown in the examples below. Some menus items may be greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.

  • Page 60: Input Menu

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Input menu Notes Some menu controls can be accessed directly using the To return to the main menu, press up to three times. control keys (see earlier in this section).

  • Page 61: Presets

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Input menu continued Notes Presets Some menu controls can be accessed directly using the Sixteen sets of parameters can be saved and recalled (A – S). The parameters control keys (see earlier in this saved for each Preset are: section).

  • Page 62: Save Presets

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Input menu continued Notes Save Presets Some menu controls can be accessed directly using the • Press to select Save Preset. control keys (see earlier in this section). Press to open the Save Presets A ~ H submenu.

  • Page 63: Picture Menu

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Picture menu Notes Some menu controls can be accessed directly using the To return to the main menu, press up to three times. control keys (see earlier in this section).

  • Page 64: Gamma Correction

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Picture menu continued Notes Gamma Correction Video recordings are often supplied with a gamma adjustment applied. The projector’s gamma adjustment can be used to correct for this. • Press to select Gamma.

  • Page 65: Aspect Ratio

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Picture menu continued Notes Aspect Ratio • Press to select Aspect Ratio. Aspect Ratio selection can be found in both the Picture and Press to select from: Geometry menus. Fill This will best fi...

  • Page 66: Geometry Menu

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Geometry menu Notes Some menu controls can be accessed directly using the To return to the main menu, press up to three times. control keys (see earlier in this section).

  • Page 67: User Horizontal Aspect Ratio

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Geometry menu continued Notes User Horizontal Aspect Ratio • Press to select User H Aspect. Horizontal and Vertical Aspect Ratio adjustments are Press to adjust the slider (internal number – adjust to fi t).

  • Page 68: Resolution

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Geometry menu continued Notes Resolution • Press to select Resolution. Press to open the Resolution submenu. Input RESOLUTION Automatic Input Detection Picture Input Standard Geometry Colour Total H Samples Geometry Menu...

  • Page 69: Blanking

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Geometry menu continued Notes When Input Detection is set to Custom: • Press to select one of the adjustment sliders. Press to adjust the slider to match the resolution of the incoming video signal.

  • Page 70: Colour Menu

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Colour menu Notes To return to the main menu, press up to three times. When using the menus, press to hide or From the main menu: reveal the On-Screen-Display. •...

  • Page 71: Colour Mode

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Colour menu continued Notes Colour Mode • Press to select Colour Mode. Read the notes on Colour and Press to select from: Global Colourimetry earlier in this section before making...

  • Page 72: Trim

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Colour menu continued Notes Trim • Press to select Trim. The Trim submenu is available only if Global Colour Mode is Press to open the Trim submenu. selected. Trim RGB Lift and Gain...

  • Page 73: Setup Menu

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu Notes To return to the main menu, press up to three times. From the main menu: • Press until Setup is highlighted. When using the menus, press to hide or Press to open the Setup menu.

  • Page 74: Projector

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Setup menu, continued Notes Projector • Press to select Projector. Press to open the Projector submenu. Orientation Setup Menu Projector • Press to select Orientation. Press to select from: Desktop Front...

  • Page 75: Keystone

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu, Projector continued Notes Keystone Used to correct for distortion caused by the projector being mounted higher or lower than the screen. • Press to select Keystone. Press to adjust the slider (-128 to +127).

  • Page 76: Global Colourimetry

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Setup menu continued Notes Global Colourimetry • Press to select Global Colourimetry. • Press to open the Global Colourimetry submenu. Setup Menu Global Colourimetry Some menu items may be greyed out - unavailable due to...

  • Page 77: Colour Mode

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu, Global Colourimetry continued Notes Colour Mode • Press to select Colour Mode. Read the notes on Colour and Press to select from: Global Colourimetry earlier in this section before making...

  • Page 78: Lamp

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Setup menu, continued Notes Lamp • Press to select Lamp. Press to open the Lamp submenu. The middle row shows the current lamp setting. Setup Menu Lamp Change Lamp Setting •...

  • Page 79: Lamp Power

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu, Lamp continued Notes Lamp Power • Press to select the Lamp Power setting. Press to adjust the Lamp Power from: 80 to 100% in 1% steps Lamp Mode •...

  • Page 80: On Screen Display

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Setup menu continued Notes On Screen Display • Press to select On Screen Display. Press to open the On Screen Display submenu. Setup Menu On Screen Display OSD Position •...

  • Page 81: Password

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu continued Notes Password Entry to the password protected area is available to authorised service personel only. • Press to select Password. Press to open the Password control box.

  • Page 82: Communication

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Setup menu continued Notes Communication • Press to select Comunication. Press to open the Comunication submenu. Setup Menu Comunication Projector Address The projector and the remote control need to be set to matching addresses. Read...

  • Page 83: Network

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu continued Notes Network • Press to select Network. Press to open the Network submenu. Input NETWORK 31-FE-A5-81-20-83 Picture LAN MAC Address Connection Geometry Wired DHCP Colour Setup Menu...

  • Page 84: Dhcp

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Setup menu, Network continued Notes DHCP • Press to select DHCP Press to open the DHCP control box. Press to select from: Press to apply the new DHCP setting. LAN IP Address •...

  • Page 85: Lan Subnet Mask

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu, Network continued Notes LAN Subnet Mask • Press to select LAN Subnet Press to open the LAN Subnet control box. LAN IP Subnet cannot be changed if DHCP is set to ON.

  • Page 86: Lan Gateway Mask

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Setup menu, Network continued Notes LAN Gateway Mask • Press to select LAN Gateway Press to open the LAN IP Address control box. LAN IP Gateway cannot be changed if DHCP is set to ON.

  • Page 87: Channel

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Setup menu, Network continued Notes Channel • Press to select Channel. Press to open the Channel control box. The Channel setting is not available if Connection is set to Wired.

  • Page 88: Restore Defaults

    4. Controlling the projector Digital Projection User Manual TITAN XG-500 Setup menu, continued Notes Restore Defaults • Press to select Restore Defaults. Press Restore Defaults will restore The following message will be displayed. all settings to factory defaults. If you are not sure this is...

  • Page 89: Information Menu

    Digital Projection User Manual 4. Controlling the projector TITAN XG-500 Information menu Notes To return to the main menu, press up to three times. When using the menus, press to hide or From the main menu: reveal the On-Screen-Display. •...

  • Page 90: Digital Projection Information

    User Manual TITAN XG-500 Information menu continued Notes Digital Projection Information • Press to select Digital Projection. When using the menus, press to hide or Press to see the DP Information screen. reveal the On-Screen-Display. Information Menu DP Contact Information Page 4.48...

  • Page 91: Userware

    5. Userware Contents Rev C March 2008 Page 5.1...
  • Page 92 5. Userware Digital Projection User Manual TITAN XG-500 Page 5.2 Rev C March 2008...
  • Page 93 6. Maintenance Contents Changing the lamp module ......................6.2 Changing the air fi lter ........................6.3 Cleaning ..............................6.4 ............................6.4 Projector ..............................6.4 Lens ........................... 6.4 Lamp module Rev C March 2008 Page 6.1...

  • Page 94: Maintenance Changing The Lamp Module

    6. Maintenance Digital Projection User Manual TITAN XG-500 Changing the lamp module Notes • Turn the power OFF and allow the lamp to cool for 5 minutes. Always allow the lamp to cool • for 5 minutes before: Unscrew the three door screws, and detach the rear door - the door is tethered, so cannot be removed completely.

  • Page 95: Changing The Air Fi Lter

    Digital Projection User Manual 6. Maintenance TITAN XG-500 Changing the air fi lter Notes • Turn the power OFF and allow the lamp to cool for 5 minutes. Always allow the lamp to cool • for 5 minutes before: Unscrew the three door screws, and remove the rear door.

  • Page 96: Cleaning

    6. Maintenance Digital Projection User Manual TITAN XG-500 Cleaning Notes Turn the projector off before cleaning. Projector Never use strong detergents or solvents such as alcohol Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild or thinners to clean the detergent.

  • Page 97: Appendix

    7. Appendix Contents Troubleshooting ..........................7.2 Specifi cations ............................7.4 ............................ 7.4 Part numbers ............................. 7.4 Optical ............................7.5 Electrical ............................7.5 Physical ............................7.6 Lens Data Dimensions ............................7.8 Input modes supported ........................7.9 Input connections ..........................7.10 ..........................7.10 1.

  • Page 98: Troubleshooting

    7. Appendix Digital Projection User Manual TITAN XG-500 Troubleshooting Problem Possible solutions The projector will not power up. Check that the mains plug is plugged in and that the mains supply is switched on. Check any external fuses or breakers.
  • Page 99 Check that the address setting on the remote control is set either to zero, or to the same as the projector. See section 4. Controlling the projector, Communication menu In the event that this troubleshooting guide has not solved the problem, then contact your Digital Projection dealer or service centre. Rev C March 2008 Page 7.3...

  • Page 100: Specifi Cations

    7. Appendix Digital Projection User Manual TITAN XG-500 Specifi cations Part numbers Projector 106-239 Rigging frame 104-923 Power cable 10A, Europe 102-163 Power cable 13A, North America 102-165 Power cable 10A, United Kingdom 102-180 Remote control 105-023 4x AAA batteries...

  • Page 101: Electrical

    Digital Projection User Manual 7. Appendix TITAN XG-500 Electrical Inputs RGB1, RGB2, DVI, Composite Video, S-Video, Component Pixel clock up to 165MHz Control inputs 1 x LAN 1 x wifi LAN 1 x RS232 serial: 19200 baud, 8 bits, 1 stop bit, no parity...

  • Page 102: Lens Data

    7. Appendix Digital Projection User Manual TITAN XG-500 Lens Data Optical 001-734 001-735 001-736 001-737 throw ratio 0.8 : 1 fi xed 1.2 : 1 fi xed 1.5 - 1.8 : 1 zoom 1.8 - 2.25 : 1 zoom full DMD image width 0.8 : 1...
  • Page 103 Digital Projection User Manual 7. Appendix TITAN XG-500 Optical 001-738 001-739 001-740 throw ratio 2.25 - 3.0 : 1 fi xed 3.0 - 4.5 : 1 zoom 4.5 - 7.0 : 1 zoom full DMD image width 2.25 : 1 3.0 : 1...

  • Page 104: Dimensions

    7. Appendix Digital Projection User Manual TITAN XG-500 Dimensions All dimensions in mm unless otherwise stated Page 7.8 Rev C March 2008...

  • Page 105: Input Modes Supported

    Digital Projection User Manual 7. Appendix TITAN XG-500 Input modes supported Signal Resolution Refresh Total Horizontal Rate number Frequency ( Hz ) of lines (KHz) SDTV 480i 720 x 480 15.73 576i 720 x 576 15.63 HDTV 480p 720 x 480 31.51...

  • Page 106: Input Connections

    7. Appendix Digital Projection User Manual TITAN XG-500 Input connections Notes 1. RGB1 input 5 x 75 ohm BNC Used for computer, progressive video and analog HD video. RGsB RGBS RGBHV YCrCb Pr/Cr G + Sync Pb/Cb Sync H Sync V Sync 2.

  • Page 107: Dvi-D Input

    Digital Projection User Manual 7. Appendix TITAN XG-500 3. DVI-D input Notes 24 way D-type connector TMDS Data 2- pin view of female connector TMDS Data 2+ TMDS Data 2 Shield unused unused DDC Clock DDC Data unused TMDS Data 1-...

  • Page 108: Not Used In This Projector)

    7. Appendix Digital Projection User Manual TITAN XG-500 4. (not used in this projector) Notes 5. Composite video input 1 x 75 ohm BNC PAL or NTSC video 6. S-Video input 4 pin mini-DIN pin view of female connector L Ground...

  • Page 109: Control Connections

    Digital Projection User Manual 7. Appendix TITAN XG-500 Control connections Notes Wired Remote control connection Note that plugging in the remote 3.5mm mini jack control cable will disable the Sleeve infra-red. Power Ring Signal Sleeve Ground Ring LAN connection TCP Port number...

  • Page 110: Serial Control Input

    7. Appendix Digital Projection User Manual TITAN XG-500 Serial control input Notes unused Received Data (RX) The projector is a DTE, so use: Transmitted Data (TX) • a straight cable to connect to a pin view of female connector unused...

  • Page 111: Remote Communications Protocol

    Operation commands and Enhanced commands, contact Message Structure Digital Projection at one of the addresses printed near the front The data type for all data is raw hexadecimal, and all data larger than 1 byte is of this manual, and ask for a formatted little endian i.e.

  • Page 112: Operation Messages

    7. Appendix Digital Projection User Manual TITAN XG-500 Operation Messages Operation messages are constructed using the following format: Header Type Size Oper’n Operation Reserved type 2 bytes 1 byte 2 bytes 2 bytes 1 byte 2 bytes 2 bytes Data...

  • Page 113: Enhanced Messages

    Digital Projection User Manual 7. Appendix TITAN XG-500 Enhanced Messages Enhanced messages are constructed using the following format: Header Type Size Data type Data length (n) 2 bytes 1 byte 2 bytes 2 bytes 2 bytes 2 bytes Data Byte #...

  • Page 114: Operation Command Examples

    7. Appendix Digital Projection User Manual TITAN XG-500 Operation Command examples Notes All operation commands are located at bytes 9 &10. All values are located at bytes 17 & 18 unless otherwise indicated Spaces in example messages are for visual clarity and should...

  • Page 115: Source (3702)

    Digital Projection User Manual 7. Appendix TITAN XG-500 Source (3702) Notes Projector source select Value Spaces in example messages are for visual clarity and should RGB1 not be sent as part of the message. RGB2 In the example messages the CRC is set to 5858h. This value will be ignored.

  • Page 116: Brightness (E502)

    7. Appendix Digital Projection User Manual TITAN XG-500 Brightness (E502) Notes Adjusts Brightness -128 — +127 (00h - FFh) Range: Spaces in example messages are for visual clarity and should Centre (0): 128 (80h) not be sent as part of the message.

  • Page 117: Contrast (E602)

    Digital Projection User Manual 7. Appendix TITAN XG-500 Contrast (E602) Notes Adjusts Contrast -128 — +127 (00h - FFh) Range: Spaces in example messages are for visual clarity and should Centre (0): 128 (80h) not be sent as part of the message.

  • Page 118: Shutter (Cf02)

    7. Appendix Digital Projection User Manual TITAN XG-500 Shutter (CF02) Notes Closes and opens shutter Target Value Spaces in example messages (Set) (Get) are for visual clarity and should not be sent as part of the Shutter Close message. Shutter Open In the example messages the CRC is set to 5858h.

  • Page 119: Quick Reference Chart

    Digital Projection User Manual 7. Appendix TITAN XG-500 Quick Reference chart Rev C March 2008 Page 7.23...
  • Page 120 Digital Projection User Manual TITAN XG-500...

Table of Contents
