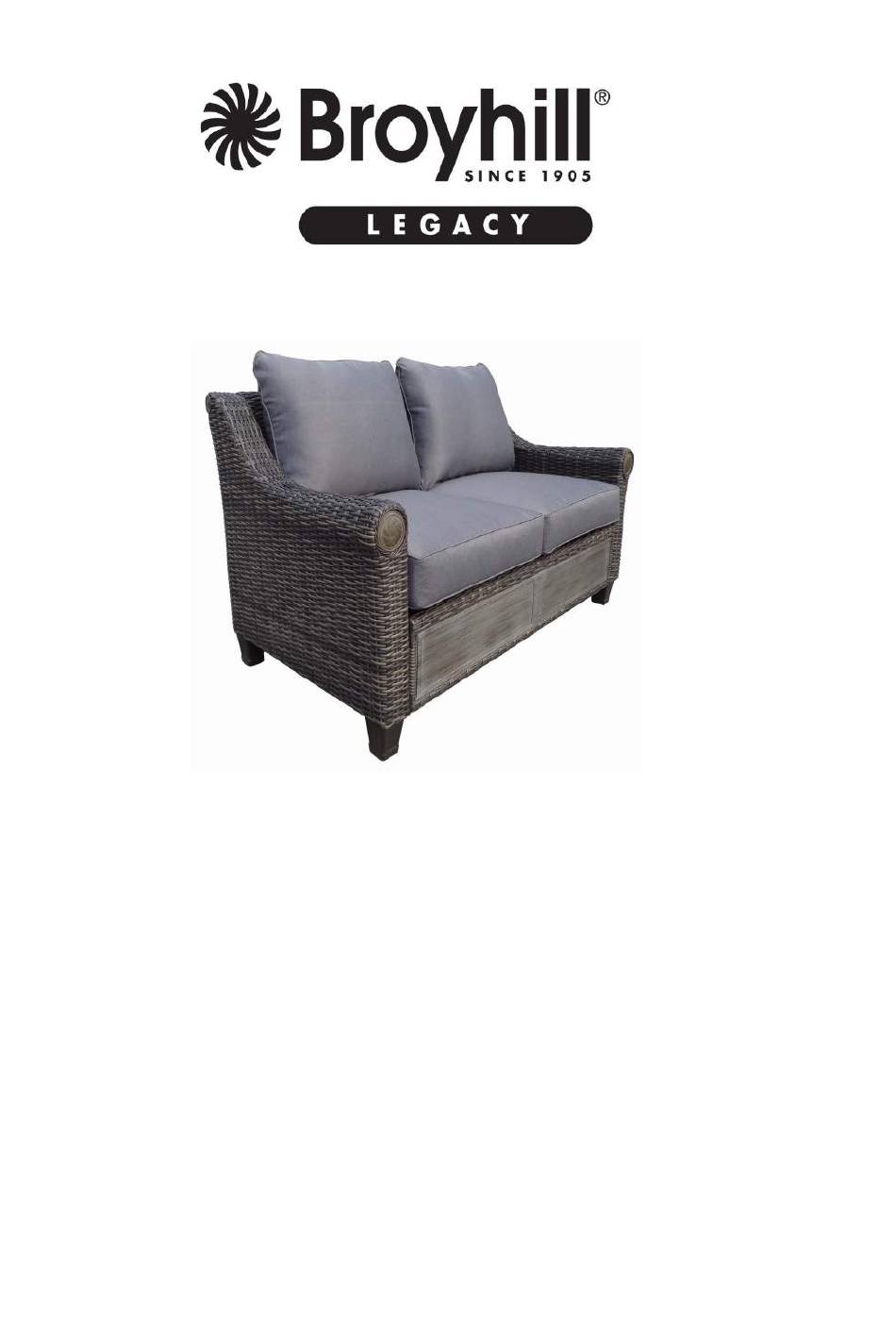

- Page 1 ASSEMBLY INSTRUCTIONS ITEM# : GB21-803 SKU# : 810500149 THORNWOOD AW WICKER TWO SEAT SOFA WITH CUSHION Need help? We are here for you! 1-888-733-8169 Toll Free Or email us at customerservice_01@yeah.net,customerservice_02@yeah.net customerservice_03@yeah.net...
- Page 2 GENERAL BEST PRACTICE FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Helpful hints provided along the way Retain these assembly instructions for future reference.
- Page 3 PARTS LIST: Part Image Part Image Part No. Part No. Sofa Back Back Cushion Sofa Seat Sofa Foot Right Arm Bolt (M10x110mm) Light Arm Bolt (M6x25mm) Seat Cushion Bolt (M6x45mm) Tools...
- Page 4 STEP 1 PART REQUIRED: 2, 3 & 4 Keep the bolts loose. STEP 2 PART REQUIRED: 1, 3 & 4 Keep the bolts loose. Screw in half length of the bolt Slide in the bolt to the die cut 4、3...
- Page 5 STEP 3 PART REQUIRED: 1, 2, 3 & 4 Keep the bolts loose. STEP 4 PART REQUIRED: 1, 2, 3 & 4 Keep the bolts loose.
- Page 6 STEP 5 PART REQUIRED: 3, 4 & 7 Keep the bolts loose. Fix the feet and secured by bolts STEP 6 PART REQUIRED: 5 & 6 Tighten all bolts. Finished! Warranty One-year limited warrantly. Proof of purchase (dated register receipt) is required for warranty claims. It remains the customer's responsibility for freight and packing charges to and from the service center.
