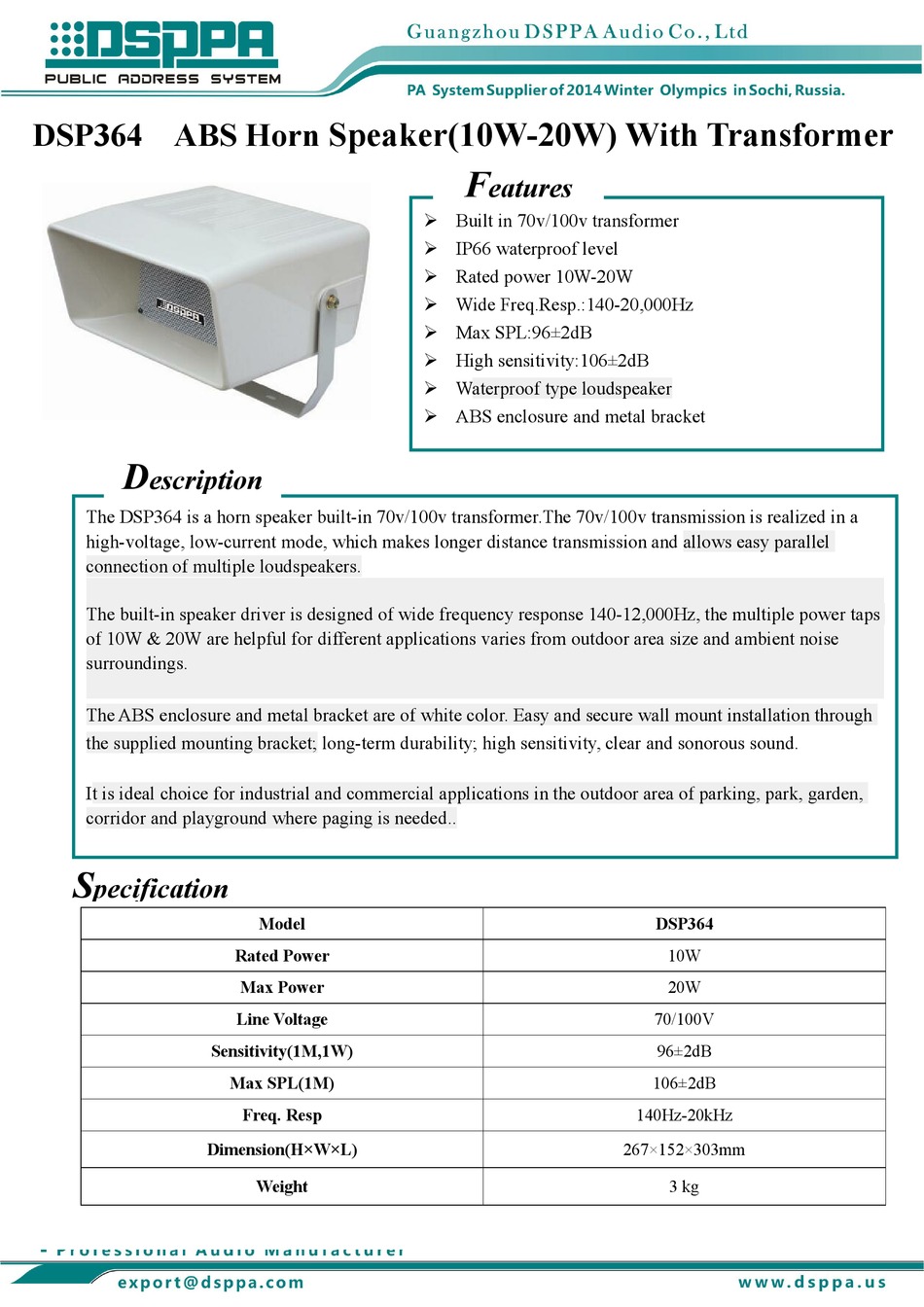

DSPPA DSP364 Quick Start Manual

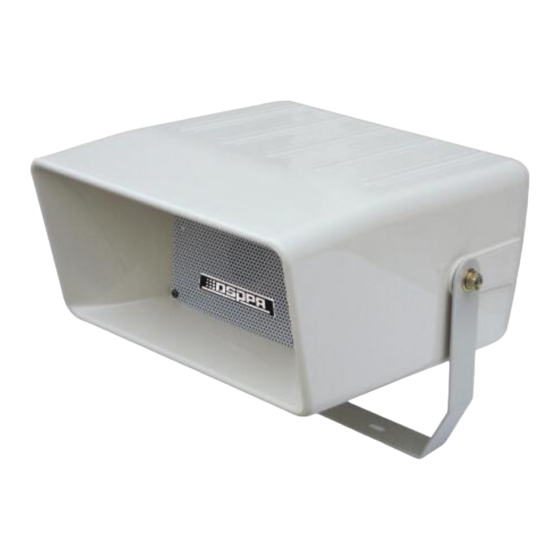

DSP364 ABS Horn Speaker(10W-20W) With Transformer
D
escription
The DSP364 is a horn speaker built-in 70v/100v transformer.The 70v/100v transmission is realized in a
high-voltage, low-current mode, which makes longer distance transmission and allows easy parallel
connection of multiple loudspeakers.
The built-in speaker driver is designed of wide frequency response 140-12,000Hz, the multiple power taps
of 10W & 20W are helpful for different applications varies from outdoor area size and ambient noise
surroundings.
The ABS enclosure and metal bracket are of white color. Easy and secure wall mount installation through
the supplied mounting bracket; long-term durability; high sensitivity, clear and sonorous sound.
It is ideal choice for industrial and commercial applications in the outdoor area of parking, park, garden,
corridor and playground where paging is needed..
S
pecification
Dimension(H×W×L)
Model
Rated Power
Max Power
Line Voltage
Sensitivity(1M,1W)
Max SPL(1M)
Freq. Resp
Weight
F
eatures
 Built in 70v/100v transformer
 IP66 waterproof level
 Rated power 10W-20W
 Wide Freq.Resp.:140-20,000Hz
 Max SPL:96±2dB
 High sensitivity:106±2dB
 Waterproof type loudspeaker
 ABS enclosure and metal bracket
DSP364
10W
20W
70/100V
96±2dB
106±2dB
140Hz-20kHz
267×152×303mm
3 kg
