I003935 Mirabella Genio Wi‐Fi Smart Background Light
TO ENSURE THE SAFE AND SATISFACTORY OPERATION OF THIS SET PLEASE READ THESE INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE
SAFETY INFORMATION
•
Remove set from packaging before connecting to a power supply.
• Please note that we recommend this product be powered with a standard 5V 2A USB adaptor (not included).
Powering this unit with an adaptor smaller than a 2A rating may cause flickering.
•Ensure that the cable is completely uncoiled whilst set is in use.
•LED bulbs are non‐replaceable.

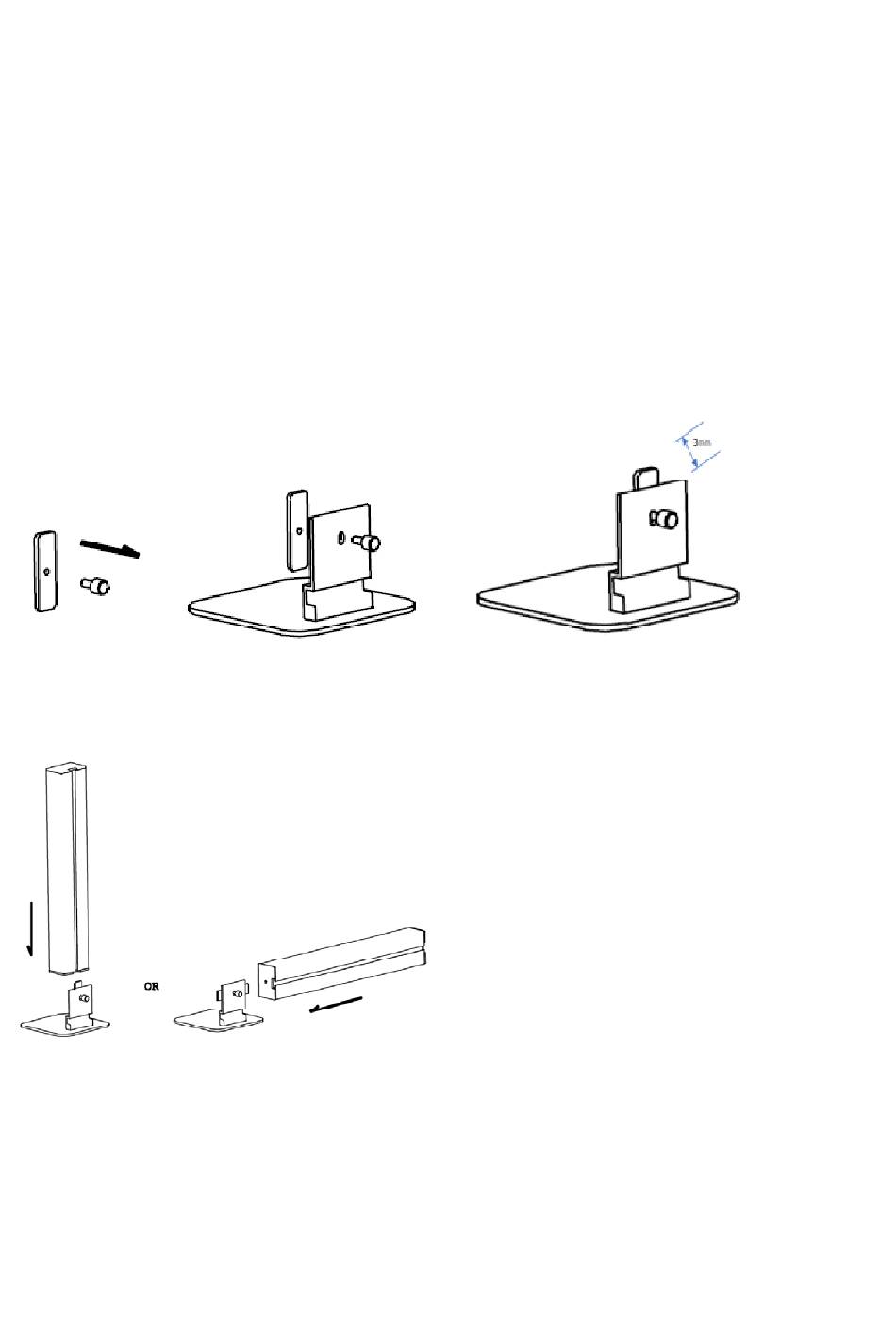

PRODUCT INSTALLATION
:
When tightening the bolt to the metal sleeve, do not
tighten, ensure that there is a gap of at least 3mm. This
will allow the lamp tower to slide into position.
Once the lamp tower is in position, Tighten the nut to
lock the tower.
The Lamp tower can be orientated either
Vertically or Horizontally.
Advertisement
Related Manuals for MIRABELLA Genio I003935
Summary of Contents for MIRABELLA Genio I003935
- Page 1 I003935 Mirabella Genio Wi‐Fi Smart Background Light TO ENSURE THE SAFE AND SATISFACTORY OPERATION OF THIS SET PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE : SAFETY INFORMATION • Remove set from packaging before connecting to a power supply. • Please note that we recommend this product be powered with a standard 5V 2A USB adaptor (not included). Powering this unit with an adaptor smaller than a 2A rating may cause flickering. •Ensure that the cable is completely uncoiled whilst set is in use. •LED bulbs are non‐replaceable. PRODUCT INSTALLATION When tightening the bolt to the metal sleeve, do not tighten, ensure that there is a gap of at least 3mm. This will allow the lamp tower to slide into position. ...
- Page 2 When connecting the lamp towers to the Wi‐Fi controller, make sure the arrows are aligned with each other. Wi‐Fi pairing information (BK, EZ and AP method) 1. Download “Mirabella Genio” App from the APP store or Google Play and register an account. 2. Connect your mobile phone to 2.4GHz Wi‐Fi network. (Please note, that this unit does not support 5GHz Wi‐Fi) 3. Connect the USB cable to a standard USB port or USB adaptor (must have 5V 2A or greater output) 4. Wait for the light to commence to blink. If the background light does not start to blink when first powered on, power off the unit by unplugging the USB from power source, then power it on again by plugging the USB back into power source. Press and hold the ON/OFF button on the Wi‐Fi controller, until it starts to blink. Bluetooth BK method Our latest genio smart Wi‐Fi lighting range has a Bluetooth pairing assist function, to take advantage of this function, please ensure that he Bluetooth on your phone is turned on. Make sure the light is blinking fast (2 blinks per second), Open Mirabella Genio app, tap on the plus symbol , The APP will now automatically find the lights, once the app identifies the lights, follow the instructions below finalise the pairing of the lights to the App. ...
- Page 3 Fasting blinking EZ method (when the Bluetooth on the phone is turned off) 1. Open the Mirabella Genio app, tap on the plus symbol. 2. Select Genio Tube light under the smart lighting, then follow the in‐app prompts to connect tube light to your app Slow blinking AP method (1 blinking per 2 second) If the fasting blinking method didn’t work for you, please try the slow blinking AP method. While the light is fast blinking, press and hold the ON/OFF again and wait for the light to start blinking slowly (1 blink per second). 1. Open the APP this time on the reset the device first screen . 2. Tap on EZ mode located in the top right hand corner of the screen, select AP Mode. 3. Now Confirm indicator slowly blinking , tap Next, then Go to connect. The app should automatically take you to your Wi‐Fi screen, if it does not get out of the Genio app and go into your phone Wi‐Fi screen page. 4. Search for a Wi‐Fi signal commencing with SmartLife_XXX, once found select it to complete the pairing process. ...
- Page 4 is turned on for Genio APP FAQ: Q. I have internet/power outage and device went offline and does not reconnect back online by itself? A. Go the device’ settings page (pencil or ... icon), look for “remove device” Remove it and reset the device and pair it again through the app. If you still having issue with pairing after use AP method, please check our online FAQ pages on www.mirabellagenio.com.au/faqs Mirabella International Pty Ltd 1 Mirabella Drive Tullamarine VIC. 3043 Australia t: 1800 636 528 genio@mirabella.com.au...
