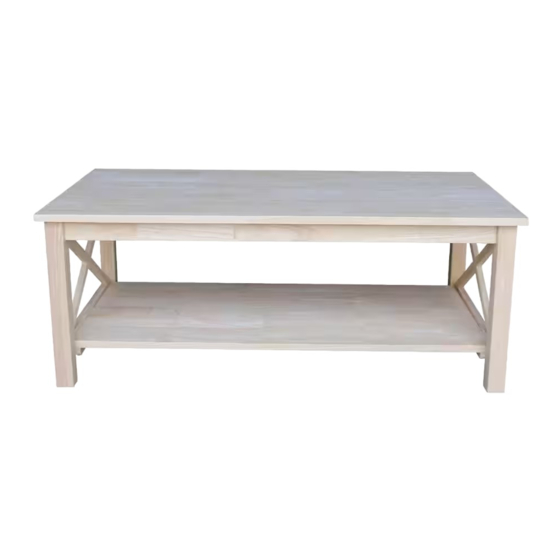

- Page 1 ASSEMBLY INSTRUCTIONS Description : HAMPTON COFFEE TABLE Item No. : OT-70C ITEM NO.: OT-70C Printed in Vietnam REVISED SEP 05, 2014 - 1 -...
- Page 2 When unpacking, please carefully not to discard any parts with the packaging. Before continuing, please make sure you have all of the following parts: Description Q’ty Sketch Description Q’ty Sketch Side Frame Shelf ITEM NO.: OT-70C Printed in Vietnam REVISED SEP 05, 2014 - 2 -...
- Page 3 Attach side frame (C) to the top (A) with bolt (1), washer (2) and (3) as shown below. Tighten with Allen key (4). Attach side frame (C) to the shelf (B) with bolt (1), washer (2) and (3) as shown below. Tighten with Allen key (4). ITEM NO.: OT-70C Printed in Vietnam REVISED SEP 05, 2014 - 3 -...
