- Page 1 SAFETY AND OPERATING MANUAL 1200W 50 Litre Dust Extractor BDE1200 ORIGINAL INSTRUCTIONS BDE1200...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the Product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. BDE1200... - Page 4 Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. BDE1200...
- Page 5 Supervise children. This will ensure that children do not play with the dust extractor. e) The dust extractor may only be used and stored indoors. The penetration of rain or moisture into the dust extractor lid increases the risk of an electric shock. BDE1200...
- Page 6 Otherwise, you could possible inhale dust. o) Do not use the dust extractor as a seat. The dust extractor could become damaged. p) Use the mains cable and the vacuum hose carefully. Other persons could be harmed. BDE1200...
-
Page 7: Symbols & Cable Rating Chart
Caution! Wear safety goggles. instructions to reduce the risk of injury. Caution! Risk of Injury! Do Caution! Wear ear defenders. The not reach into the running impact of noise can cause damage saw blade to hearing. Caution! Wear a dust mask. BDE1200... -
Page 8: Machine Details And Product Features

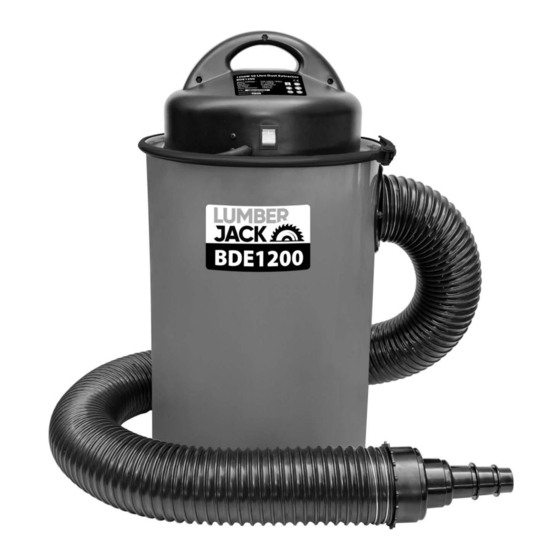

1. Motor Casing Nett Weight - 9.0kg 2. Drum 3. On/Off Switch Package Contents: 4. Locking Strap 1200W Dust Extractor 5. Collector Hose Filter Cartridge 6. Hose Clamps 2m Hose 7. Hose Coupling 5 Piece adaptor Set BDE1200 AIR6V AIR6V AIR6V AIR6V... -
Page 9: Assembly
Take all parts out and check to make sure that you have everything listed below. 8. Filter cartridge 9 .Filter bag 5 .Exhaust hose 6. 2 x hose clamps 7. Hose coupling d 100 mm BDE1200 AIR6V AIR6V AIR6V AIR6V... - Page 10 – Place the entire section into the drum (2) and secure with locking strap (4). – Attach the other end of the collector hose (5) to the hose coupling (7) using the other hose clamp (6). BDE1200 AIR6V AIR6V AIR6V AIR6V...
-
Page 11: Operation, Maintenance And Service
Shavings Container (2) Wipe out the container (2)from time to time with a commercially available, non-scouring cleaning agent and allow to dry. BDE1200 AIR6V AIR6V AIR6V AIR6V... -
Page 12: Lumberjack Guarantee
If a return is requested by the Authorised Dealer or 1.2.3 If asked to do so by Lumberjack or its Lumberjack, you will be provided with a Returns Authorised dealer, you return the product at Material Authorisation number which must be your own cost to Lumberjack’s or supplying... - Page 13 Lumberjack. If you include a contact number with this it will speed your claim 2.4 Please note that it is essential that the letter of claim reaches Lumberjack on the last day of this Guarantee at the latest. Late claims will not be considered.
-
Page 14: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the DUST EXTTRACTOR (BDE1200) Is in compliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by TÜV Rheinland LGA Products GmbH - Tillystra ße 2 –... -
Page 15: Parts List
Hex Nut M5 Right Cover Adaptor - II Cross Self-Tapping Screw M5*45 Adaptor - III Cross Self-Tapping Screw M5*25 Adaptor - IV Hex Nut M5 Adaptor- V Left Cover Capacitor Cable & Plug Switch Plug Clamping Spring Washer BDE1200 AIR6V AIR6V AIR6V... -
Page 16: Parts Diagram
Parts Diagram BDE1200...
