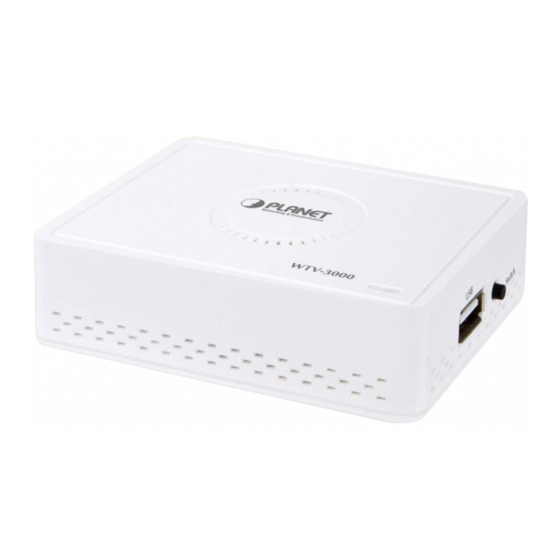

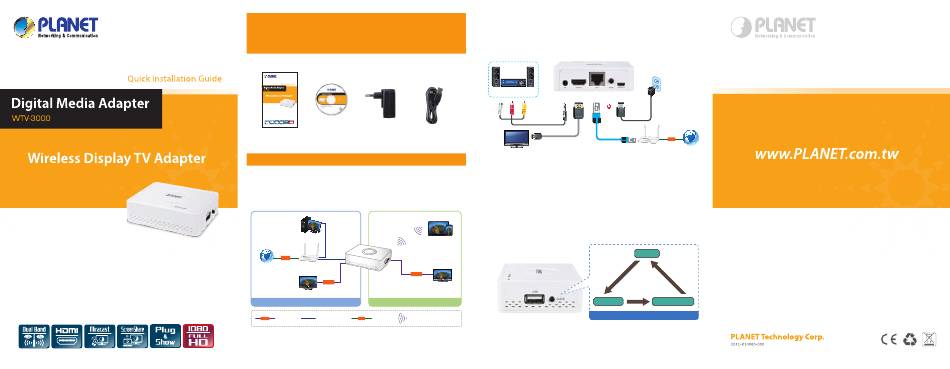

Planet WTV-3000 Quick Installation Manual

Verify the Contents Inside the Package Box
The package should contain the following items plus WTV-3000.
If any item is missing or damaged, please contact the seller
immediately.
Quick Guide CD-ROM Power Adapter Micro USB Cable
How to Connect the TV Adapter
Before installing the TV adapter, make sure your PC, smart phone
or tablet-PC is successfully connected to the Internet through a
broadband service. If there are any problems, contact your ISP to
resolve them first.
PC
ADSL
Router
Internet
Video
Video
TV
ScreenShare Miracast/AirFun
Video Line 2.4/5GHz 802.11a/b/g/n
1000Base-T UTP ADSL 2/2+
Video ADSL
- 1 -
Step 1. Plug in the power cord.
Step 2. Connect the HDMI cable to the HDMI output of the
WTV-3000 and to the HDMI input of your TV/Monitor.
Step 3. Push the power button to turn on the WTV-3000.
Stereo Amplifier
Audio/ Power
HDMI LAN DC-IN
Video Out Button
TV
Step 4. Follow the on-screen instructions to set up the WTV-3000.
The system default mode is AirFun mode, which means it is
ready to receive videos, music, and photos from your PC,
laptop, smart phone or tablet.
Step 5. You can switch between ScreenShare mode and Miracast
mode by pushing the button on the side of WTV-3000
(next to the USB port) twice; just follow the display on the
Monitor.
TV
Miracast
- 2 -
ADSL
Router / Switch Internet
AirFun
ScreenShare
Mode Switch
