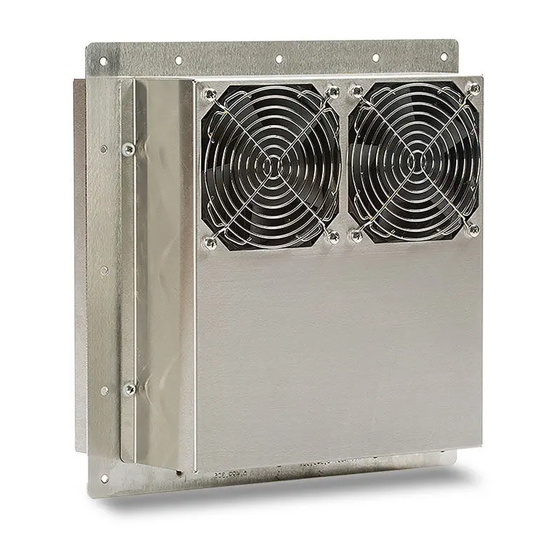

- Page 1 EIC SOLUTIONS, INC EIC SOLUTIONS, INC EIC SOLUTIONS, INC EIC SOLUTIONS, INC ..Thermoelectric Air conditioner installation and operation manual FOR 800 Btu MODEL #’S AAC-141A-4XT AAC-141A-4XT-HC AAC-141A-4XT-XXXXX Cooling Solutions for Cooling Solutions for Cooling Solutions for...
-
Page 2: Table Of Contents
STANDARD SPECIFICATIONS ..................5. APPENDIX STANDARD CUTOUT ....................................12 NARROW FLANGE CUTOUT EXTENSION FRAME CUTOUT ..................EIC SOLUTIONS INC. EIC SOLUTIONS INC. EIC SOLUTIONS INC. EIC SOLUTIONS INC. 700 VETERANS WAY, SUITE 200 WARMINSTER, PA 18974 PHONE 1-215-443-5190 or 1-800-497-4524... -
Page 3: General Information
Your EIC Solutions Thermoelectric Air Conditioner operates on this principle so there is no compressor and no expensive, ozone depleting CFC’s. EIC’s air conditioners use Thermoelectric “modules”... -
Page 4: Installation
(Fig. 2.2) In either orientation, issues regarding access should be considered and minimum clearances must be maintained as outlined in Section 2.1 of this manual. 4 4 4 4 -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... - Page 5 FIGURE 2.1 FIGURE 2.2 5 5 5 5 -800-497-4524 EIC SOLUTIONS, INC 215-443-5190...
-
Page 6: Preparing The Enclosure
Do not tighten them completely. If you are using a vertical drip pan, you will need to install the long screw in the center hole in the bottom flange. 6 6 6 6 -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... -
Page 7: Installing The Air Conditioner
The cold side fan always runs when the unit is powered on to circulate air within your enclosure thereby eliminating any “hot spots”. The hot side fan will only run when the air conditioner is cooling. 7 7 7 7 -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... -
Page 8: Operation
Never allow the cold side of your unit to get wet Keeping the hot side heat sink fins free from any insulating build-up of dirt or dust will ensure long, trouble-free operation of your air conditioner. 8 8 8 8 -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... - Page 9 NEVER EXPOSE THE COLD SIDE OF THE AIR CONDITIONER (INSIDE THE ENCLOSURE) TO WATER. If you have any questions about any aspect of your EIC air conditioner, don’t hesitate to call us at the numbers listed below. 9 9 9 9 -800-497-4524 EIC SOLUTIONS, INC 215-443-5190...
-
Page 10: Specifications
Sound Level at 1 meter 62 dBA -4 to 140 °F Operating Temperature Range -20 to 60 °C -4 to 185 °F Storage Temperature Range -20 to 85 °C ±1.0 °F Cooling Thermostat Accuracy ±0.6 °C -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... -
Page 11: Appendix A. Standard Cutout
Appendix A Enclosure Cutout for 800 BTU Air Conditioner STANDARD FRAME HOLES TO BE 8-32 TAP -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... -
Page 12: Narrow Flange Cutout
Appendix B Enclosure cutout for 800 BTU air conditioner WITH NARROW FRAME OPTION. HOLES TO BE 8-32 TAP -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... -
Page 13: Extension Frame Cutout
Appendix C Enclosure cutout for 800 BTU air conditioner WITH EXTENSION FRAME OPTION. HOLES TO BE .203” -800-497-4524 EIC SOLUTIONS, INC 215-443-5190...
