Key Pad
The six keys on the CP430 include one menu key and five functional keys (F1-
F5), described below. Press the menu key to slide out the innovative slide-out
menu.
The functional keys can also be defined in CP400Soft and used as "Quick-
buttons", for example, to set an ON/OFF value, to change a screen etc. For
further information about the slide-out menu, please see the CP400Soft User's
Manual.
When a key is pressed, the operator terminal will make a "beep" sound to signal
that a command is pressed. The default setting, a 200 ms beep, can be config-
ured in CP400Soft.
ABB, 1SBC159103M0201
Operation

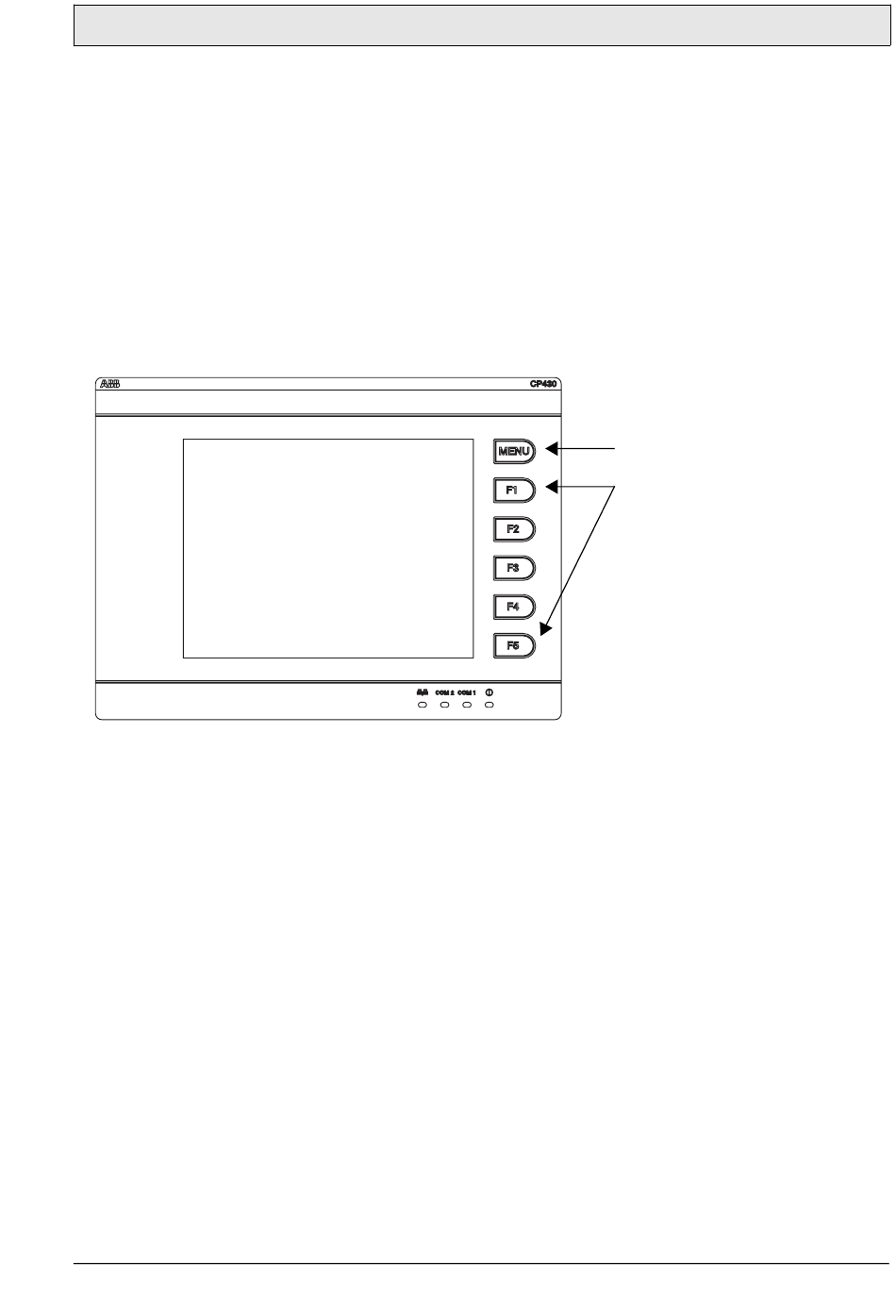

Menu key
Functional keys F1-F5
