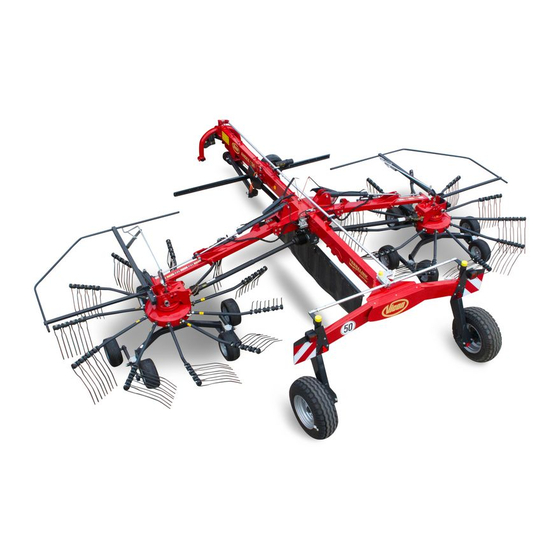

724 / 724 Hydro
Operating manual
Original operating manual
Edition
Date of print
Language
Machine number
Model
Document number
Andex
02.2012
04.2012
EN
VF69670236 –
VF6967
VF16648838.EN
