BANKNOTE COUNTER
USER MANUAL
2020
User Manual
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the 820 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

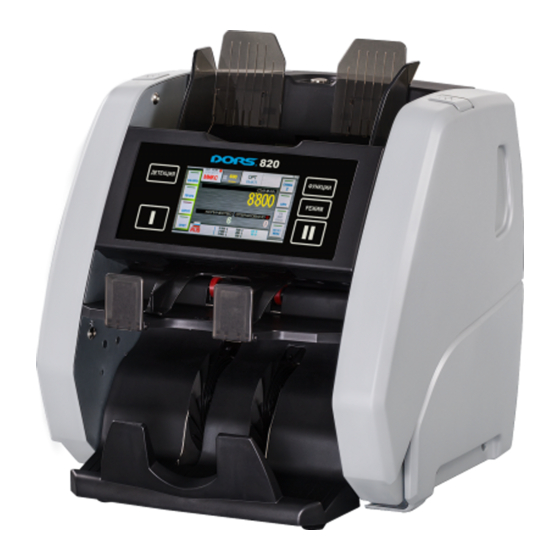

Related Manuals for Dors 820

Summary of Contents for Dors 820

  • Page 1 BANKNOTE COUNTER USER MANUAL 2020 User Manual Version 1.0...
  • Page 2 ATM parameters menu................61 POCKETS menu..................61 MESSAGES IN COURSE OF OPERATION............62 MESSAGES IN COURSE OF COUNT............... 63 CONNECTION OF EXTERNAL DEVICES............66 MAINTENANCE..................66 TROUBLESHOOTING.................. 66 TRANSPORTATION AND STORAGE..............67 WARRANTY AND SUPPORT................67 FIRMWARE UPDATE................... 68 Banknote counter DORS 820...
  • Page 3 Power..............AC 100-240 V, ~50/60 Hz Dear Customer, Current consumption..........2A (100V); 1A (240V) We would like to thank you for purchase of DORS 820, two pocket banknote Operation temperature range....... 10°C… 35°C counter that recognizes value and authenticity of banknotes of different Relative humidity, 25°C..........
  • Page 4 CONTENTS Safety Precautions Delivery Set: BANKNOTES COUNTER DORS 820......... 1 pc. To avoid personal injuries and to ensure a reliable counter operation, please Power cord.................. 1 pc. comply with the following operating and safety requirements: Stylus..................2 pcs. USB cable (A-B)................1 pc.
  • Page 5 16 USB connector 12 Power switch 17 External display connector 13 Fuse 18 Cover 14 Power cable socket 19 Ethernet connector (DORS 820 Е) 15 External printer / CCTV connector Fig. 5 5 UV transmitting sensors / path input sensors...
  • Page 6 Banknote guide holders holders Fig. 8 Currency base Tabs Loading progress bar After the self-test the counter returns beep signal and the display will show Clamps Fig. 9 the main menu (Fig. 13): Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 7 After the – UV-T, UV-R detection: off banknotes have been removed out of the stacker, the device resumes operation automatically. Factory default settings may be revised to match customer requirements. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 8 (reject reason is available in REPORT Warning: When S/N or Fitness mode is on, only two counting speeds (600 menu). and 1000 notes/min) are available. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 9 • PRINTER (AUTO) – automatic output to the printer. PRINTER (MAN) – manually send info to the printer by touching icon (see Fig.13 pos.6). • DORS 85 / DORS 90 – select external display. POCKET LIMITS The icon (see Fig.17) will open pockets limit menu (see Fig. 20).
  • Page 10 Or select the previous mode to disable the changes. BATCH CONTINUE Batch Сontinue is the counting mode which allows accumulating the counting results while there are banknotes in the hopper. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 11 Select one of the preset themes of graphic user interface (GUI). Selected – exit to Default visual mode. theme is marked by blue check-box at the left (Fig. 26). Fig. 24 Fig. 26 Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 12 The figures given below show the control panel appearance for various users: Fig. 28 is for 1st user (I); Fig. 29 is for 2nd user (II). Regular visual mode: Fig. 28 USER 1 keys are highlighted USER 2 indicator Fig. 31 Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 13 («BATCH REPORT» see Fig. 35b). Fig. 33 Fig. 35 Touch here to open currency Touch here to report open the detailed report Quantity Amount Rejected banknotes displayed quantity is for reference and may differ from actual. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 14 Touch the currency again to delete a currency from the Auto currencies list. Touch and hold the currency for one second to select it as a single one. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 15 NEW) is available not for every currency. replaced with a list of all denominations of selected currency (see Fig. 39). The colour may vary depending on selected theme. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 16 «All currencies are allowed except Touch key to call REPORT submenu (Fig. 46) showing the information special ones» (see Fig. 44). about counted and rejected banknotes. Fig. 44 Fig. 46 Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 17 User I and User II Fig. 49 Fig. 50 Touch key to clear the reports. An acknowledgement window may appear (see Fig. 45). Touch to exit the report screen. Fig. 48 Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 18 If required, adjust the banknote feeder gap («+» to increase the gap) for operation with thicker banknotes. To achieve the required gap, turn screw 1 (Fig.1) counterclockwise. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 19 UNFIT CORNER Fig. 53 UNFIT SPOT Remove the banknote. Banknote fitness doesn't meet the preset specifications UNFIT GRAFFITY UNFIT HOLE UNFIT DIRT UNFIT TAPE SERIAL Banknote SN doesn't match selected criteria. NUMBER Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 20 «FACE» - the banknotes will pass to the stacker if they were placed in the hopper face side up (face side is determined by issue bank), see Fig. 58. The other banknotes will be sent to reject pocket. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 21 This mode is for visual SN control or sending SN data to the computer. Visual SN control is available in REPORT submenu or by touching REJECT area on the main screen. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 22 – 2 SN formula violation – 3 Missing characters, SN is probably in the black list – 4 SN: No detection result received – 5 SN matches the data in the black list Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 23 -2 SN doesn't match the formula preset for the detected currency. -3 Missing characters, SN is probably in the black list -4 SN processing is incomplete. -5 SN matches the data in the black list Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 24 Selected currency, denomination and issue are displayed in the upper part of the screen. If any of the above is not selected (Fig. 70), then trust level setting is unavailable (Fig. 74). — Default password is DEMO (Fig. 69). Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 25 7 The key will open a window (Fig. 77) to save actual trust level values for all The checkbox adds detected S/N text to the printer output data. the made changes. 8 Exit key. — T he computer must have SN receiving and saving software installed and launched. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 26 A page with the counts will open in the browser (see Fig. 84). It contains the information about the available single counts: their number, a unique number for each count, the number of Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 27 To download the archive using a browser, click on the link of the archive. To delete all archives from the device’s memory, click the «clean» button (see Fig. 84). External software should provide saving and/or deleting of the archives as they become available. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 28 Push and then select required operation mode Fitness screen is shown This password also applies to the «UNFIT PARAM.» (see Fig. 94, 95) and the «ATM PARAM.». in Fig. 89. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 29 When ATM mode is on the counter will select the banknotes to be used in To open reject report touch key or on the main screen. ATM or other cash self-service machines. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 30 (see Fig. 99)), then setting the FIT mode parameters is not available (see Fig. 100). — Default password is «DEMO» (see Fig. 95).. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 31 2 The slider to set the current value from 0 to 255. Default value (128) allows rejecting the banknotes with the defects beyond the standard allowed value Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 32 Fig. 105 Fig. 103 Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 33 Banknote path There are banknotes in the stacker Clean the stacker and reject pocket is closed. or reject pocket after closing the Clean the pockets path. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 34 («+» means gap increase) for operation with thicker bank- notes. To get the required gap, turn screw 1 (Fig. 1) counter-clockwise. * – Local network and FTP server settings must be adjusted by administrator. Banknote counter DORS 820 Banknote counter DORS 820...
  • Page 35 WARRANTY AND SUPPORT PRINT. The counter allows you to output information simultaneously to the DORS authorizes the local distributors to provide after-sales technical external display and receipt printer or to external display and CCTV. support to the customers. In case of machine's malfunctioning, please contact MAINTENANCE your local supplier.
  • Page 36 – USB socket to connect USB cable from counter delivery set. FW upgrading procedure: • Connect USB port of DORS 820 (pos. 16 in Fig. 2) to your PC by USB Fig. 108 cable. Warning: don’t try connecting USB cable to the external display connector (pos.
