OttLite SCEQB00Z-CA Quick Start Manual

Q
Diagram 3
CAUTION!
Battery Safety: This
product contains a button
battery. If swallowed, it
could cause severe injury
or death in just 2 hours.
Seek medical attention
immediately.
SEE ADDITIONAL
SAFETY WARNING.
K
J
H
Diagram 1 Diagram 2

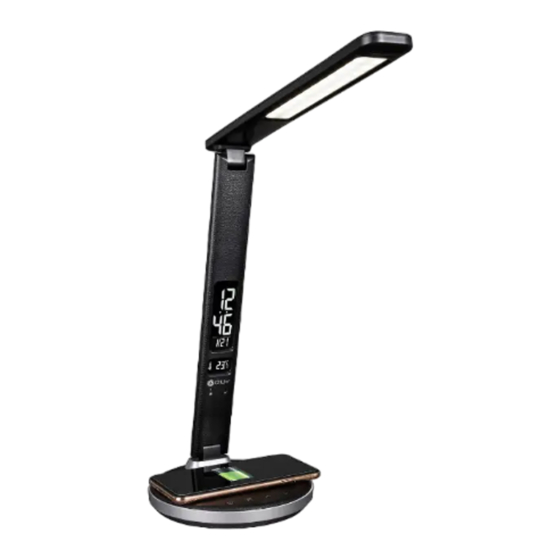

LED Sanitizing Lamp with Wireless Charging
SCEQB00Z-CA SCEQBG5Z-CA 1532520
INS210641
D
L
C
G
N
(ClearSun mode)
F
B
E
ENGLISH
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with your new OttLite
WARNING: To prevent electric shock, make sure the lamp is not plugged in until all
steps are complete.
NOTE: THIS UNIT IS FULLY ASSEMBLED
1. Remove lamp from packing, placing lamp body base (A) flat on a steady surface.
2. Connect power adapter input (H) into connector (J) in the rear-bottom of the lamp.
3. Plug the power adapter (G) into a standard household 120V AC outlet. Note: Only
use with the supplied power adapter to avoid damage or fire.
4. Turn the lamp ON & OFF using power switch in touch panel (B) located on top of
base (A).
5. Touch panel (B) includes multiple "touch" keys that control the lamp's mode and
brightness within each mode. This lamp provides five levels of brightness. See Touch
Key Panel Instructions section for operating instructions.
6. Control panel (Q) is used to set the lamp's calendar, alarm setting and display screen
light. See Calendar and Clock Setting section for operating instructions.
7. Wireless charger for Qi-certified devices (F) is located in the center of the base (A).
See Wireless Charging Instructions section for details.
8. To reposition the light, hold base (A) steady and grasp either lamp body (C) or shade
(D) depending on needed adjustment
9. Refer to Diagrams 1 and 2 for lamp maximum adjustment range. NOTE: DO
NOT FORCE the shade or lamp body outside allowable adjustable range as
excessive adjustment may cause damage.
TOUCH KEY PANEL INSTRUCTIONS:
To power lamp and operate LED settings, slightly touch required "key" to achieve
the following:
• Turn lamp "ON/OFF": touch
• To adjust brightness: touch
M
• Touch and hold key to change modes. The three modes are;
ClearSun LED, Sanitizing, and ClearSun + Sanitizing. ClearSun + Sanitizing
mode utilizes both the Clearsun LEDs and Sanitizing LEDs simultaneously to
provide continuous cleaning while using the lamp.
NOTE: The active mode will be indicated by the lights (N and P) next to the icons.
If indicator light (N) is illuminated, ClearSun mode is on. If indicator light (P) is
illuminated, Sanitizing mode is on. If both indicator lights (N and P) are illuminated,
Clearsun + Sanitize mode is on.
CALENDAR AND CLOCK SETTING:
NOTE: Control Panel (Q) to set Calendar and Clock is located on the backside of
lamp body (C).
P
• To set time, push key and the "hour" will flicker,
ˆ ˇ
(Sanitizing mode)
then touch (up) key and
setting, touch key again to set the "minute," "year," "month" and "day."
M
• In setting mode, touch to exit function or operation will stop in one minute.
• When not in setting mode, touch
"24h" display.
ALARM & SNOOZE FUNCTION SETTING:
• To set the alarm time, press M button located on control panel (Q) to activate alarm
setting mode. In alarm mode, touch
"Minute," "Snooze," "Music", then exit. NOTE: There are 8-music tones to select.
ˆ ˇ
• Touch (up) key and (down) key to adjust alarm time sequence.
• To activate the alarm press M button to activate the alarm setting mode and then
ˆ ˇ
press (up) key and (down) key to turn ON/OFF alarm and snooze function.
will light up on digital display to indicate alarm is set.
snooze is activated.
A
• When alarm time is reached, alarm will ring for 1-minute, then snooze and ring again.
Touch key to turn off alarm or touch
snooze. NOTE: Snooze defaults to 60-minutes, if loss of power occurs.
TEMPERATURE SWITCH SETTING:
ˇ
(down) key to switch between º F and º C display.
• In normal mode, touch
To adjust display screen brightness, touch
NOTE: Display screen defaults to "highest" brightness setting when power initially applied.
U14SC
LED Sanitizing Lamp with Wireless Charging
CONTROL PANEL (Q) icon legend
product.
®
(setting) button – to set calendar; in alarm mode, push
M
(mode) button – push to set alarm and snooze
ˆ
(up) button – In setting mode, push
ˇ
(down) button – In setting mode, push
– Push display key for suitable brightness.
WIRELESS CHARGING INSTRUCTIONS:
Wireless charging requires a Qi-certified device. To determine if your device is
Qi-certified, please visit the Wireless Power Consortium website.
To wirelessly charge a device, perform the following:
• Place the device, which supports Qi wireless charging standard, face up on the middle
of the Qi wireless charging icon (F).
• When the device is centered on the Qi wireless charging icon (F), a solid RED
light (E) will indicate the device is charging properly. NOTE: If RED light is blinking,
this indicates the device is not charging and needs to be properly centered.
• Check the charge level on your device periodically to determine when device is fully
charged. NOTE: Product DOES NOT provide any indication of when device is fully
charged.
CAUTION!
AND PART OF THE PROCESS. CHARGING TIMES VARY BY DEVICE
SAFETY WARNING:
key as needed.
OR INJURY TO PERSONS
or key as needed.
1. Turn lamp off and WAIT UNTIL LAMP HEAD (D) AND ADAPTER (G) ARE COOL
before handling.
2. The LED panel (L) located in shade (D) might get hot after several hours of
continuous use DO NOT place your hands directly on LED light panel.
3. Never use with an extension cord unless the plug can be fully inserted into the
receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by the consumer.
6. INDOOR USE ONLY
NOTE: The important safety instructions appearing in this instruction sheet are not meant
to cover all possible conditions and situations that may occur. It must be understood that
common sense, caution, and care must be used with any electrical product.
(down) key to adjust "hour," after "hour" BATTERY REPLACEMENT
• This lamp uses a CR2032 battery. For battery replacement see diagram 3.
Battery compartment is located on the backside of lamp body (C).
• To remove/install button cell battery: remove battery compartment door
ˆ
(up) key to switch between "12h" and
located in the lower half of body section (C) on back-side of lamp. To remove battery
compartment door turn screw counter-clockwise.
• Button cell battery is to be installed with the "+" or flat side facing upward.
• Attach battery compartment door when finished and re-insert screw.
NOTE: DO NOT over-tighten screw to avoid it being stripped.
button to set alarm time sequence: "Hour,"
SAFETY WARNING:
CAUTION: DO NOT INGEST BATTERY; CHEMICAL BURN HAZARD!
•
will light up to indicate
• This lamp contains a coin/button cell battery. If the coin/button cell battery is
swallowed, it can cause severe internal burns in just two hours and can lead to death.
• Keep new and used batteries away from children.
ˆ ˇ
(up) key or (down) key to activate
• If the battery compartment does not close securely, stop using the product and
keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
NOTE: Coin/button cell batteries are small, single cell devices having a diameter greater
to choose suitable brightness setting.
than their height.
key to turn off alarm.
ˆ
to increase.
ˇ
to decrease.
DEVICE MAY BECOME WARM DURING CHARGING. THIS IS NORMAL
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
REV033121
