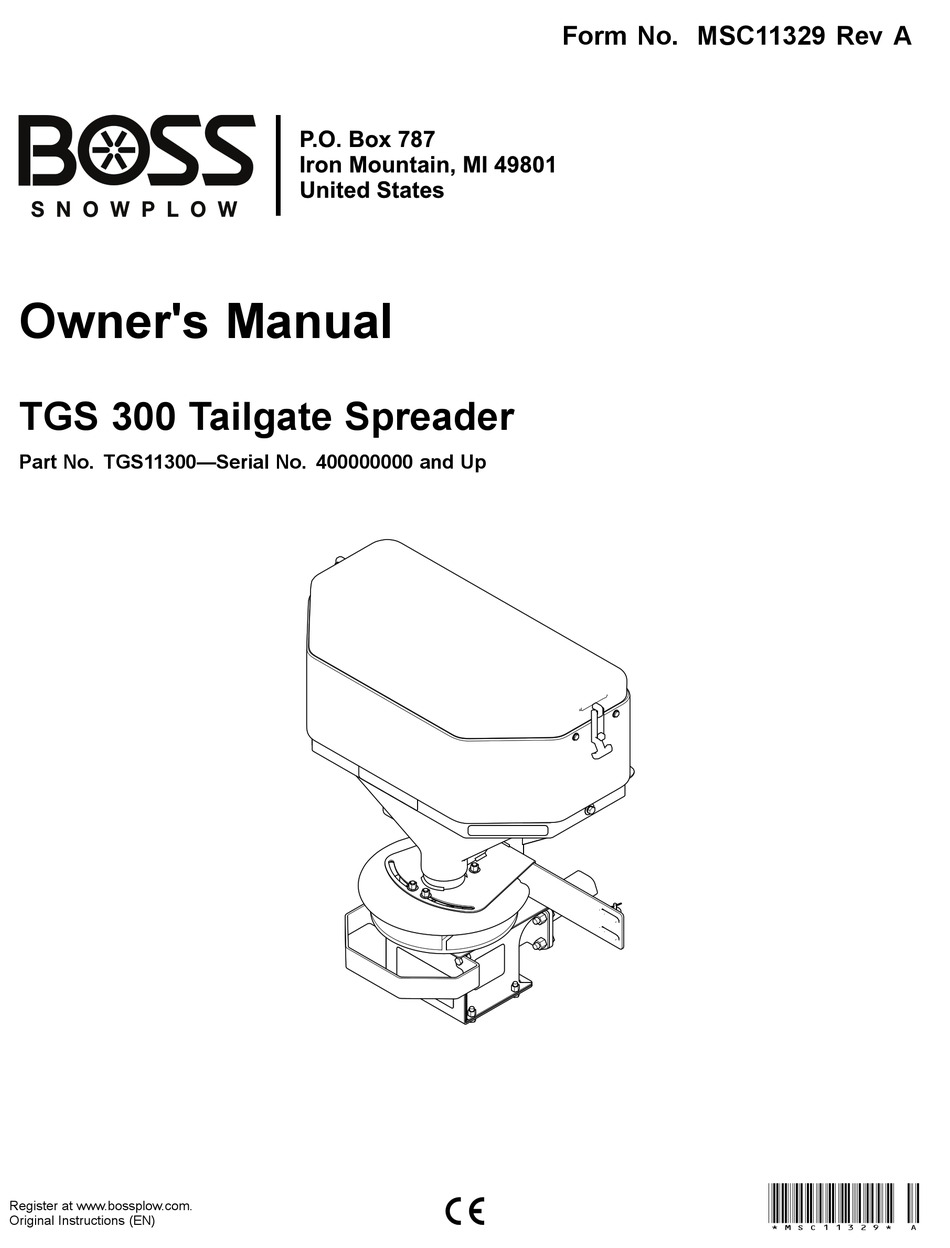

- Page 1 Form No. MSC11329 Rev A Owner's Manual TGS 300 Tailgate Spreader Part No. TGS11300—Serial No. 400000000 and Up *MSC11329* A Register at www.bossplow.com. Original Instructions (EN)
-
Page 2: Table Of Contents
This product complies with all relevant European directives; for details, please see the separate product Model No. specific Declaration of Conformity (DOC) sheet. Serial No. WARNING CALIFORNIA This manual identifies potential hazards and has Proposition 65 Warning safety messages identified by the safety alert symbol (Figure 2), which signals a hazard that may cause This product contains a chemical... -
Page 3: Safety
• The TGS 300 can hold a maximum weight of 91 • Never operate the spreader within 7.6 m (25 ft) kg (200 lb) of salt. Do not exceed this weight. -
Page 4: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decaltgs06269b TGS06269 1. Warning—read the Owner’s 4. Warning—turn the machine 7. -
Page 5: Setup
Setup Note: The slide-in attachment is required to install this machine. Contact your Authorized BOSS Dealer for more information. g232365 Installing the Wire Harness Figure 3 1. Red ring connector 3. Controller connector DANGER 2. Black ring connector 4. Spreader connector Vehicle engines contain moving parts and can become extremely hot, capable of causing Installing the Slide-In... -
Page 6: Installing The Spreader Controller
Installing the Spreader Controller Mount the controller in the cab where it does not interfere with vehicle operation or visibility. Important: Do not mount the controller in a location that vehicle occupants could contact it during a crash. Remove the mounting bracket from the controller (Figure g031015 Figure 5... -
Page 7: Product Overview
Product Overview g232360 Figure 6 1. Hopper cover 3. Material deflector 2. Lift points 4. Spinner Controls Become familiar with all the controls before you operate the spreader. Material Deflector The material deflector controls the spread of materials; you can adjust the controls to provide different spread patterns;... -
Page 8: Specifications
Operation • Speed dial—increases the spinner motor speed when turned clockwise, and decreases the spinner motor speed when turned counterclockwise. Note: Determine the left and right sides of the • Green LED—indicates that the controller is on and machine from the normal operating position. the spinner motor is turning •... -
Page 9: Loading The Spreader
Operating the Spreader on the spreader hitch with the hole in the hitch of your vehicle (Figure Note: If the spreader contacts the bumper of DANGER your vehicle, slide the spreader out and align the Hands, feet, and clothing can get caught in first hole of the spreader hitch instead. -
Page 10: Unloading The Spreader
Unloading the Spreader Position the spreader in the area where you want to deposit the material. Unload the spreader using either of the methods below: • Turn on the spreader controller and run the spreader until the hopper is empty. CAUTION The spreader throws material at a high g231780... -
Page 11: Operating Tips
g029499 Figure 13 Deflection Settings 1. Driver side open 3. Both sides open 2. Passenger side open Operating Tips • Know the area in which you are working; hidden obstructions such as curbs, sidewalks, and pipes, can damage your spreader or vehicle. •... -
Page 12: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The controller has no power (the green 1. The battery connections are corroded. 1. Clean the battery connections. LED is not on). 2. The 40 amp in-line fuse in the vehicle 2. Replace the fuse. side harness in bad.
