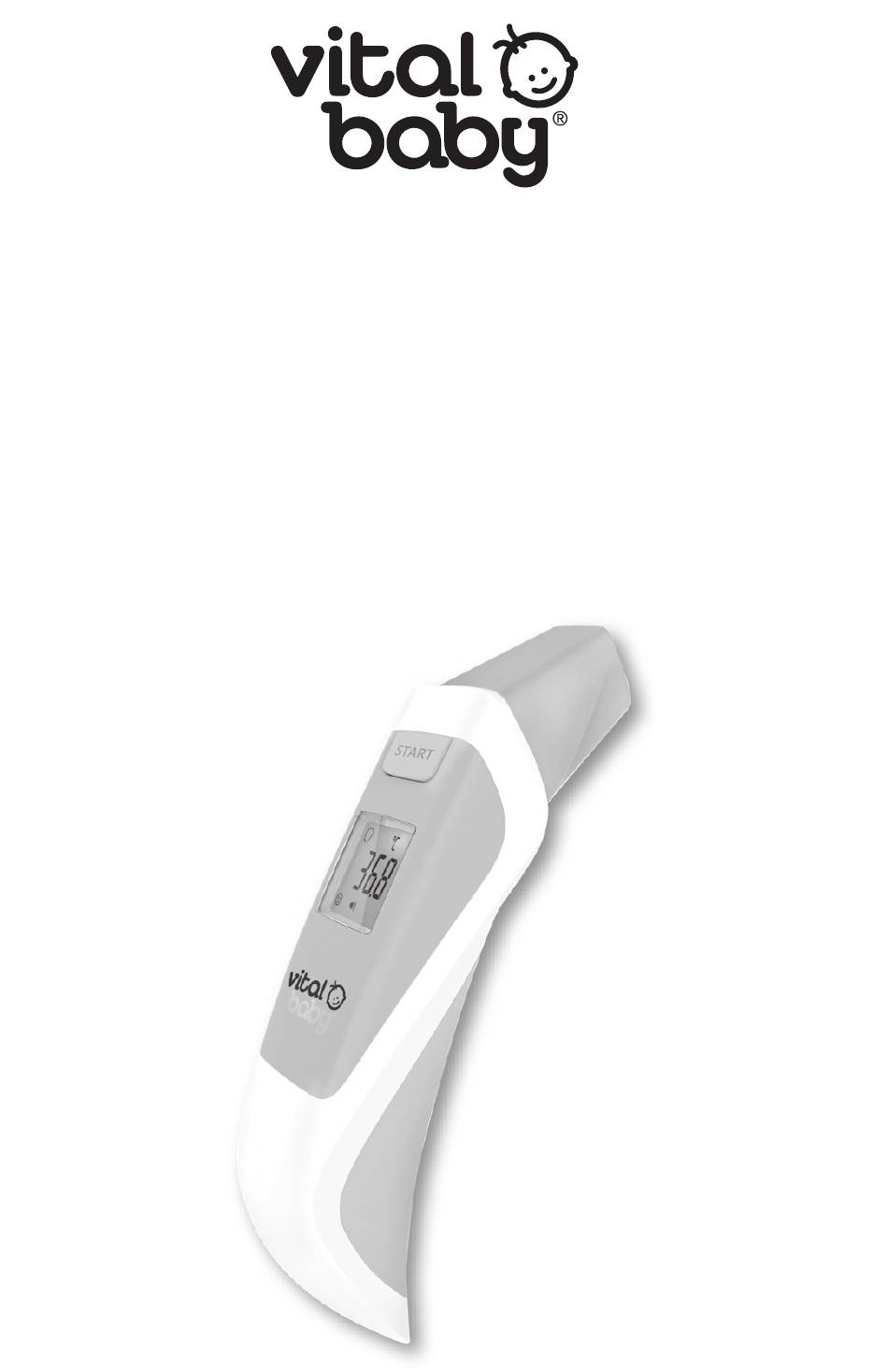

- Page 1 PROTECT PROTECT PROTECT PROTECT ™ ™ 4 in 1 contactless thermometer...
- Page 2 IMPORTANT, RETAIN FOR FUTURE REFERENCES: READ CAREFULLY BEFORE USE. FOR YOUR SAFETY AND HEALTH WARNING! • Keep all components not in use out of the reach of children. This thermometer contains small parts that can be swallowed or produce a choking hazard to children. •...
-
Page 3: Cleaning And Care
• This thermometer consists of high-precision parts. Do not drop the instrument. Protect it from severe impact and shock. Do not twist the instrument or the infrared sensor. • Do not use the thermometer if it is damaged. • This thermometer is intended for household use only. •... - Page 4 BEFORE TAKING A TEMPERATURE • It is important to know each individual’s normal temperature when they are well. This is the only way to accurately diagnose a fever. Take multiple readings when healthy to determine normal temperature. • A child’s normal temperature can be as high as 37.7 °C (99.9 °F) or as low as 36.1 °C (97.0 °F).
- Page 5 TRI-COLOUR FEVER ALERT SYSTEM The 4 in 1 contactless thermometer has a tri-colour fever alert system, helping you to better understand what your child’s temperature means. Once the temperature has been taken, the screen will display the reading and will either turn green, amber or red*. GREEN A green screen means that the temperature taken is acceptable.
- Page 6 FOR ROOM USE WHY MEASURE THE ROOM TEMPERATURE? Newborn babies are not able to regulate their own body temperature. It’s therefore very important that the temperature of their surroundings are monitored to make sure that they are not too cold or too hot. You can then adapt their bedding, change their clothing or alter the temperature of their room accordingly.
- Page 7 FOR FOREHEAD USE WHY MEASURE ON THE FOREHEAD? While taking in-ear temperatures can be a little more accurate, contactless readings taken on the forehead are a great way of taking your child’s temperature without disturbing or distressing them. Built-in Artery Scan function uses infrared technology to ensure the most accurate contactless reading possible (when used in accordance with the below user instructions).
- Page 8 you can change the measurement unit between °C and °F by pressing and holding the “mode” button, located underneath the battery cover. See “Components List”. STEP 4 Once in standby mode, ensure that the symbol is shown at the top of the screen. If so, the temperature can then be taken. If the person whose temperature is being taken is more than one year old, pull the ear up and back gently.
-
Page 9: Replacing The Batteries
REPLACING THE BATTERIES The 4 in 1 contactless thermometer comes with 2 x AAA batteries. Replace with 2 x AAA batteries when the low battery indicator appears on the screen. To change the batteries, lift the battery cover and remove the batteries. - Page 10 Recommended separation distances between portable and mobile RF communications equipment and the Infrared Body Thermometer. The 4 in 1 contactless infrared body thermometer is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the 4 in 1 contactless infrared body thermometer can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the 4 in 1 contactless infrared body thermometer as recommended below, according to the...
- Page 11 Guidance and manufacture’s declaration – electromagnetic immunity The 4 in 1 contactless infrared body thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the 4 in 1 contactless infrared body thermometer should ensure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level...
-
Page 12: Troubleshooting
TROUBLESHOOTING DISPLAY DURING MODE ERROR ACTION REQUIRED Forehead Mode, Detected target Environmental temperature may be Ear Mode temperature higher unstable. Place the thermometer in than 42.9°C (higher the room that you intend to take the than typical human reading and allow to acclimatise for 20 temperature) minutes before taking another reading. - Page 13 TECHNICAL SPECIFICATION Model: HTD8216C Product type: Infrared body thermometer Measurement unit: °C & °F Operating modes: Adjusted (forehead and ear modes), Direct (liquid and room modes) Measuring site: forehead, ear. Measurement range: 34.0 - 42.9°C (93.2-109.2°F) Laboratory accuracy; 34.0°C - 34.9°C ±0.3°C (93.2°F -94.8°F ±0.5°F) Body mode: 35.0°C - 42.0°C ±0.2°C (95.0°F -107.6°F ±0.4°F) 42.1°C - 42.9°C ±0.3°C (107.8°F -109.2°F ±0.5°F)
- Page 14 City, GuangDong, China Made in China www.vitalbaby.com Made in China to Vital Baby specifications. Vital Innovations Limited, Hatfield, ® Herts, AL10 9EW, United Kingdom. Vital Baby is a registered trademark. ® PROTECT™ is a trademark. Design Rights. © Vital Innovations Ltd 2020...
