Summary of Contents for Elba MARS-V2-90 IS-X

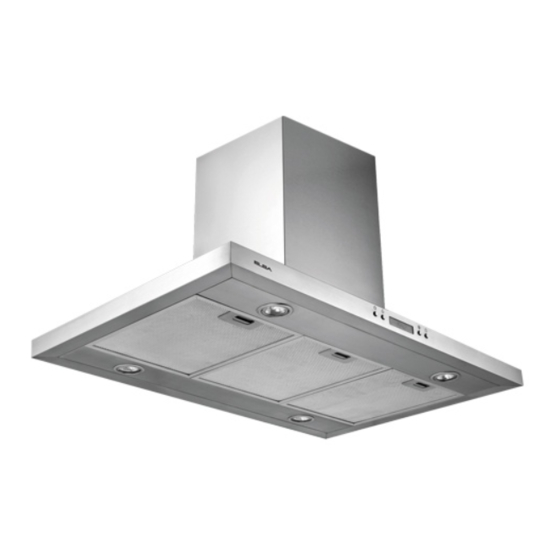

- Page 1 MARS-V2-90 IS-X Range Hood Installation Guide Operation Manual...
- Page 2 The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. Installation must be carried out by a qualified and authorized ELBA Service Technician. The minimum safety distance between the cooktop and the range hood is 650 millimeters (mm).
- Page 3 INSTALLATION Important Notes: The hood should be placed at a distance of 65-75cm from the cooking surface for maximum performance. The exhaust pipe should have a minimum diameter millimeters (mm) Install the bracket on a hard and sturdy surface (with bracing if possible).
- Page 4 *Note that this should be the centre of the Island hood directly below the cooktop. 2. According to the hanging board, drill 12 pcs of ST6 * 40mm flat screws that will be used to fix the hanging board onto the ceiling as seen in pic 2.
- Page 5 9. Hold up the hood and insert it in between the angular bars. Align it properly and use 16 pcs M4*10 flat screws to mount the body of the hood to the angular bars, as seen in pic 6. 10. Lower the exhaust pipe onto the duct / outlet of the hood and fasten properly to make sure that exhaust air does not leak through the sides.
- Page 6 OPERATION LCD Display Symbols: - Timer Indicator – Lamp Indicator (displayed when range hood is on) – Speed Indicator – Power Indicator (displayed when range hood is on) Touch Pad Operation: “ Light ” – Press to activate and deactivate light. (This functions as the –...
- Page 7 Time Delay – This range hood is equipped with a time delay function that allows you to set the duration when the hood will shut off after a certain time period. o Press the once to activate delay function. o Press the to set the time delay.
- Page 8 LED Lights This unit comes equipped with energy efficient LED bulbs. Instruction: Please call the service centre for the replacement of the LED bulb modules. It is suggested that you do not try to replace this yourself, as it might cause electrical shock. Warranty Exemption: The incandescent bulbs are a consumable item and are not covered by the warranty of this item.
