Summary of Contents for Koolance EXC-450

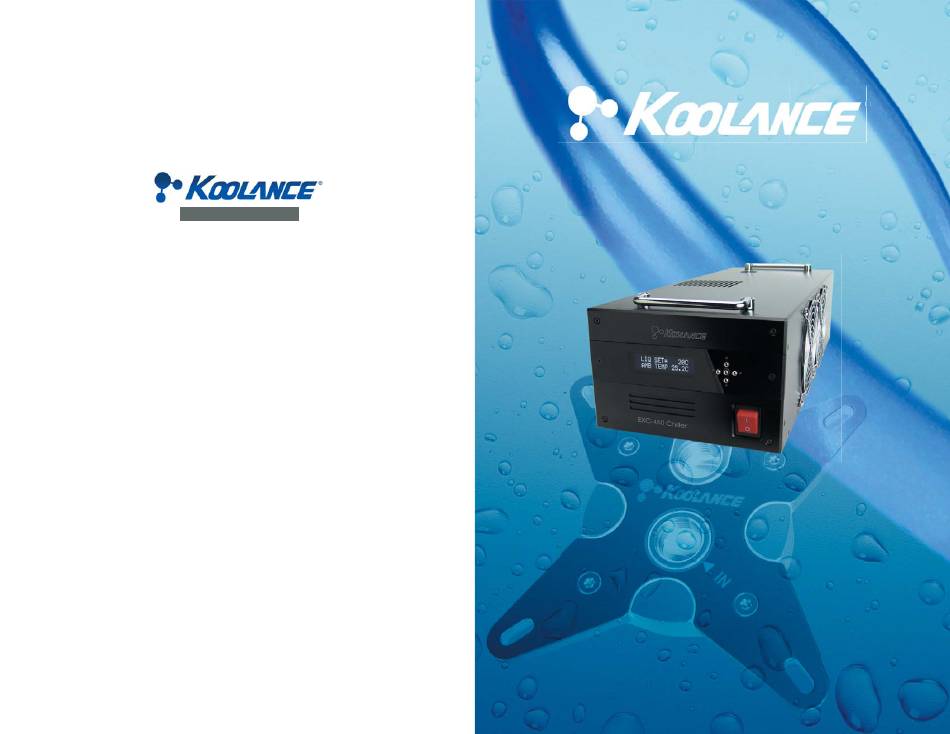

- Page 1 ® Superior Liquid Cooling Systems www.koolance.com EXC-450 EXC-450 User’s Manual User’s Manual English v1.0 9001 Printed in Korea...
- Page 2 Koolance Incorporated does not warrant them. TRADEMARKS The Koolance name and logo are trademarks or registered trademarks of Koolance, Inc. Other company and product names used in this publication are for identification purposes only and may be trademarks or registered trademarks of their respective companies.
-
Page 3: Table Of Contents
Table of Contents WARNING: The Koolance liquid coolant contains chemicals which may be harmful or fatal if swallowed. KEEP THIS AND ALL DANGEROUS CHEMICALS OUT OF THE REACH OF CHILDREN. Please refer to System Diagram ..................... 4 the coolant MSDS available on our website: www.koolance.com Positioning the System ................... -
Page 4: System Diagram
System Diagram Positioning the System Fill Port CAUTION: Always keep the chiller upright during operation. Additionally, Carrying Handles THE UNIT MUST BE KEPT UPRIGHT FOR AT LEAST 24 HOURS BEFORE POWERING ON. This is to allow enough oil to reach the compressor. -
Page 5: Coolant Filling And Powering-On
Cut tubing into two segments. You Slowly fill the system with coolant. To maintain will need to connect each to the rear the product warranty, use only Koolance nozzles. approved coolant. Many alternative liquids and additives can cause permanent damage... -
Page 6: Display Panel
TEMP SET CAUTION: This cooling system can chill liquid below the ambient air The Koolance display panel allows control and monitoring of various aspects of temperature, which may cause condensation to form on tubing and the cooling unit. 5 buttons are used, with directional arrows to navigate or change cold plates. -
Page 7: Alarm Set
Press to accept and return to the previous menu. the reservoir. Dry-running (and thereby damaging the pump) is not covered under the Koolance product warranty. ALARM SET (TEMP SET) ± 5C In the above example, the alarm will sound if the temperature exceeds a 5°C The pump speed can be manually set from 1 (lowest) to 10 (highest): difference (+ or -) from the chiller’s currently active temperature sensor (see “TEMP... -
Page 8: Troubleshooting
Troubleshooting If “CYCLIC” is chosen from the DISPLAY SET menu, multiple values can be rotated through the front display. We hope your Koolance system will provide you with years of reliable cooling ◙ The first line will flash. Use ▼ and ▲... -
Page 9: Limited Warranty
No responsibility is assumed for any special incidental or consequential damages due to a defective Koolance product. In order to obtain warranty service, contact our RMA department for information. The product must be shipped postage prepaid to an authorized Koolance service location.
