Installing the SmartSwitch 9000 Module

Installing a TPIM

The 9T125-08 MicroLAN extension module is shipped without TPIMs. To install a

TPIM, follow the procedure below:

1. Remove the faceplate from the RI/RO port on the 9T125-08 or, if replacing a

TPIM, loosen the mounting screw and pull the TPIM straight out from the

9T125-08.

2. Slide the new TPIM into place as shown in Figure 2-1.

3. Ensure proper mating between the connectors on the rear of the module and

on the inside of the 9T125-08.

4. Tighten the mounting screw.

Figure 2-2 shows the various components that are accessible to the user. These

consist of an eight position dip switch (explained in the next section), replaceable

PROMs and sockets for RAM. These will be used for future upgrades.

2-2

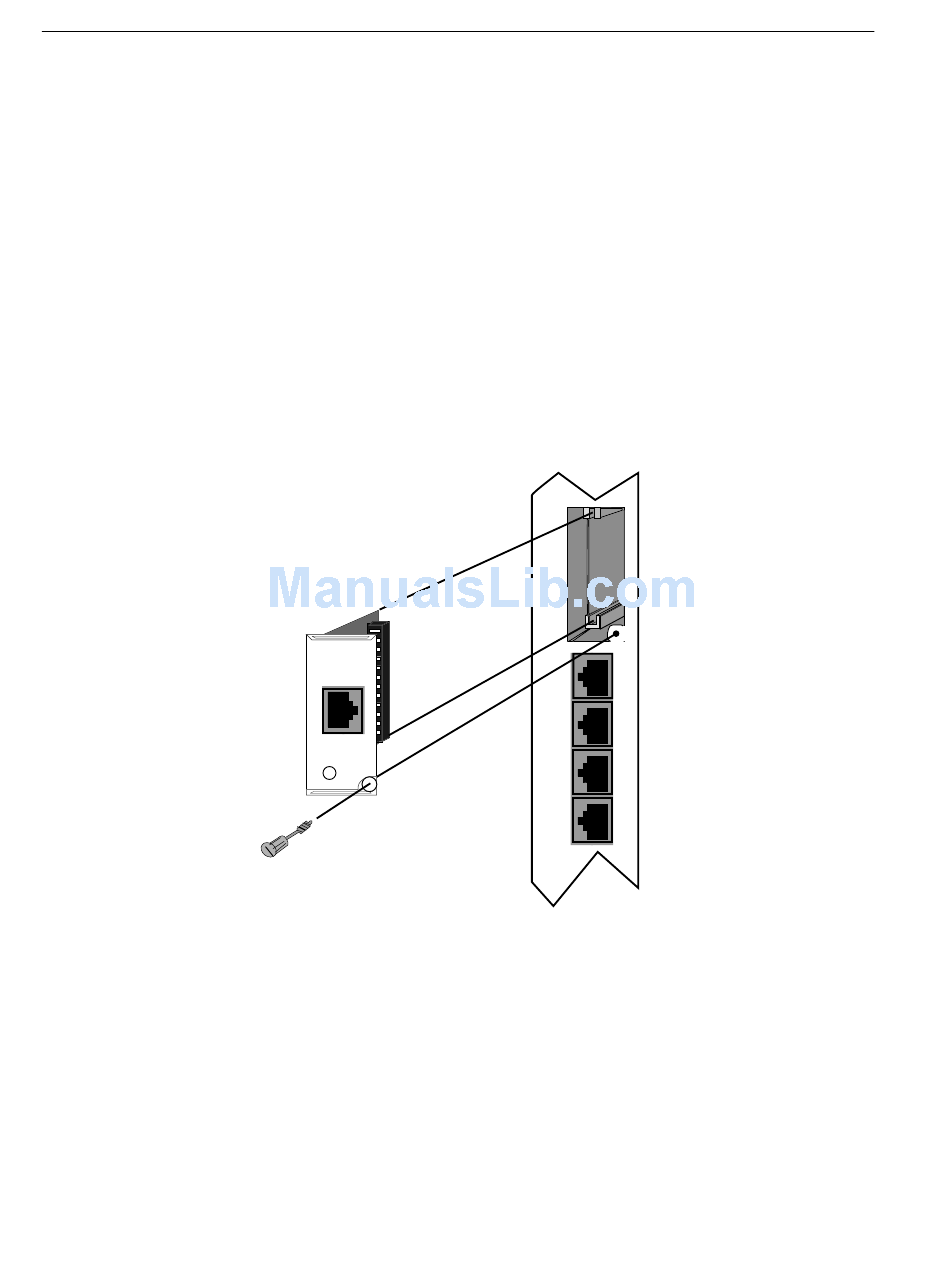

Figure 2-1. Installing a TPIM
