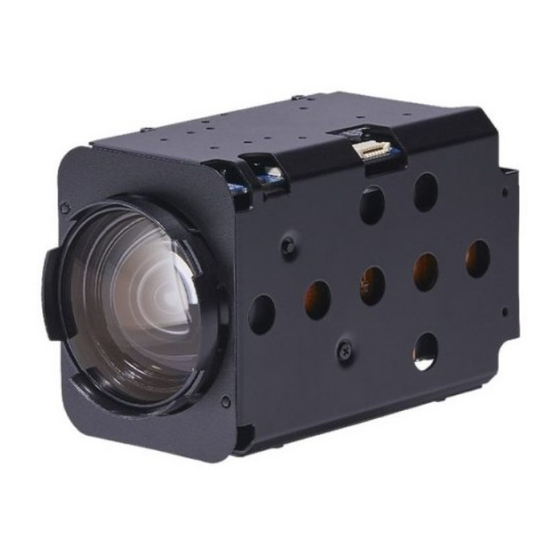

Harrier series camera
.
Harrier 18x Autofocus-Zoom
HDMI 4K Camera
(HDMI/CVBS)
AS-CAM-18HDMI4K-A
Technical
Reference Manual
Edition: v1.00
Issued Date: 26 July 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harrier Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Active Silicon Harrier Series

Summary of Contents for Active Silicon Harrier Series

  • Page 1              Harrier series camera Harrier 18x Autofocus-Zoom HDMI 4K Camera (HDMI/CVBS) AS-CAM-18HDMI4K-A Technical Reference Manual Edition: v1.00 Issued Date: 26 July 2021...

  • Page 2: Table Of Contents

                 Harrier series camera Contents FEATURES ....................3 CAUTIONS ....................4 SPECIFICATIONS ..................5 CONNECTORS ..................... 8 CABLE SPECIFICATIONS ................. 11 BLOCK DIAGRAM ..................12 RELIABILITY AND ENVIRONMENT CONDITION ........13 FUNCTIONS ....................

  • Page 3: Features

                 Harrier series camera Features ◆ 1/1.8" Sony STARVIS CMOS sensor 9.17M Pixels (Total) 8.41M Pixels (Active) ◆ 18x Optical Zoom High reliability built-in 18x optical zoom lens with auto focus, auto iris and auto D&N zoom functions.

  • Page 4: Cautions

                 Harrier series camera Cautions ◆ Power Supply This camera must always be operated at 9V to 15V DC ◆ Handling of the unit Be careful not to spill water or other liquids on the unit.

  • Page 5: Specifications

                 Harrier series camera Specifications Model AS-CAM-18HDMI4K-A Image Sensor 1/1.8" Sony IMX334LQR-C CMOS Sensor Total Pixels 3952(H) x 2320(V) = 9.17M pixels Effective pixels 3864(H) x 2180(V) = 8.42M pixels Active pixels 3864(H) x 2176(V) = 8.41M pixels...
  • Page 6              Harrier series camera Model AS-CAM-18HDMI4K-A White Balance Mode Auto / One Push / Manual / Indoor / Outdoor Red Gain 0 ~ 100 steps (Manual mode only)
  • Page 7              Harrier series camera Model AS-CAM-18HDMI4K-A Electrical Power Source 9V to 15V DC Power Consumption 500mA (@ 12VDC) General Power Input Connector Video Output Connector -10⁰C ~ +50⁰C (Humidity : 0%RH ~ 90%RH)

  • Page 8: Connectors

                 Harrier series camera Connectors J301 Pin No. Name Level Pin No. Name Level USB_D- TMDS Clock - USB_D+ TMDS Clock + CMOS 5V TMDS Data 0 -...
  • Page 9              Harrier series camera J302 Pin No. Name Level Pin No. Name Level 485-DIR RS-485 control signal CMOS 5V CMOS 5V Composite Video CVBS-OUT Output ADKEY OSD Control...
  • Page 10              Harrier series camera 1. D&N IN (J302-10) Port giving input of any external signal in Day&Night “Ext-In” Mode ⚫ Day Mode : High (+3.3V) ⚫ Night Mode : Low (Ground) 2.

  • Page 11: Cable Specifications

                 Harrier series camera Cable specifications ①, ② : Connecting to USL20-30S (KEL) ③ : #42 thin coaxial cable ④ : Binding tape July 2021 www.activesilicon.com Page 11 of 55...

  • Page 12: Block Diagram

                 Harrier series camera Block Diagram SENSOR LENS CMOS Image Sensor 1/1.8” 9.17M Pixel MAIN B/D Memory LENS DRIVE Zoom/Focus/Iris/TDN Control DC/DC Converter HDMI VIDEO Transmitter HD: HDMI...

  • Page 13: Reliability And Environment Condition

                 Harrier series camera Reliability and Environment Condition 1. Zoom ① Zoom operation cycle : 500,000 cycles ② Operation condition : See below ③ Test condition : Normal temperature...
  • Page 14              Harrier series camera 3. Auto-Iris ① Auto-iris operation cycle: 300,000 cycles ② Operation condition : See below ③ Test condition : Normal temperature OPEN CLOSE 4. IR-Cut Filter ①...

  • Page 15: Functions

                 Harrier series camera Functions 1. Zoom ⚫ Max. zoom ratio Optical Zoom : Max x18 Digital Zoom : Max x32 Optical + Digital Zoom : Max x576 ※...
  • Page 16              Harrier series camera ⚫ Manual focus mode Focus position can be adjusted by manual only using Far/Near button or Far/Near command. One push trigger When a Trigger Command is sent, the lens moves to adjust the focus. The focus lens then holds that position until the next Trigger Command is received.
  • Page 17              Harrier series camera ⚫ Day&Night (ICR) mode An infrared (IR) cut filter can be disengaged from the image path for increased sensitivity in low light environment. The ICR will automatically engage depending on the ambient light, allowing the camera to be effective in day/night environments.
  • Page 18              Harrier series camera 6. Mirror This function reverses the video output from the camera upside down or left/right reverse. 7. Sharpness (Aperture) This function adjusts the enhancement of the edge of objects in the picture.
  • Page 19              Harrier series camera Mask Number (mm) : Mask A = 0 ~ Mask H = 7 ※ Mask A has highest priority and Mask H has lowest priority...
  • Page 20              Harrier series camera Pan/Tilt angle (ppp, qqq) : Range of angle (PAN : -180˚ ~ 180˚, TILT : -90˚ ~ 90˚) Angle resolution (360˚ / 4096) July 2021 www.activesilicon.com...
  • Page 21              Harrier series camera 11. Motion Detection It instructs the camera to detect movement within the monitoring area and the send an alarm signal automatically. ⚫ You can set up to 4 MD Window.

  • Page 22: Protocols

                 Harrier series camera Protocols 1. Timing As Command processing can only be carried out one time in a Vertical cycle, it takes the maximum 1V cycle time for an ACK/Completion to be returned. If the Command ACK/Completion communication time can be cut shorter than the 1V cycle time, then every 1V cycle can receive a Command.
  • Page 23              Harrier series camera 3. Pelco-D Protocol Command List Message format (Hex) Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Zoom Tele Zoom Wide Focus Near Focus Far Stop Don’t care...
  • Page 24              Harrier series camera 4. Pelco-P Protocol Command List Message format (Hex) Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Zoom Tele Zoom Wide Focus Near Focus Far Stop Don’t care...
  • Page 25              Harrier series camera 5. VISCA Protocol ⚫ Command packet (Variable packet length) X : 1 ~ 7 (Camera address) QQ : 01 (Command), 09 (Inquiry) ⚫ Ack message packet (Variable packet length)
  • Page 26              Harrier series camera ⚫ Example of communication Camera ID : 1 Socket number : 1 ※ Command ※ Inquiry ⚫ Network change message Sent from the peripheral device to the controller when a device is removed from or added to the network.

  • Page 27: Visca Command List

                 Harrier series camera VISCA Command List Command Set Command Command Packet Comments AddressSet Broadcast 88 30 01 FF Address setting Broadcast 88 01 00 01 FF IF_Clear...
  • Page 28              Harrier series camera Command Set Command Command Packet Comments Auto 8x 01 04 35 00 FF Normal Auto Indoor 8x 01 04 35 01 FF Indoor Mode...
  • Page 29              Harrier series camera Command Set Command Command Packet Comments 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF...
  • Page 30              Harrier series camera Command Set Command Command Packet Comments Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture Down 8x 01 04 02 03 FF...
  • Page 31              Harrier series camera Command Set Command Command Packet Comments L : Line Number (0 ~ Eh), nn : H-Position (0 ~ 27h), 8x 01 04 73 1L 00 nn 0p...
  • Page 32              Harrier series camera Command Set Command Command Packet Comments 8x 01 04 1B 02 FF Motion Detection On/Off 8x 01 04 1B 03 FF m : Display mode...

  • Page 33: Visca Inquiry Command List

                 Harrier series camera VISCA Inquiry Command List Inquiry Command Command Packet Inquiry Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF CAM_ZoomPosInq 8x 09 04 47 FF...
  • Page 34              Harrier series camera Inquiry Command Command Packet Inquiry Packet Comments y0 50 02 FF CAM_FlickerlessInq 8x 09 04 7A FF y0 50 03 FF y0 50 04 FF...
  • Page 35              Harrier series camera Inquiry Command Command Packet Inquiry Packet Comments y0 50 02 FF CAM_PictureFlipModeInq 8x 09 04 66 FF y0 50 03 FF y0 50 02 FF...
  • Page 36              Harrier series camera Inquiry Command Command Packet Inquiry Packet Comments mm : Mask Settings y0 50 0p 0p 0p CAM_PrivacyPTZInq 8x 09 04 7B mm FF ppp : Pan, qqq : Tilt, rrrr : Zoom...
  • Page 37              Harrier series camera Exposure Control Values Shutter Speed Iris Brightness Step 60/30Hz 50/25Hz Step Step IRIS IRIS GAIN (Hex) /NTSC /PAL (Hex) (Hex) 1/30000 1/30000 F1.6 F1.6 79.5dB...
  • Page 38              Harrier series camera Zoom & Focus Control Values Optical Zoom D-Zoom : Combined Mode D-Zoom : Separate Mode Zoom Zoom Zoom Magnification Magnification Magnification Position Position Position...
  • Page 39              Harrier series camera Wide/Tele Limit Setting Wide/Tele Limit Wide Limit Tele Limit Setting Value Limit Setting Zoom Zoom Zoom Zoom Value Position Ratio Position Ratio 0000 1.00 4000 18.00...
  • Page 40              Harrier series camera OSD Position and Character Values 00 ~ 0Eh 15 Rows (CAM_MultiLineTitle) V Position 00 ~ 11h 17 Rows (CAM_User OSD) H Position 00 ~ 27h...
  • Page 41              Harrier series camera Register Setting Register Function Register Value Setting 2400 bps 4800 bps 9600 bps BaudRate 19200 bps 38400 bps 57600 bps 115200 bps 00-FF Wide Limit (0: Disabled)

  • Page 42: Osd Menu

                 Harrier series camera OSD Menu ◆ Main Menu MENU ZOOM/FOCUS ↲ EXPOSURE ↲ WHITE BAL ↲ IMAGE ↲ INTELLIGENCE ↲ SPECIAL FUNC ↲ DISPLAY ↲ [EXIT] [SAVE] [DFLT] Functions can be setup using “Menu Key Command”...
  • Page 43              Harrier series camera ◆ ZOOM / FOCUS ZOOM/FOCUS MENU AUTO FOCUS MODE ZOOM/FOCUS ↲ 1.5m DISTANCE EXPOSURE ↲ ZOOM SPEED WHITE BAL ↲ ONE PUSH↲ LENS REFRESH IMAGE ↲...
  • Page 44              Harrier series camera ◆ EXPOSURE EXPOSURE MENU AUTO MODE ZOOM/FOCUS ↲ EXPOSURE ↲ SHUT SPEED WHITE BAL ↲ IRIS IMAGE ↲ INTELLIGENCE ↲ FLICKERLESS SPECIAL FUNC ↲...
  • Page 45              Harrier series camera ⚫ BRIGHTNESS Adjust brightness level. ► 0 (dark) ~ 14 (bright) steps ⚫ BACK LIGHT Select HLC(High Light compensation) or BLC(Back Light compensation). ► OFF ►...
  • Page 46              Harrier series camera ◆ WHITE BALANCE WHITE BAL MENU MODE AUTO ZOOM/FOCUS ↲ RED GAIN EXPOSURE ↲ BLUE GAIN WHITE BAL ↲ CHROMA IMAGE ↲ INTELLIGENCE ↲...
  • Page 47              Harrier series camera ◆ IMAGE IMAGE MENU ZOOM/FOCUS ↲ MIRROR EXPOSURE ↲ SHARPNESS WHITE BAL ↲ CONTRAST IMAGE ↲ IMAGE BRIGHT INTELLIGENCE ↲ DWDR SPECIAL FUNC ↲...
  • Page 48              Harrier series camera ⚫ IMAGE BRIGHT Adjust image brightness level. ► 0 ~ 20 steps ⚫ DWDR Select DWDR(Digital Wide Dynamic Range). ► OFF ► AUTO ↲ : Select auto level (HIGH, MIDDLE, LOW) ►...
  • Page 49              Harrier series camera ◆ INTELLIGENCE INTELLIGENCE MENU PRIVACY ZOOM/FOCUS ↲ MOTION EXPOSURE ↲ WHITE BAL ↲ IMAGE ↲ INTELLIGENCE ↲ SPECIAL FUNC ↲ DISPLAY ↲ [EXIT] [SAVE]...
  • Page 50              Harrier series camera ⚫ DIS Select Digital Image Stabilizer mode. ► OFF / ON ※ When the DIS is turned on, the Digital Zoom is forced turned off.
  • Page 51              Harrier series camera ◆ SPECIAL FUNCTIONS MENU SPECIAL FUNC ZOOM/FOCUS ↲ DEFECT EXPOSURE ↲ SYSTEM NTSC WHITE BAL ↲ HD FORMAT 1080p/30fps IMAGE ↲ COMM ↲ INTELLIGENCE ↲...
  • Page 52              Harrier series camera ◆ DISPLAY MENU DISPLAY ZOOM/FOCUS DISP SEL ↲ EXPOSURE SET TITLE ↲ ↲ WHITE BAL INIT SEL ↲ IMAGE SET INIT MSG ↲ ↲...

  • Page 53: Camera Dimensions

                 Harrier series camera Camera Dimensions BACK FRONT LEFT RIGHT July 2021 www.activesilicon.com Page 53 of 55...

  • Page 54: Ordering Information

                 Harrier series camera BOTTOM ORDERING INFORMATION PART NUMBER DESCRIPTION AS-CAM-18HDMI4K-A Harrier 18x AF-Zoom HDMI 4K Camera AS-CAM-18HDMI4K-EVAL-A Evaluation Kit for the Harrier 18x AF-Zoom HDMI 4K Camera July 2021 www.activesilicon.com...

  • Page 55: Contact Details

                 Harrier series camera CONTACT DETAILS Europe & APAC: Americas: Active Silicon Ltd Active Silicon, Inc. Pinewood Mews, Bond Close, Iver, 479 Jumpers Hole Road, Suite 301, Bucks, SL0 0NA, UK.
