The physical connectors in an FRX6000 reside on the RLPs, but the circuitry that
defines the physical port types is on attached Line Interface Cards (LICs). An RLP
contains up to two LICs. LIC 1 supports ports 0–3, and LIC 2 supports ports 4–7.
RLP
LIC 1
LIC 2

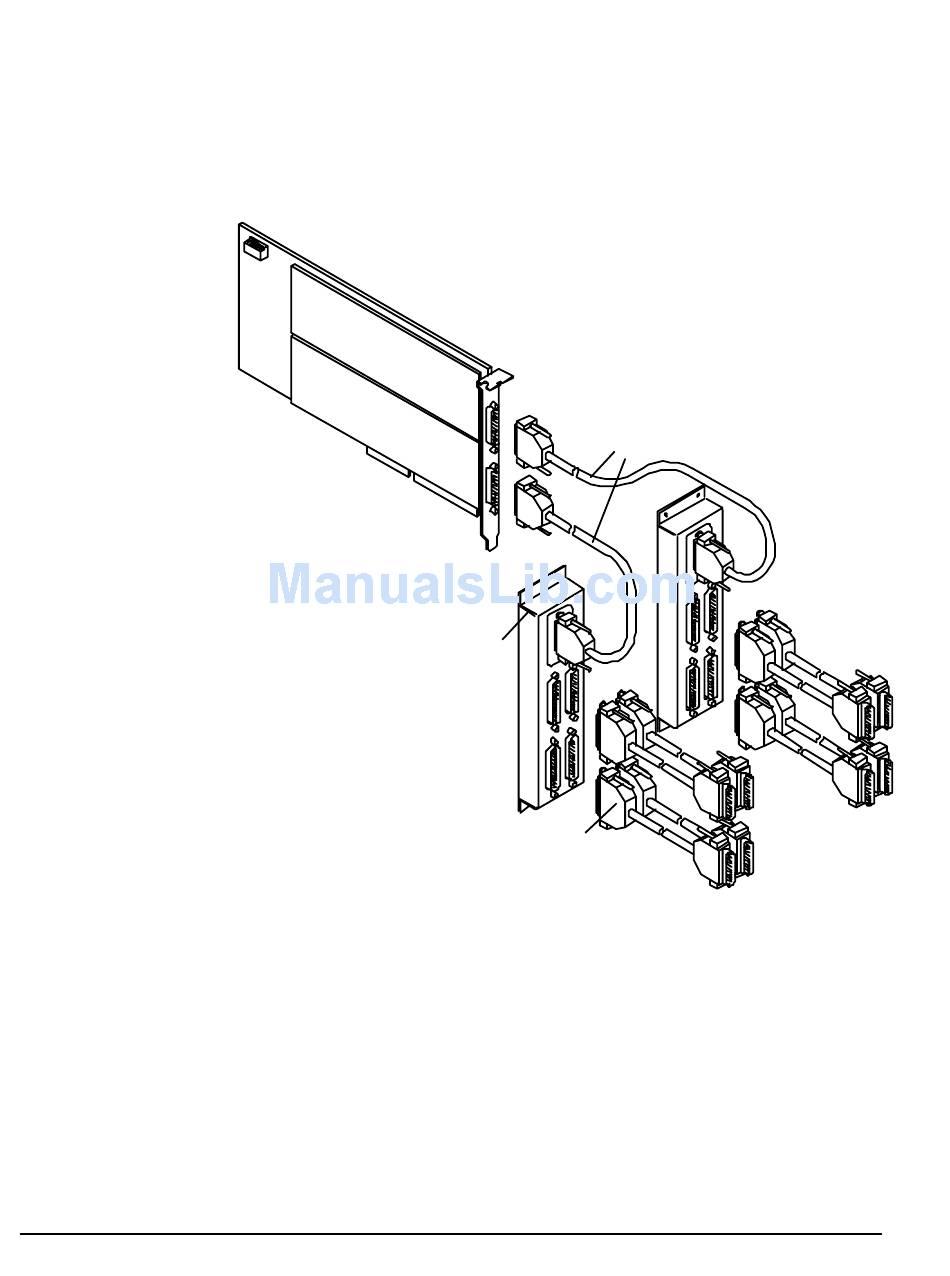

Figure 5-2 Physical Ports on FRX6000 RLP
RLP Cables
I/O Box
I/O Cables to Modems and
User Devices
6
4
7
5
FRX/FRM 3.3 User Guide, Rev 04
2
0
1
3
