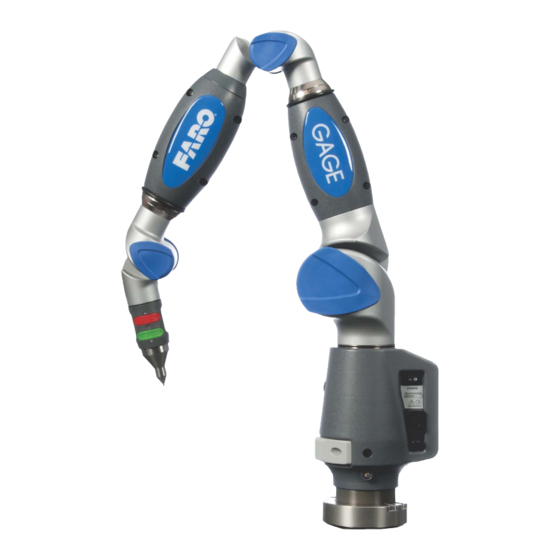

FARO Gage Manual
M
2011
AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gage and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Faro Gage

Summary of Contents for Faro Gage

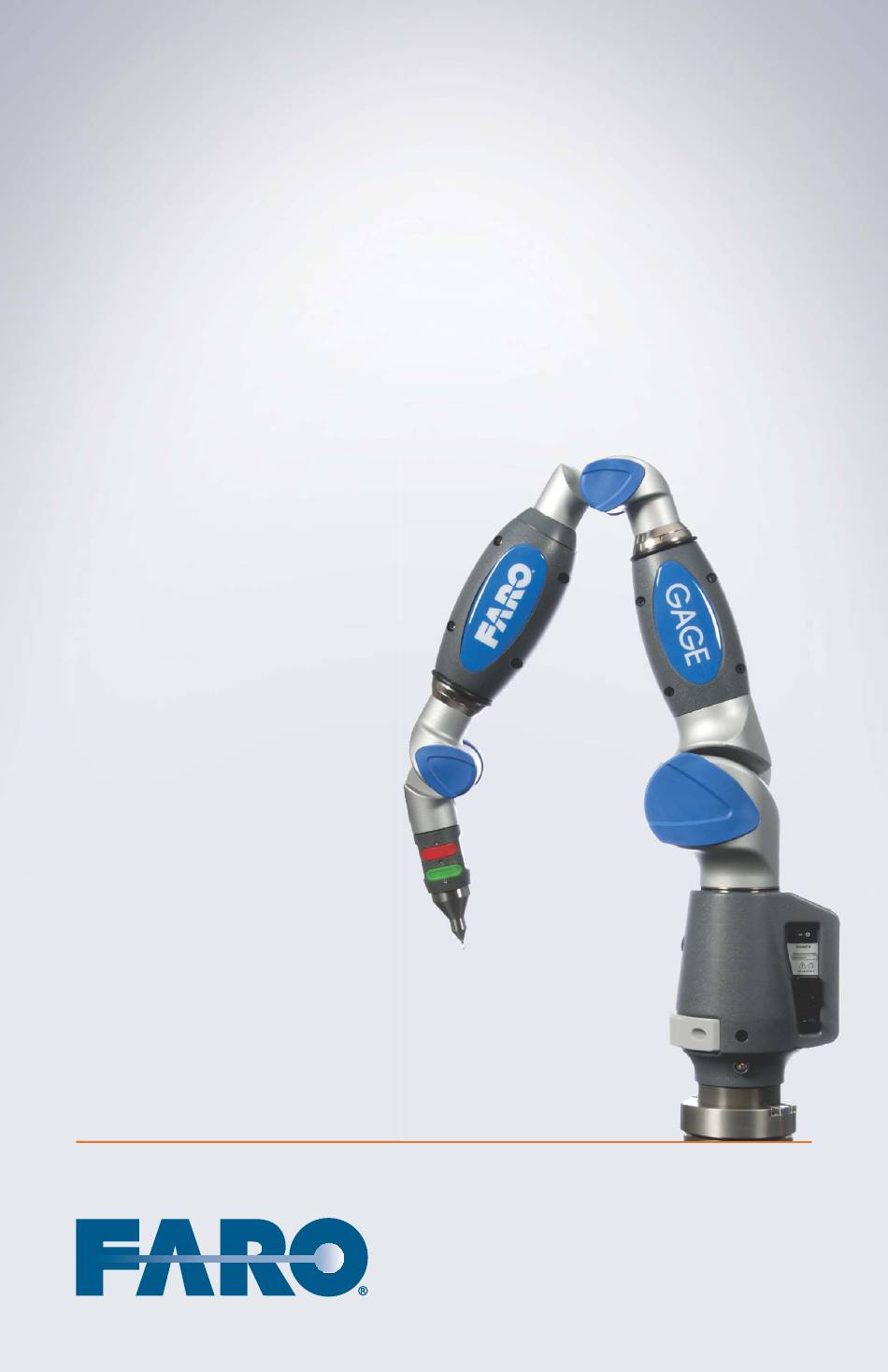

  • Page 1 FARO Gage Manual 2011...
  • Page 3 TO ANYONE FOR SPECIAL, COLLATERAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE PURCHASE OR USE OF THE FARO GAGE OR ITS MATERIALS. THE SOLE AND EXCLUSIVE LIABILITY TO FARO TECHNOLOGIES INC., REGARDLESS OF THE FORM OF ACTION, SHALL NOT EXCEED THE PURCHASE PRICE OF THE MATERIALS DESCRIBED HEREIN.

  • Page 5: Table Of Contents

    Mounting the Base ................9 Surface Mount Plate Dimensions..........10 Installing Probes ................11 FARO Gage Power Supply ........... 12 Supplying Power to the FARO Gage........... 12 FARO Gage Battery Pack............. 13 Installing the Battery Pack ............13 Removing the Battery Pack ............14 Charging the Battery Pack ............14...
  • Page 6 Troubleshooting ............. 39 Power Issues..................41 Hardware Communication Issues..........41 FARO Wireless Connection Issues ..........42 FARO Wireless FAQ ................ 43 FARO Gage Performance Verification Checklist ..44 Issues That Will Degrade Accuracy ..........44 Gage Setup..................45 Probe Setup ..................46 Probe Compensation ..............46 Mounting ..................47...
  • Page 7 FARO Gage May 2011 User Compensation................50 Calibrated Artifact ................50 Chapter 7: Configuring the FARO Gage in CAM2 Gage Hardware Configuration..........53 Probes ................54 Edit Probe ..................55 Probe Compensation Overview ..........55 Compensate Probe ..............56 Hole Method - Guidance............57 Hole Method ................60...

  • Page 9: Chapter 1: Introduction

    Customer Service Representative by Phone, Fax or E-Mail. See “Technical Support” on page 67. Visit the FARO Customer Care area on the Web at www.faro.com to search our technical support database. The database is available 24 hours a day, 7 days a week, and contains hundreds of solutions to product and application questions.
  • Page 10 FARO Gage May 2011 You may also see a few new words. It is important that you understand the meaning of these words before proceeding. digitize Indicates the recording of XYZ coordinates of a point or location in 3D space. The word digitize is the same as the term measure when referring to points.

  • Page 11: General Information

    FLASH is limited to the anonymity of the access methods and the unavailability of documentation for the address structure of the FLASH memory. The only dynamic data stored in the Gage are settings which relate directly to the operation of the Gage. Examples include the probe XYZ position, baud rate for serial Gages, etc.

  • Page 12: Product Environmental Information

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. CAUTION: Any change or modification not expressly approved by FARO Technologies, Inc. may void the user's authority to operate the equipment. DECLARATION OF CONFORMITY Industry Canada Statement: This device complies with RSS-210 of Industry Canada.
  • Page 13 FARO Technologies, Inc., as a producer of electrical and electronic equipment (EEE), has endeavored to meet these environmental responsibilities for managing WEEE. In so doing, FARO is providing the following to inform its customers about the WEEE collection process: In order to avoid any potential dissemination of hazardous substances into the...

  • Page 14: Precautions

    FARO Gage May 2011 Precautions The Gage is a precision measuring instrument that is ruggedized for shop use; however, care must still be exercised in the operating environment when using the Gage. Proper operation and care includes avoiding: • Solvents.

  • Page 15: Chapter 2: Setup

    FARO Gage May 2011 Chapter 2: Setup This Chapter describes the basic setup and packing of the Gage. You should also refer to the FARO Gage Assembly Instructions booklet found inside your Gage shipping case. The FARO Gage Packing Contents The following components and accessories are standard items shipped with every unit.

  • Page 16: Packing The Faro Gage

    May 2011 Packing the FARO Gage The Gage should be packed very carefully to prevent shipping damage. 1 Pack the Power Supply, Probe Case, and Surface Mount Plate, as shown. Figure 2-1 Pack the Power Module, Probe Case, and Surface Mount Plate 2 Grab the Gage with both hands as shown.

  • Page 17: Hardware Setup

    Tighten all mounting bolts to 100-inch pounds. 2 Place the Gage on top of the 3.5” threaded ring. 3 Screw the threaded collar clamp onto the base of the Gage and the 3.5” threaded ring. 4 Use the wrench to tighten the threaded collar clamp.

  • Page 18: Surface Mount Plate Dimensions

    Gage Performance Verification Checklist” on page 44. Surface Mount Plate Dimensions The Surface Mount Plate is used to clamp or bolt the Gage to a stable mounting surface. It is an assembly of a standard 3½” mounting ring and a FARO designed base plate.

  • Page 19: Installing Probes

    Figure 2-5 Standard 3½” Mounting Ring dimensions Installing Probes The probe attaches to the threaded handle at the end of the Gage. Use the 12mm wrench in the Probe Case to install the probe. 1 Hold the button area near the end of the Gage with one hand.

  • Page 20: Faro Gage Power Supply

    May 2011 CAUTION: Do not hold the Gage except in the button area when installing a probe. Holding the Gage at the last joint may stress the tube and damage the system. 2 Rotate the probe clockwise and thread the probe into the Gage.

  • Page 21: Faro Gage Battery Pack

    Your Gage may be powered using the optional battery pack. Install the battery pack to use your Gage when you are not near a power outlet. : It is not necessary to install the battery pack if the Gage is connected to a power outlet.

  • Page 22: Removing The Battery Pack

    Slide the battery pack up to remove. Figure 2-8 Removing the battery Charging the Battery Pack Install the battery pack and connect the Gage to a power outlet and the battery begins charging. Charging automatically stops when the battery pack is completely charged.

  • Page 23: Chapter 3: Operation

    Numerical and Signal Processing The Gage includes a complete electronics system located within the body of the Gage. Signals from each joint are processed and positional data is sent out to the computer. The Gage includes a complete electronics system located within the body of the Gage.

  • Page 24: Faro Gage Handle Buttons

    FRONT BUTTON • The BACK button is red and is nearest the handle. The Gage has two sets of two buttons and an LED, where the FRONT buttons and BACK buttons are redundant and wired together internally. When a button is pressed, the LED light turns on (green or red) and the Computer sounds.

  • Page 25: Referencing The Encoders

    : The Gage does not output data until the error has been cleared. Referencing the Encoders You must first reference each of the six encoders in the Gage. The R EFERENCE dialog box shows all six encoders in error until each is referenced. In NCODERS a systematic manner, rotate joints 1 through 6 until each warning clears.

  • Page 26: Wired Connection

    • The host computer establishes an RS-232 emulation or Serial Port Profile (SPP) connection to the Gage. • Once the connection is established the PC and Gage can transfer data at a rate of 921600bits/second. : If a Gage is connected with USB cable and Bluetooth, only the Bluetooth connection will be active.

  • Page 27: Using - Windows Xp

    Figure 3-5 Connecting the Gage to the Computer All Gages are identified by their serial number. Once a Gage is identified in the list, a persistent SPP connection must be created. Once the connection exists, the software will display the connection’s COM port number, for example COM10.
  • Page 28 FARO Gage May 2011 The Gage USB driver connects to the SPP connection using the FARO Bluetooth Connection Setup utility software. Figure 3-6 Connecting the Gage to the Computer • Start FARO Bluetooth Connection Setup utility software program. • Click the NEW button.

  • Page 29: Using - Windows 7

    The icon without a check box selected is an inactive connection. Figure 3-9 Connecting the Gage to the Computer : No more than two (2) Gage pairings can be active at any one time, but any number can be defined. Editing a Pairing Right-click any Bluetooth pairing icon to edit.
  • Page 30 NTER THE DEVICE S PAIRING CODE 4 Enter the Gage pairing code, faro and click the NEXT button to create the SSP connection. Look down at the status bar in the lower right corner of the screen to see what COM port is assigned to your Gage. This is usually COM3.
  • Page 31 The icon without a check box selected is an inactive connection. : No more than two (2) Gage pairings can be active at any one time, but any number can be defined. Editing a Pairing Right-click any Bluetooth pairing icon to edit.

  • Page 33: Chapter 4: Probes

    This chapter describes the standard Gage probes and optional probes for speciality measurement. The Gage collects data by touching the part with a probe attached to the end of the handle. You can install a variety of probes on your Gage.

  • Page 34: Custom Probes

    32.2 Installing Probes The probe attaches to the threaded handle at the end of the Gage. Use the 12mm wrench in the Probe Case to install the probe. • Hold the button area near the end of the Gage with one hand.

  • Page 35: Renishaw Probe Installation And Operation

    Renishaw Probe Installation and Operation The Renishaw Probe installation and operation is optional. Renishaw probes collect points by touching a stylus to the part. FARO distributes the TP-20 probe. : The Renishaw TP-2 Probe is not supported. TP-20 Probe Kit The TP-20 Probe kit contains: •...
  • Page 36 1 Remove any standard Gage probe. 2 Remove the set screw using the supplied hex wrench. 3 Screw the TP-20 probe body into the Gage and hand-tighten with the C Spanner (S9) wrench. 4 Attach a probe module to the TP-20 probe body. On the probe body and probe module there is a triangle, half-moon, and a square marker that must be matched for the probe to work properly.

  • Page 37: Custom Probe Compensation

    FARO Gage May 2011 Custom Probe Compensation Any probe with a sphere or a point can be Compensated. See “Probes” on page 54. Chapter 4: Probes...

  • Page 39: Chapter 5: Accuracy

    Measurements are well distributed in all regions of the working volume. Compensation and Calibration The Gage is designed to endure the typical stress and impact loads of a “factory floor” measuring tool, as well as survive multiple transportation cycles while maintaining its accuracy throughout its usable life.

  • Page 40: Gage Calibration

    Gage has been changed. Gage Calibration The Gage software has commands that allow you to perform tests that certify the accuracy and repeatability of your Gage. The calibration commands allow you to test the Gage using a holes, a ball bar, or a step gauge.

  • Page 41: Volumetric Accuracy

    Verification Checklist” on page 44. Loss of a Degree of Freedom In a working volume of the Gage there can be a loss of a degree of freedom (natural rotation of transfer case). With this loss, temporary bending occurs on the transfer tubes of the Gage causing a movement of the probe position that cannot be recorded by the Arm’s encoder system.
  • Page 42 • directly above the Gage • in close to the base of the Gage The Gage should always feel fluid in its movement. If excessive force is needed to move to a measuring location, a degree of freedom has probably been lost. The following figures illustrate some of the possible positions of a Gage where a degree of freedom has been lost.

  • Page 43: Chapter 6: Maintenance And Troubleshooting

    Periodic calibration tests should be completed to certify the Gage accuracy and repeatability. See “Gage Calibration” on page 32. FARO recommends you return your Gage to a service center, once a year, for our annual calibration and a 15 point check up. Host Computer The computer is an electronic device containing many sensitive components.

  • Page 44: Mounting Stiffness Test

    Mounting Stiffness Test The Gage is portable and can be mounted in a variety of environments. The Gage is counterbalanced. Therefore, when stress is applied, there will be a restorative force countering the stress. This force will result in deformation in the mounting, which will degrade the performance of the Gage if the deformation is sufficiently large.

  • Page 45: Temperature Considerations

    To maintain certified accuracy in a multitude of environments, the monitoring of temperature and the rate of temperature change is required. The Gage employs a software/hardware solution (patents pending) where a semiconductor temperature sensor is built into each joint.

  • Page 46: Electrostatic Discharge (Esd)

    If you experience anything out of normal operation: 1 Turn off Gage. 2 Wait for at least five seconds before powering the unit on. 3 This should restore communication with the host computer.

  • Page 47: Troubleshooting

    Troubleshooting Error message on host computer. • Contact FARO’s Customer Service by Phone, Fax or E-Mail. See “Technical Support” on page 67. Have the message ready. Probe compensation fails.
  • Page 48 “Gage Calibration” on page 32. Gage records points without pressing either button. • Re-seat the set screw in the Gage handle. If the set screw is not seated correctly it causes intermittent contact to the pin underneath, and random points are taken.

  • Page 49: Power Issues

    Gage and the host computer. PLEASE READ BEFORE BEGINNING THE PROCESS If communication between the computer and the Gage is lost, or if it could not be established, the source of this issue may lie in one or all of the following areas: •...

  • Page 50: Faro Wireless Connection Issues

    FARO Bluetooth Connection Setup utility, but software application does not find the Gage. 1 Make sure the Gage is receiving power and the On/Off switch is set to the ON position. When the On/Off switch is first set to the ON position, the blue LED on the front of the Gage should blink momentarily.

  • Page 51: Faro Wireless Faq

    • Can both USB and Bluetooth wireless Gages be connected simultaneously? Yes. • Can a single Gage connect using both Bluetooth wireless and a USB cable at the same time? No. If both are properly connected, the Bluetooth wireless will be the only active connection for that Gage.

  • Page 52: Faro Gage Performance Verification Checklist

    • Why do I continue to see the message asking if I want to continue to use the FARO Wireless connection? Either the Gage has lost power, or it is out of the 30 feet or 10 meters wireless range. After correcting the problem, click Yes to restore the connection.

  • Page 53: Gage Setup

    6 Measuring using poor techniques; minimum number of measured points per feature, moving while recording individual points, small coverage area, etc. : If the Gage is mounted on granite, do not measure objects that are not mounted to the granite.

  • Page 54: Probe Setup

    FARO Gage May 2011 • In CAM2 Gage, run TEMPERATURE command from the GAGE menu and monitor the temperature in the dialog box. EMPERATURE • For more information, see “Temperature” on page 65. Do not compensate probes during warm-up time.

  • Page 55: Mounting

    Mounting Most accuracy and repeatability problems can be attributed to improper mounting of the Gage. These issues are not always obvious. An apparently stable mount can actually be moving more than the accuracy of the device, directly impacting results and causing system performance degradation.

  • Page 56: Single Point Articulation Test (Spat)

    25% of the Gage's accuracy. 8 Apply approximately five (5) pounds of force to the cone. 9 Note the X, Y and Z deviations. They should not exceed 25% of the Gage's accuracy. Single Point Articulation Test (SPAT) Mounting should always be tested prior to a SPAT test. The SPAT test checks the repeatability of the Gage's X, Y and Z coordinates throughout its range of motion.
  • Page 57 If the sets are not repeatable, you must repeat the test. : The Gage movement should feel fluid. Be careful not to stress the Gage while taking these points or get too close to an end stop since stresses can be amplified near end stops.

  • Page 58: User Compensation

    Actual Length = Specified Length*(1 + CTE*(Current centigrade temperature - 20°C)), where CTE is the Coefficient of Thermal Expansion of the material in ppm/°C. : A 150mm ring gage measured at 25°C made of Steel 1020 will be: XAMPLE 150mm * (1 + 11.7e-6/C*(25°C - 20°C)) = 150.00585 mm If additional support is required, please contact customer support.
  • Page 59 FARO Gage May 2011 4 A copy of the Single Point Articulating Test (SPAT) results. 5 A copy of the Arm Compensation results. 6 Pictures of the setup. Chapter 6: Maintenance and Troubleshooting...

  • Page 61: Chapter 7: Configuring The Faro Gage In Cam2 Gage

    Chapter 7: Configuring the FARO Gage in CAM2 Gage The GAGE menu contains all the commands used to configure the FARO Gage in the CAM2 Gage v2.0 software. : If you are using FARO Gage v1.5 software, these commands are found in the Gage Setup drawer.

  • Page 62: Probes

    Compensate each of these probes before you begin measuring your parts. Click the PERFORM SINGLE POINT ARTICULATION TEST (SPAT) button to run a Single Point Articulation Test (SPAT) with your Gage. You can save this report to a file which you can send to FARO’s Customer Service Department.

  • Page 63: Edit Probe

    Gage. The last axis of the Gage has its own coordinate system, and the location of the center of the ball probe is reported in the probe's coordinate system.

  • Page 64: Compensate Probe

    Compensate Probe When changing the style or dimension of the probe at the end of the Gage, you must compensate it for the Gage to measure and function accurately. Probe compensation is an optimization procedure that requires you to digitize points.

  • Page 65: Hole Method - Guidance

    Figure 7-3 Hole Method Collect all of the points in this method by holding down the FRONT button. The Gage will collect points as fast as possible (“scanning”) until you release the Chapter 7: Configuring the FARO Gage in CAM2 Gage...
  • Page 66 Sweep the handle up to the vertical position, making sure to move in a straight line. Be sure that the ball probe remains seated in the hole. • Release the FRONT button to pause. Chapter 7: Configuring the FARO Gage in CAM2 Gage...
  • Page 67 CAUTION: The probe must be well-seated in the hole when digitizing all compensation points. Even one or two poorly digitized points significantly affects the optimization process, which then has an effect on the accuracy of the Gage. Chapter 7: Configuring the FARO Gage in CAM2 Gage...

  • Page 68: Hole Method

    2 Press and hold the FRONT button. Sweep the handle down to one of the horizontal positions. Be sure that the ball probe remains seated in the hole. 3 Release the FRONT button and repeat for each position. Chapter 7: Configuring the FARO Gage in CAM2 Gage...
  • Page 69 CAUTION: The probe must be well-seated in the hole when digitizing all compensation points. Even one or two poorly digitized points significantly affects the optimization process, which then has an effect on the accuracy of the Gage. Chapter 7: Configuring the FARO Gage in CAM2 Gage...

  • Page 70: Sphere Method

    Even one or two poorly digitized points significantly affects the Position #3 optimization process, which then has an effect on the accuracy of the Gage. Chapter 7: Configuring the FARO Gage in CAM2 Gage...
  • Page 71 • Digitize 15 points around the front hemisphere of the sphere with the probe pointing in position #2. • Digitize 15 points around the side hemisphere of the sphere with the probe pointing in position #3. Chapter 7: Configuring the FARO Gage in CAM2 Gage...

  • Page 72: View Log

    • The Max. Error column displays the displacement of the point with the largest displacement. In order to pass compensation, this value has to be less than the single point accuracy specification of the arm. See “Gage Calibration” on page 32.

  • Page 73: Diagnostics

    Click the PERFORM SINGLE POINT ARTICULATION TEST (SPAT) button to run a Single Point Articulation Test (SPAT) with your Gage. You can save this report to a file which you can send to FARO’s Customer Service Department. For more information, see “Single Point Articulation Test (SPAT)”...

  • Page 75: Technical Support

    • Be sure to read the relevant sections of the documentation to find the help you need. • Visit the FARO Customer Care area on the Web at www.faro.com to search our technical support database. This is available 24 hours a day 7 days a week.
  • Page 76 +1 407 333 8056 Europe: +800 3276 1737, +49 7150 9797-9400 (Worldwide) Asia: +65 6543 0111 Japan: +81 561 63 1412 China: +86 21 6494 8670 India: +91 11 4167 6332 • E-Mail North America: support@faro.com Europe: support@faroeurope.com Asia: salesap@faro.com...
  • Page 77 Japan: support_japan@faro.com China: chinainfo@faro.com India: infoindia@faro.com E-Mails or Faxes sent outside regular working hours usually are answered before 12:00 p.m. the next working day. Should our staff be on other calls, please leave a voice mail message; calls are always returned within 4 hours.
