Plecter Labs Crystal Focus Saber Core LS V6.50 User Manual

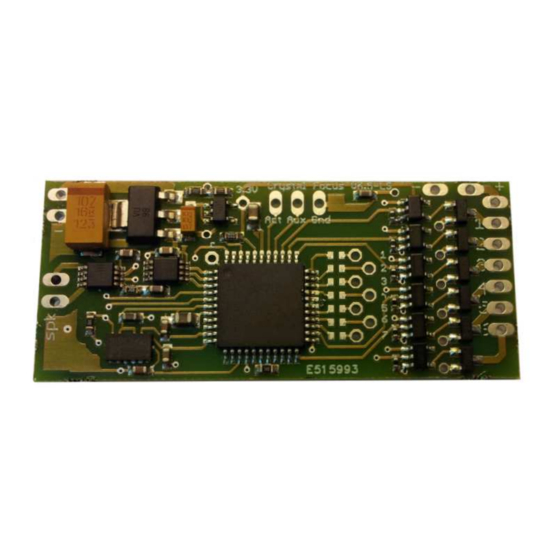

Crystal Focus Saber Core™ LS V6.50
Important release information
Since version 5.x we use WAV sound files, RAW isn't supported anymore
-
Board is compatible with FAT and FAT32 (beta)
-
MacOS is supported (beta)
-
This current CF-LS is inherited from the CF v5.10 and v6.10
-
Simplified gesture recognition settings
-
3D motion sensor for a more detailed & accurate motion sensing
-
Embedded PLI and 7 LED bargraph sequencer
-
Audio output up to 1W/8 ohm or 2W/4 ohm
-
LED strip current support up to 2A per segment (x6 segments)
-
Real Time Configuration Editor R.I.C.E
-
We spent a lot of time writing this manual to ensure all the important
information is provided for proper use of that board. If you are new to saber
building, to the use of Crystal Focus boards, or simply to electronics in
general, we highly recommend you print a copy of that document and keep
it with you during the whole process of installing CF in your hilt.
Modification, copies or distribution of that document is strictly prohibited
Plecter Labs is in no way affiliated, associated, licensed or endorsed by Lucasfilm Ltd., Industrial Light and Magic or any of
their associates.All brands and trademarks listed are the exclusive property of their respective owners.
Illuminated Saber Controller Pro
for LED STRIPS (CF-LS)
User's manual
© Plecter Labs / Erv' Plecter 2005-2013
© Erv' - Plecter Labs – v 6.50 – April 2013
http://www.plecterlabs.com
erv@plecterlabs.com
1
