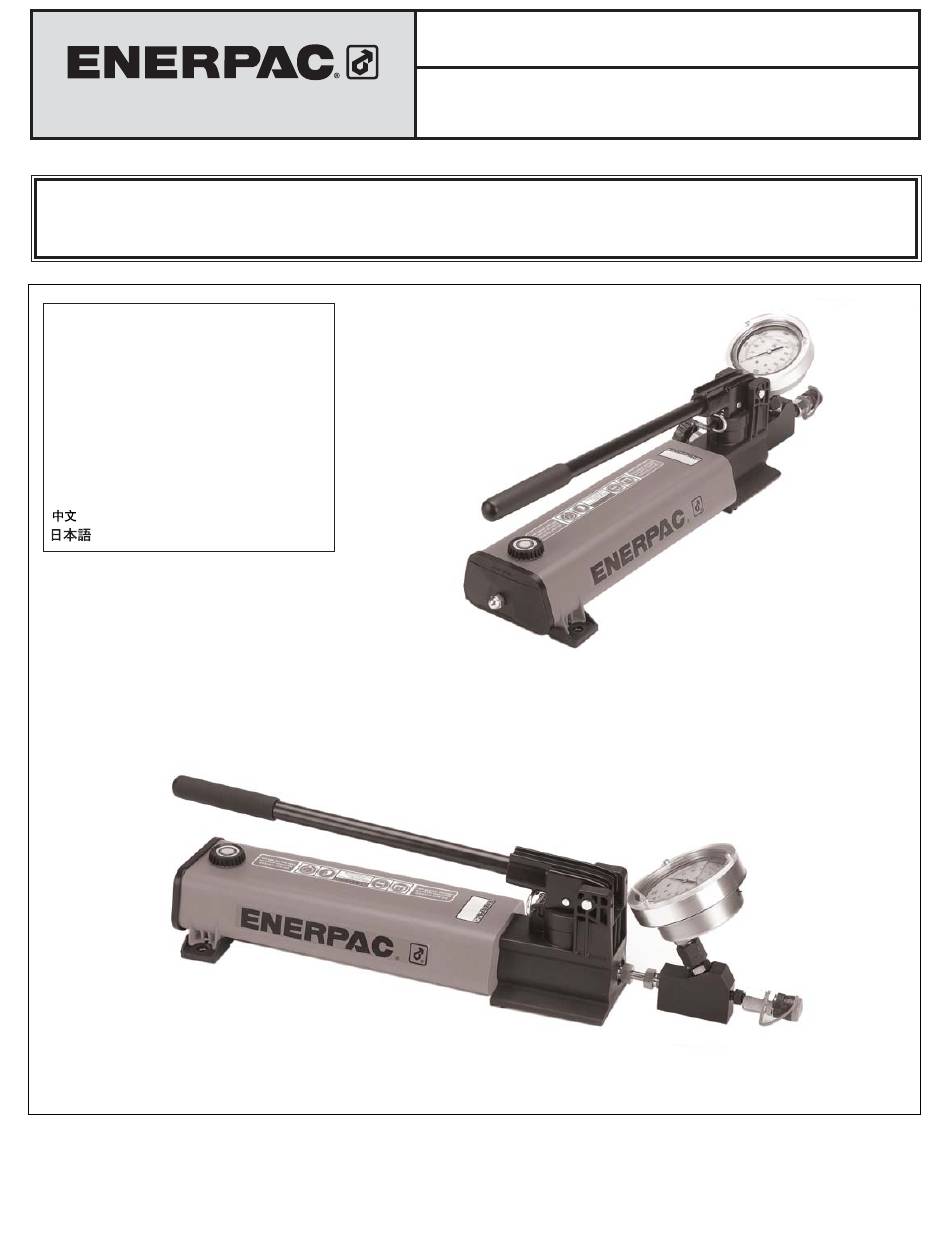

Repair Parts Sheet
HPT-1500 and HPN-2000
POWERFUL SOLUTIONS. GLOBAL FORCE.
Hydraulic Hand Pumps
L2742
Rev. D
06/15
For Date Codes Beginning with the Letter "A"
To Protect Your Warranty, Use Only ENERPAC Hydraulic Oil.
Enerpac recommends that all kit components be installed to insure optimum performance of the repaired product.
Index:
English. . . . . . . . . . . . . . . . . . . . . . .
.1-9
Français . . . . . . . . . . . . . . . . . . . . . . N/A
Deutsch . . . . . . . . . . . . . . . . . . . . . . N/A
Italiano . . . . . . . . . . . . . . . . . . . . . . . N/A
Español . . . . . . . . . . . . . . . . . . . . . . N/A
Nederlands . . . . . . . . . . . . . . . . . . . N/A
Portuguese . . . . . . . . . . . . . . . . . . . N/A
Finnish . . . . . . . . . . . . . . . . . . . . . . . N/A
Norwegian . . . . . . . . . . . . . . . . . . . . N/A
Swedish. . . . . . . . . . . . . . . . . . . . . . N/A
. . . . . . . . . . . . . . . . . . . . . . . . . N/A
. . . . . . . . . . . . . . . . . . . . . . . . N/A
Advertisement
Table of Contents
Related Manuals for Enerpac HPT-1500
Summary of Contents for Enerpac HPT-1500
- Page 1 For Date Codes Beginning with the Letter “A” To Protect Your Warranty, Use Only ENERPAC Hydraulic Oil. Enerpac recommends that all kit components be installed to insure optimum performance of the repaired product. Index: English..... . .
- Page 2 Spring ♦ DC1057025 ★ ✝ B1003016 Reservoir Check Ball, 1/8" ♦ B1047121 DA5255026 Decal, Model No. ♦ DC663338 Foot CR59026 Decal, Enerpac ♦ F866028 Machine Screw CN780026 Decal, Vent/fi ll cap DA4528040 Plunger DC7812026 Decal, “Warning, 1500 Bar” ★ DA4529566...
- Page 3 Notes: Torque to 60-70 in-lbs [6.8-7.9 Nm]. Torque to 25-30 ft-lbs [34-40 Nm]. Torque to 30-35 ft-lbs [40-47 Nm]. Torque to 15-19 ft-lbs [20-26 Nm]. Apply grease (roller bearing quality) to contact surfaces of pin (item 41) and piston clip (item 42). Remove adhesive backing from item 61 and align holes to item 12.
-
Page 4: Before You Begin
15. Remove the valve disc (item 12), gasket (item 61), 3/8" • Loctite 222MS, 242 and 242MS thread locking compound check ball (item 8) and spring (item 7) from the pump base • Enerpac hydraulic oil (item 1). REPLACEMENT PARTS 16. - Page 5 Important: The safety relief valve (item 60) is color coded with the valve disc (Location “D”, Figure 6) Torque to 60-70 in-lbs BLACK ink for HPT-1500 models and with RED ink for HPN- [6.8-7.9 Nm]. 2000 models. Be certain to use the correct valve for your pump Important: The bypass valve (item 63) is factory set at 200-250 model.
- Page 6 25. Apply hydraulic oil to the plunger bore. Grease the piston end and place the plunger assembly (items 16, 20, 21 and 24) into the bore. 26. Place clip (item 42) onto top of plunger (item 16). 27. Place cross pin (item 41) through holes in handle assembly (item 43).
- Page 7 79). Apply Loctite 242MS to threads of capscrews (item 78) before installing. Torque to 6-10 ft-lbs [8-13 Nm]. 40. Fill the pump reservoir with Enerpac hydraulic oil. Note: The HPN and HPT Series pumps have a usable oil capacity of 155 cu.
-
Page 8: Troubleshooting
Note: if pressure drop is within allowable limits, continue on to the end cap. DO NOT overfi ll. Use only Enerpac oil. steps 11 through 14. - Page 9 Oil fi lter screen clogged with debris. Flush pump. Replace fi lter assembly (item 14). Drain old oil from reservoir and refi ll with Enerpac oil. c. Damaged sealing components on the pump Inspect and replace sealing components (items 17, plunger assembly.
- Page 10 Actuant Korea Ltd. speaking African countries No. 10, Bellary Road, Sadashivanagar, Block V Unit 3 3Ba 717, Shihwa Industrial Complex Enerpac Africa Pty Ltd. Bangalore, Karnataka 560 080 Regents Park Estate Jungwang-Dong, Shihung-Shi, No. 5 Bauhinia Avenue 391 Park Road...
