RH ASPEN PARSONS Instructions

PARTS INCLUDED
A
[1] LEG A
B
[1] LEG B
C
[1] LEG C
D
[1] LEG D
E
[1] TABLETOP
ASSEMBLY INSTRUCTIONS
Lay the tabletop (E) upside down on a protected surface.
1.
Attach the table legs (A-D) to the tabletop corner using steel bolts (1).
2.
Assemble the legs to the top following the designated stick labels.
Do not tighten all bolts yet.
For top surface leveling, use the Allen key (6) to turn the adjusting
3.
nuts, making sure that all four legs are flush with the tabletop.
Insert the steel bolts (2) with the spring washer (3) and flat washer
4.
(4), as shown on the illustration on page 2.
Tighten all bolts. Assembly is complete.
5.
A
CARE INSTRUCTIONS
1. To clean, use a soft, dry or damp cloth.
2. Do not use any abrasive cleansers.
IMPORTANT SAFETY INSTRUCTIONS
1. Professional assembly is strongly recommended.
2. For your safety, it is recommended that two or more adults assemble the table.
3. These instructions are provided for your safety. It is important that they are read carefully and completely before assembly.
10/1/18
RH

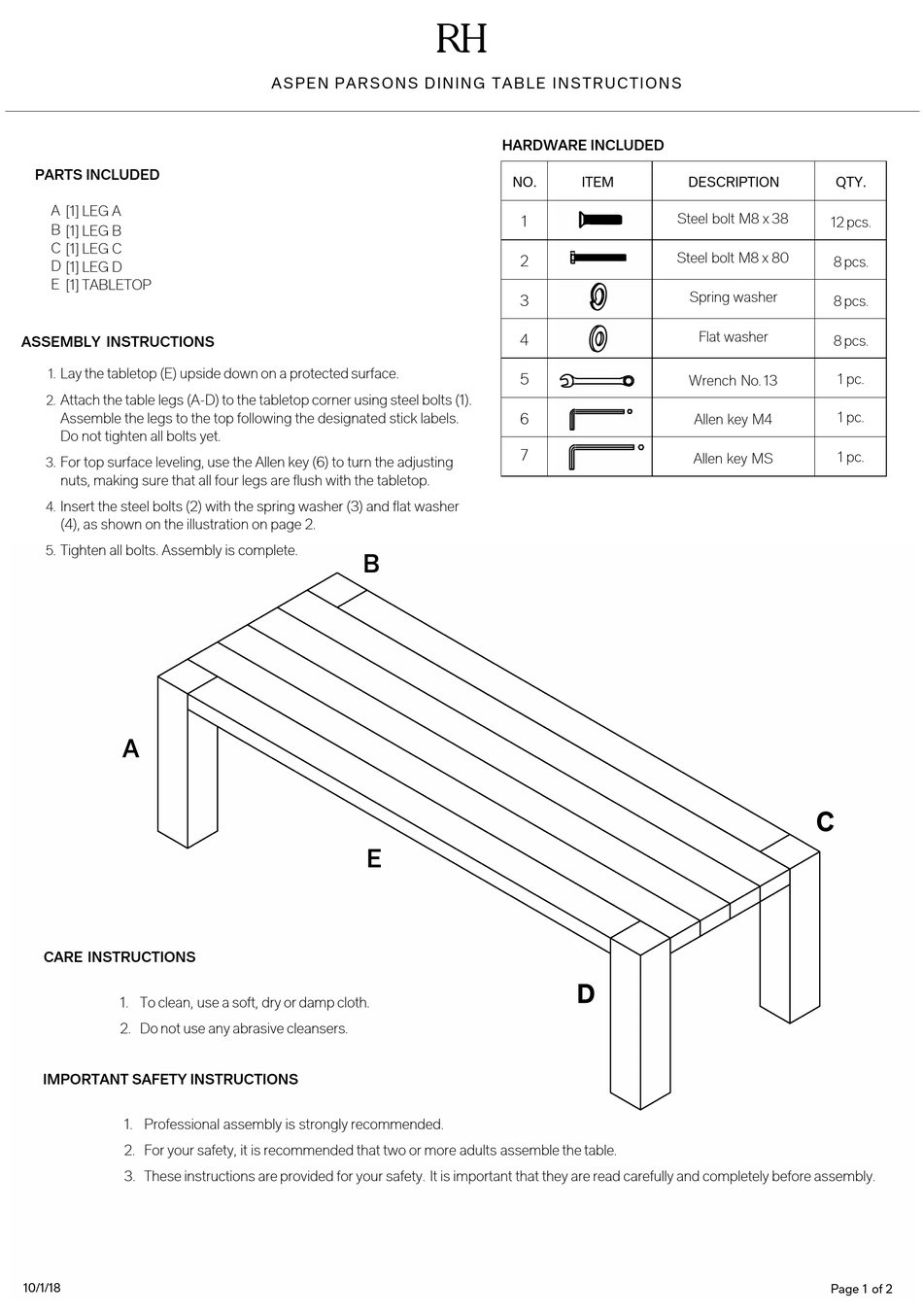

A SPEN PARSON S DI N I NG TA BLE IN STRUC TI ONS
B
E
--
HARDWARE INCLUDED
NO. ITEM
1
-
2
@
3
(@
4
0
5 2)
0
6
�
7
�
D
DESCRIPTION QTY.
Steel bolt M8 x 38
12 pcs.
Steel bolt M8 x 80
8 pcs.
Spring washer
8 pcs.
Flat washer
8 pcs.
1 pc.
Wrench No. 13
1 pc.
Allen key M4
1 pc.
Allen key MS
C
Page 1 of 2
