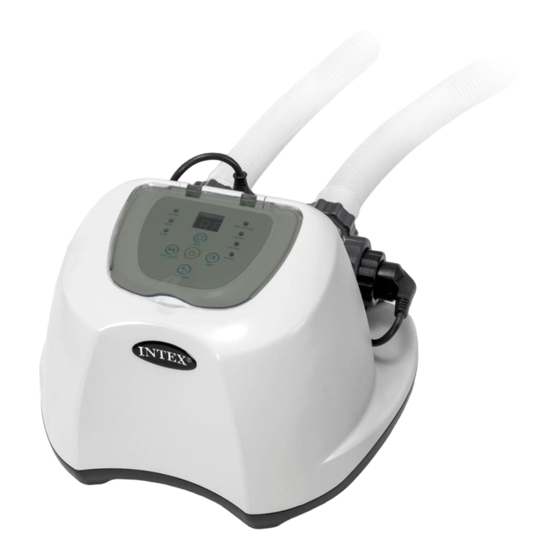

KRYSTAL CLEAN POOLWATER™ LOW-SALT AUTOMATIC

SALTWATER SYSTEM MODEL 6110

CONTROLS BACTERIA AND ALGAE in Storable Swimming pool Waters. DOMESTIC. A

Maximum of 55,000 L (14,530 gal) of water can be treated with one Krystal Clean Poolwater™

Low-Salt Automatic Saltwater System Model 6110 unit. Maximum output of hypochlorous acid

equivalent to 0.16kg (0.35 lb) of free available chlorine per day. For swimming pools, 1.0-3.0 ppm

of free available chlorine must be maintained.

READ THE LABEL AND OWNER'S MANUAL BEFORE USING. KEEP OUT OF REACH OF

CHILDREN. REGISTRATION NO.28720 PEST CONTROL PRODUCTS ACT.

Intex Trading Ltd., 9th floor Dah Sing Financial Center, 108 Gloucester

Road, Wanchai, Hong Kong

The Canadian Group, 430 Signet Drive Suite A, Toronto, Ontario M9L2T6, Canada Tel: (416)746-3388

WARNING:

Operating Krystal Clean Poolwater™ Low-Salt Automatic Saltwater

System Model 6110 without water flow through the cell can cause a build up of flammable gases

which can result in FIRE OR EXPLOSION.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

CONTROL UNIT WARNING LABEL (CANADA)

Table of Contents

Need help?

Do you have a question about the Krystal Clean Poolwater 6110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intex Marketing Krystal Clean Poolwater 6110

Page 1 2015-6332 2016-02-09 KRYSTAL CLEAN POOLWATER™ LOW-SALT AUTOMATIC SALTWATER SYSTEM MODEL 6110 CONTROLS BACTERIA AND ALGAE in Storable Swimming pool Waters. DOMESTIC. A Maximum of 55,000 L (14,530 gal) of water can be treated with one Krystal Clean Poolwater™ Low-Salt Automatic Saltwater System Model 6110 unit. Maximum output of hypochlorous acid equivalent to 0.16kg (0.35 lb) of free available chlorine per day.
Page 2 Children can fall into bucket and drown. Keep children away from bucket with even a small amount of liquid. WARNING BUCKET LABEL (CANADA) SIZE: 180mm x 70mm DATE: 07/11/2007...
Page 3 WARNING: RISK OF ELECTRIC SHOCK. CONNECT ONLY TO GROUNDING TYPE RECEPTACLE PROTECTED BY A CLASS A GROUND FAULT CIRCUIT INTERRUPTER (GFCI). ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ PLUG WARNING LABEL (CANADA)
Page 4 ©2007 Intex Marketing Ltd. - Intex Trading Ltd. - Intex Recreation Corp. All rights reserved. ®™ Trademarks used in some countries of the world under license from Intex Marketing Ltd. to Intex Trading Ltd. and Intex Recreation Corp., P.O. Box 1440, Long Beach CA 90801.
Page 5 IMPORTANT SAFETY RULES Read, Understand, and Follow all Instructions Carefully before Installing and using this Product. OWNER’S MANUAL Krystal Clean Poolwater™ Low-Salt Automatic Saltwater System Model 6110 To find out more about additional Intex products, please visit our website. IMPORTANT! DO NOT RETURN PRODUCT TO STORE To purchase parts and accessories or to obtain non-technical assistance, Visit www.intexcorp.com...
Page 6: Table Of Contents
TABLE OF CONTENTS Warnings................3-4 Parts List & Reference............5-7 Product Information & Specifications........ 8 Set Up Instructions.............. 9-11 Salt and Pool Water Volumes..........12-13 Operating Instructions............14-18 Intex Pools Operating Time Table........15-16 Non-Intex Pools Operating Time Table....... 16 Alarms...................
Page 7 SAFETY RULES IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS CAUTION This product is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity.
Page 8: Warnings
KRYSTAL CLEAN POOLWATER™ LOW-SALT AUTOMATIC SALTWATER SYSTEM MODEL 6110 110 – 120 V~, 60 Hz, 1.6 A THERMALLY PROTECTED WEATHERPROOF ENCLOSURE CSA ENCLOSURE 3 DOUBLE INSULATED AND GROUNDED FOR USE WITH STORABLE SWIMMING POOLS ONLY. CAUTION FOR CONTINUED PROTECTION AGAINST POSSIBLE ELECTRIC SHOCK, USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING.
Page 9: Parts List & Reference
PARTS LIST NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale. SAVE THESE INSTRUCTIONS Page 5/ 29...
Page 10 PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts.A NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale. SAVE THESE INSTRUCTIONS Page 6/ 29...
Page 11 PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. REF. NO. CONNECTI ON TO CONNECTI CONNECTI ABOVE ON TO ON TO GROUND PART FILTER FILTER DESCRIPTION QTY. POOLS COMMON PUMPS...
Page 12 PRODUCT INFORMATION/SPECS HOW SANITIZER IS GENERATED Common salt (sodium chloride) is made up of two elements, sodium and chlorine. During the installation of your Saltwater System, a measured quantity of salt is dissolved in the saltwater tank with pool water to make it slightly salty. This salty water is passed through the saltwater system’s electrolytic cell to produce HOCL which dissolves instantly in the water.
Page 13: Set Up Instructions
SET-UP INSTRUCTIONS IMPORTANT IMPORTANT • The saltwater system must be installed as the last piece of pool equipment in the water return line to the pool as displayed in Fig. 6. This location extends the life of the titanium plates. •...
Page 14 AVE THESE INSTRUCTIONS Page 10 For connection to filter pumps with 32mm (1-1/4”) hose size: 1. If your above-ground-pool is filled up with water, unscrew the strainer grids from the strainer connectors and insert the black hat-like plugs into the strainer connectors to prevent water from flowing out of pool. Go to step 2 directly if your pool is empty.
Page 15 SAVE THESE INSTRUCTIONS Page 11 For connection to filter pumps with 38mm (1-1/2”) hose size: Do not use adapter A (15) 1. If your above-ground-pool is filled with water, close the plunger valves before saltwater system installation. Go to step 2 directly if your pool is empty.
Page 16 ADDING SALT SALT & POOL WATER VOLUMESSALT & POOL WATER VOLUMES Use only Fine Sodium Chloride Salts (table salt type) Use only fine sodium chloride (NaCl) salt that is at least 99.8% pure. Do not use salt pellets or crystals. Do not use iodized or yellow (yellow prussiate of soda) colored salt.
Page 17: Operating Instructions
OPERATION INSTRUCTIONS WARNINGARNING • Risk of electric shock. Connect this product only to a grounding type receptacle protected by a ground-fault circuit interrupter (GFCI). Contact a qualified electrician if you cannot verify that the receptacle is protected by a GFCI. •...
Page 18: Intex Pools Operating Time Table
INTEX POOLS OPERATING TIME TABLE This table shows the operating time required for normal use of the Saltwater System with above ground pools. Number of Water Capacity days before (Calculated at 90% for salt and water Frame Pool Pool Size Level Level and 80% for Easy Set...
Page 19: Non-Intex Pools Operating Time Table
INTEX POOLS OPERATING TIME TABLE (continued) This table shows the operating time required for normal use of the Saltwater System with above ground pools. Water Capacity Number of (Calculated at 90% for days before Frame Pool salt and water and 80% for Easy Set Level Pool Size Level...
Page 20 (continued) OPERATION INSTRUCTIONS Minimum Water Level The water level in the tank may drop to or below the “MIN” line marked on the inner wall depending on the actual flow rate of water through the system. The flow rate is dependent on filter-pump size, pool size, filter cartridge condition (a dirty filter reduces the flow rate considerably) and pool water level.
Page 21 (continued) OPERATION INSTRUCTIONS Pool Volume Calculation Cubic Meters Gallons Types of Pool (pool size in meters) (pool size in feet) Length x Width x Average Depth x Rectangular Length x Width x Average Depth Length x Width x Average Depth x Length x Width x Average Depth x Circular 0.79...
Page 22: Alarms
ALARMS Automatic Alarms No sanitizer production will occur if “Low Water Flow”, “Low Saltwater Level in the saltwater tank” or “High Salt Concentration” conditions are detected. If any of these conditions occur then the saltwater system will sound an alarm that indicates sanitizer production has stopped. A buzzer will sound for an hour and the right side red LED on the control panel will light up.
Page 23 ALARMS (continued) Removing Salt If too much salt has been added, a buzzer will sound for an hour and the right side red LED on the control panel will light up (see “Automatic Alarms”). The water in the saltwater tank must be replaced as follows: WARNING Always unplug this product from the electrical outlet before removing, cleaning, servicing or...
Page 24 ALARMS (continued) 5. Attach the female end of the garden hose to the drain connector (19). See Fig. 14. 6. Place the other end of the hose in an area where the water can be safely drained away from the house, plants, etc.
Page 25: Maintenance
MAINTENANCE SALTWATER TANK, SALT CONTAINER AND WATER FILTERS CLEANING Clean the saltwater tank, salt container, and water filters every 2 weeks. 1. Drain all water out from the saltwater tank. See "Removing Salt". 2. Remove tank cover (3) and lift the saltwater tank (9) off of the base unit. 3.
Page 26: Long Term Storage
LONG TERM STORAGE 1. Disconnect power cord from electrical outlet. 2. After pool is emptied of all water, disconnect the Saltwater Pool System/Filter Pump from the pool hose, reversing the installation instructions. 3. Air-dry the unit before storage. 4. Store the unit and accessories in a dry, temperature controlled, between 5 degrees Celsius (41 degrees Fahrenheit) and 38 degrees Celsius (100 degrees Fahrenheit) storage location.
Page 27: Pool Maintenance And Chemical Definitions
POOL MAINTENANCE & CHEMICAL DEFINITIONS Parameters Swimming pools Free available chlorine 1.0 - 3.0 ppm 7.2 - 7.8 Total alkalinity 100 - 120 ppm Calcium hardness 200 - 300 ppm Stabilizer (cyanuric acid) 30 - 100 ppm HOCL - A very effective killer of algae and bacteria known as hypochlorous acid. Is the sanitizer (HOCL) present in pool water.
Page 28: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Increase the saltwater system operating time per day. See Insufficient operating “operating Instructions” hours of the saltwater Drain out all the water in the system. saltwater tank. Refill water and Insufficient salt INSUFFICIENT add salt in the saltwater tank. SANITIZER concentration in the See “How to Add Salt”...
Page 29: General Aquatic Safety
SAFETY GUIDELINES GENERAL AQUATIC SAFETY Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. To reduce your risk of injury, read and follow all product, package and package insert warnings and instructions. Remember, however, that product warnings, instructions and safety guidelines cover some common risks of water recreation, but do not cover all instances or risk and/or danger.
Page 30: Limited Warranty
LIMITED WARRANTY Your Krystal Clean Poolwater™ Low-Salt Automatic Saltwater System has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies only to the Krystal Clean Poolwater™ Low-Salt Automatic Saltwater System. The provisions of this Limited Warranty apply only to the original purchaser and is not transferable.
Page 31 POST THIS WARNING NEAR YOUR POOL DANGE DANGER NO DIVING OR JUMPING SHALLOW WATER DIVING MAY RESULT IN PERMANENT INJURY OR DEATH • Be Safe. Swim with a friend. • Children must be accompanied by an adult. • Don’t swim when using alcohol or drugs. •...
Page 32 COUNTRIES/REGIONS SERVICE CENTRE LOCATIONS • UNITED STATES NTEX RECREATION CORP. • CANADA 14779 Bar Harbor Road Fontana, CA 92336 Tel: 1-800-234-6839 Fax: 310-549-2900 Website: www.intexcorp.com (U.S./Canada only) Consumer Service Hours: 8:30 am to 5:00 pm Pacific Time, Mon. thru F .
Page 33 All rights reserved Printed in China ®™ Trademarks used in some countries of the world under license from/®™ Intex Marketing Ltd. To Intex Trading Ltd., 9th Floor, Dah Sing Financial Centre, 108 Gloucester Road, Wanchai, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 •...
