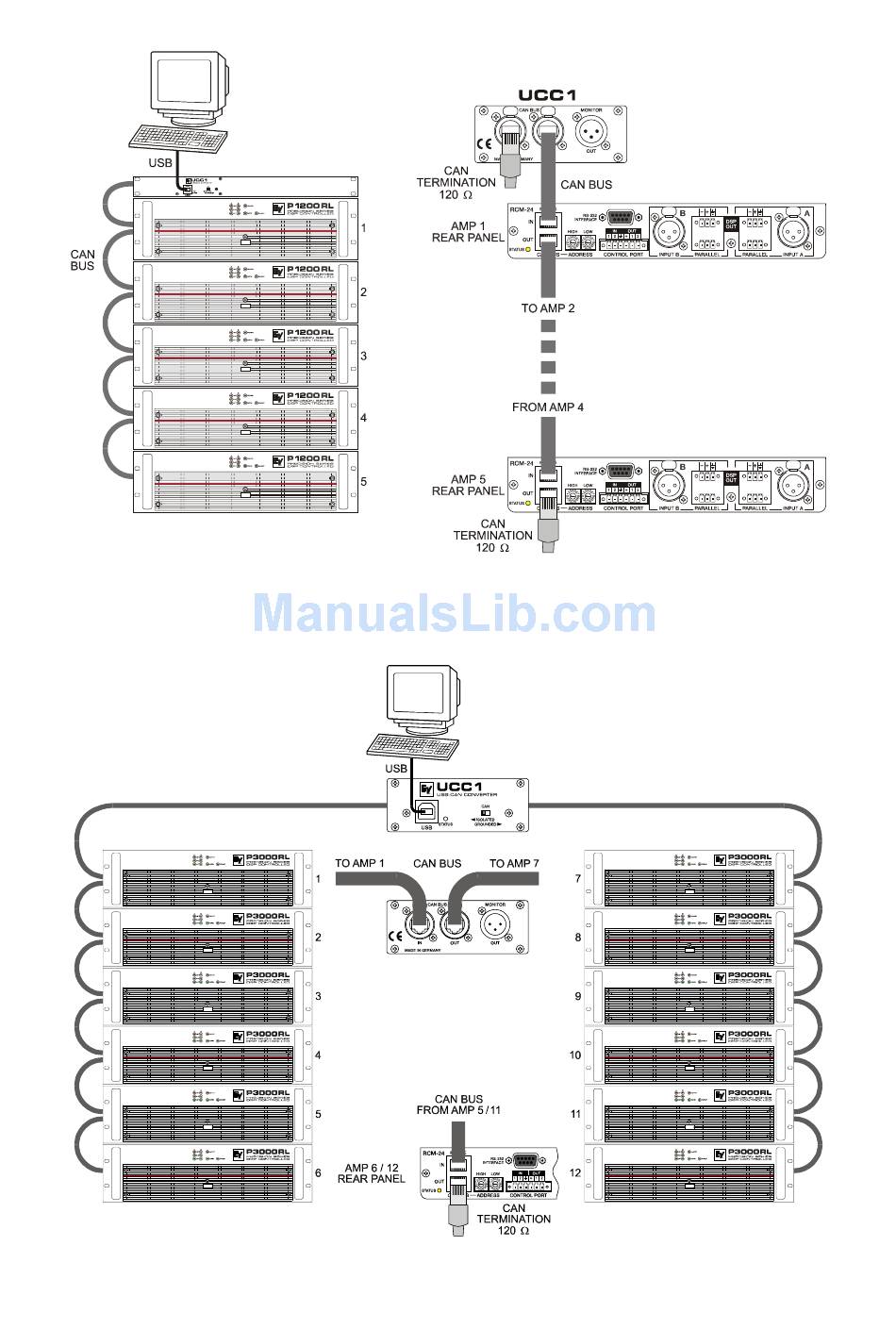

Fig 4:
System set-up with 5 amps and a single UCC1 / PC being the first unit on the bus
Terminators at the UCC1 (first unit) and at the amp No.5 (last unit on the bus)
Fig 5:
System set-up with 2 racks and a single UCC1 / PC in the middle
Terminators at amp No. 6 (first unit) and amp No. 12 (last unit on the bus)
