Quick Setup Guide
EdgeIPS
TM

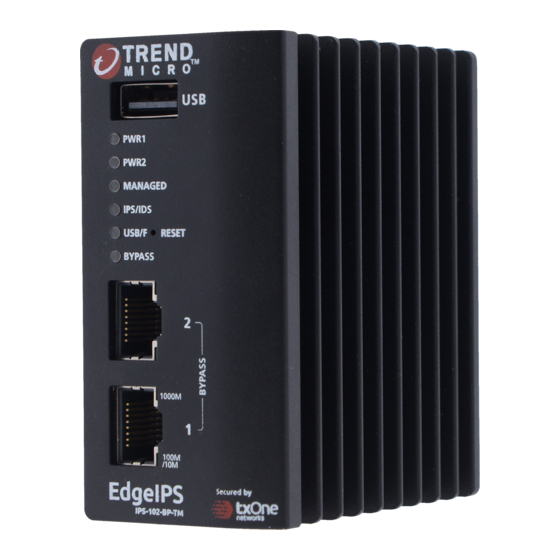

EdgeIPS is a Transparent Security Box fitted with dual
Ethernet LAN ports. Users can efficiently adapt the
palm-sized EdgeIPS into a flexible solution for the
challenges of Ethernet communications.
USB
PWR1
PWR2
MANAGED
IPS/IDS
USB/F
RESET
BYPASS
2
1000M
1
100M
/10M
Secured by
IPS-102-BP-TM
2
1
Examining the EdgeIPS
EdgeIPS Front Panel
EdgeIPS Appliance
Terminal Block
USB
PWR1
PWR2
MANAGED
IPS/IDS
USB/F
RESET
BYPASS
2
1000M
1
100M
/10M
Secured by
IPS-102-BP-TM
1
Opening and Inspecting
Verify that the EdgeIPS package
contains the following items:
USB
PWR1
PWR2
MANAGED
IPS/IDS
USB/F
RESET
BYPASS
2
1000M
1
100M
/10M
Secured by
IPS-102-BP-TM
DIN Rail mount kit
(assembled to EdgeIPS)
EdgeIPS Back Panel
the Package
Console Cable
(USB-Type-C)
Documents
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trend Micro txOne networks EdgeIPS IPS-102-BP-TM
Summary of Contents for Trend Micro txOne networks EdgeIPS IPS-102-BP-TM

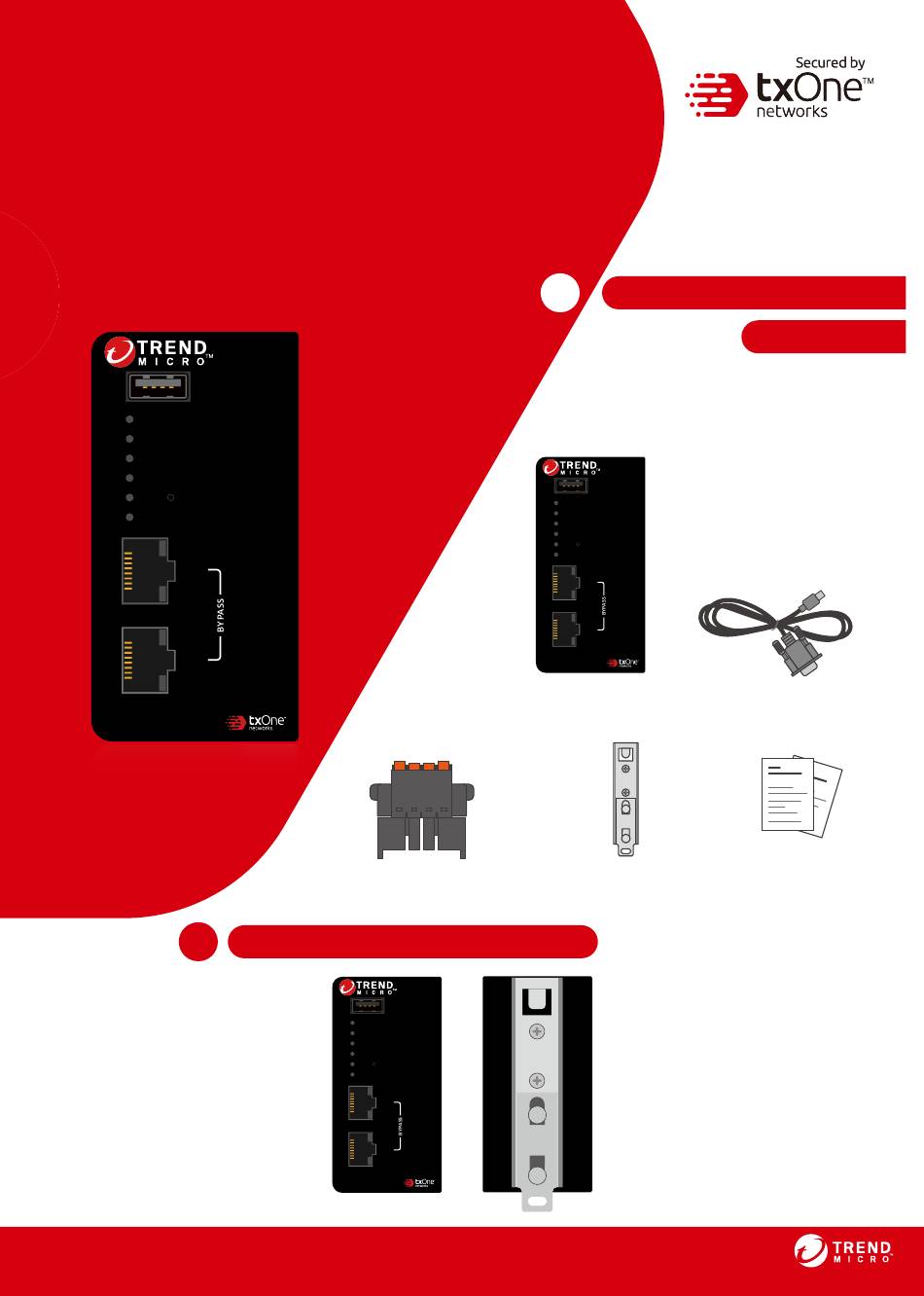

- Page 1 Quick Setup Guide EdgeIPS EdgeIPS is a Transparent Security Box fitted with dual Ethernet LAN ports. Users can efficiently adapt the palm-sized EdgeIPS into a flexible solution for the Opening and Inspecting challenges of Ethernet communications. the Package Verify that the EdgeIPS package contains the following items: PWR1 PWR2...
-
Page 2: Offline Mode
Deployment Checklist Requirement Details Ethernet Cables - Connect to port 1 to access web console management. - Connect swtiches or filed devices to port2. Default IP Address of Default web console access information: Web Console https://192.168.127.254 User name: admin Password: txone Laptop with Ethernet The computer must have one of the following browsers installed: Port (RJ-45 Type) -
Page 3: Reset Type
LED Indicators The function of each LED is described in the table below Amber Power 1 is ON PWR1 Power 1 is OFF Amber Power 2 is ON PWR2 Power 2 is OFF Green OT Defense Console Sync (ODC) is enabled and ODC is connected MANAGED OT Defense console sync is disabled Green... - Page 4 Installing the EdgeIPS - DIN Rail Mounting The aluminum DIN Rail attachment plate should already be fixed to the back panel of the EdgeIPS when you take it out of the box. If you need to reattach the DIN Rail attachment plate to the EdgeIPS, make sure the stiff metal spring is oriented towards the top, as shown in the following pictures.
-
Page 5: Top View
Wiring the Redundant Power Inputs Wiring the Redundant Power Inputs The Trend Micro EdgeIPS has two sets of power inputs – power input1 and power input2. The top and side views of the terminal block connector are shown below. V1+ V1-... - Page 6 Wiring the Redundant Power Inputs Software Configuration Before connecting the PC/Laptop to EdgeIPS, the PC's IP address should be set to 192.168.127.100. After that, connect the PC and EdgeIPS using an Ethernet cable. Open a web browser on your PC and type “https://192.168.127.254” into the address bar. A pop-up window will open to ask for user name and password.
- Page 7 Setting the Management IP Address 1. Go to [ Device ] > [ Device Setting ] 2. In the [Network Setting] plane, configure management IP address for EdgeIPS Task Action Device IP Address Configure Management IP Address of the EdgeIPS Netmask Configure Netmask of the EdgeIPS Gateway...
- Page 8 Checking the LED to Confirm Status The LED on each Ethernet port shows the deployment status. No Light The EdgeIPS appliance cannot communicate with a network. Left LED0:(Green) GE LINK/ACT (off = no link, on = 1 Gbps link, blinking = activity) RJ45 Right LED1:(Green) 10/100Mbps LINK/ACT (off = no link, on = 10/100 Mbps link,...
-
Page 9: Contact Information
‘L.P.S’ or ‘Limited Power Source’, rated 12 to 48 VDC, 0.605 A (min.) © 2021 Trend Micro Incorporated. All Rights Reserved. Trend Micro and the t-ball logo are trademarks or registered trademarks of Trend Micro Incorporated. All other company and/or product names may be trademarks or registered trademarks of their owners.
