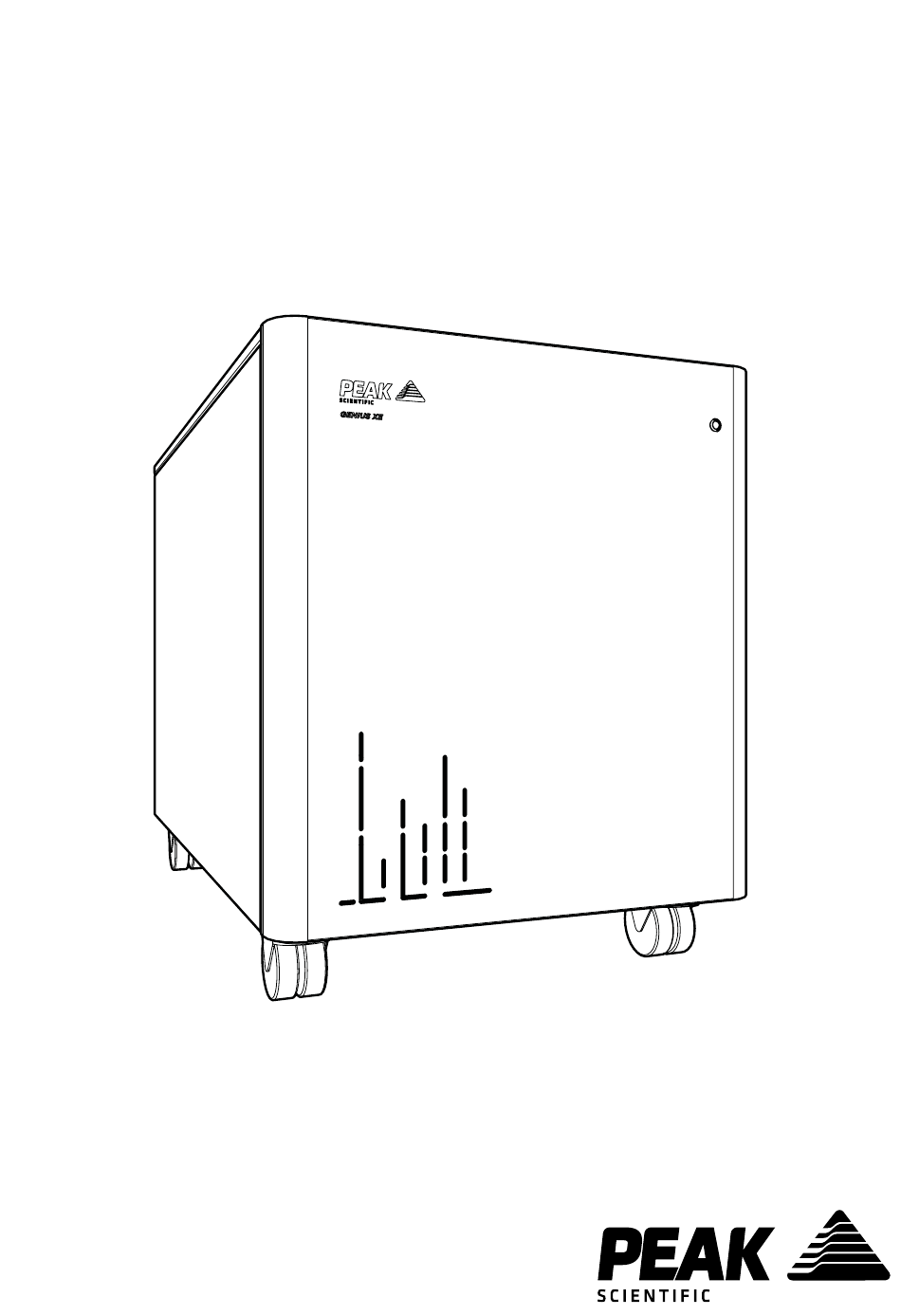

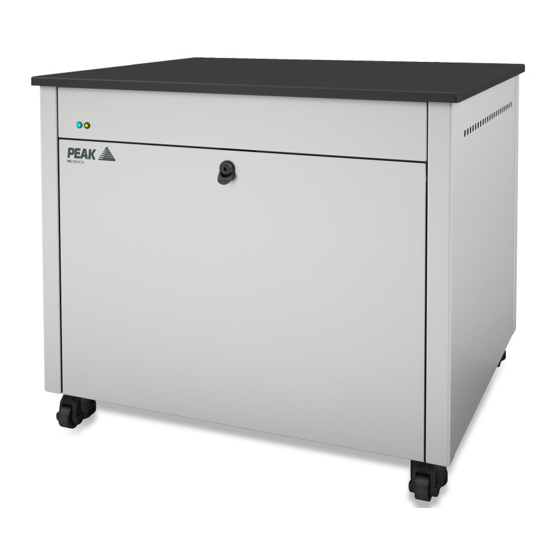

- Page 1 Genius XE SCI 2 User Manual Genius XE SCI 2 User Manual Rev 11 RSID 3607 EN November 2021...
-
Page 2: Table Of Contents
CSA Compliance Statement Technical Specification Unpacking Fittings Kit Contents Installation Generator Environment Generator Overview General Dimensions Genius XE SCI 2 Rear Connections Unit Controls Drain Connection Electrical Connection Start-Up Sequence Connecting to the application Tubing Lengths Normal Operation On Demand Gas... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Warranties And Liabilities
Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch... -
Page 5: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 6: Eu Declaration Of Conformity
• Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. • FCC 47 CFR Part 15 class A Unintentional radiators; Conducted and Radiated emissions limits. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 7: Uk Declaration Of Conformity
BS61326-1:2013 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 8: Weee Compliance Statement
Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe. All PEAK products that are subject to the WEEE directive are compliant with the WEEE marking requirement. Such products are marked with the “crossed-out wheelie bin”... -
Page 9: Csa Compliance Statement
(UL) standards and certify the product to be in compliance to the relevant standards. Peak products are certified to the current in force revision of the following standards in order to cover both Canadian and United States requirements for “Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory use, Part 1: general Requirements”. -
Page 10: Technical Specification
Technical Specification Environment Genius XE SCI 2 Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 30°C (86°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* −20°C (−4°F) Maximum Storage Temperature* 60°C (140°F) *NOTE – Storage below 5°C (41°F) for long periods is not recommended. When taken out of storage the Generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation. -
Page 11: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator to the desired location. -
Page 12: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. 1/4” Teflon Tubing × 3m × 3 2. 5/16" Teflon Tubing × 3m ×... -
Page 13: Installation
Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 14: Generator Overview
Generator Overview General Dimensions 570 mm / 22.4” 897 mm / 35.3” The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 14... -
Page 15: Genius Xe Sci 2 Rear Connections
Genius XE SCI 2 Rear Connections 1. IEC Power Inlet 2. Power Switch 3. Curtain Outlet 4. Source Outlet 5. Exhaust Outlet 6. Drain Outlet Ensure all inlets and outlets are connected to correct sources and applications WARNING All connections should only be carried out by trained personnel... -
Page 16: Drain Connection
Drain Connection Fit the 6mm push fit fitting to the drain port located on the output panel. Tighten using a 16mm or 5/8” spanner. Use the 6mm tubing to connect this to a suitable drain connection or container. It should be noted that the Generator can expel a considerable amount of water from this (dependant on ambient humidity). -
Page 17: Electrical Connection
Electrical Connection Connect the generator to an appropriate single-phase supply, refer to the generator serial plate for input specification and ensure your supply matches the requirements. If an appropriate mains power cords is not supplied or a substitute one is used then ensure that all components of it the plug, cord and connector have adequate ratings for the generator and appropriate approvals for the country of use. -
Page 18: Start-Up Sequence
Start-Up Sequence Before the Generator is connected to the application, the Generator should be operated in isolation (i.e. not connected to the application) for thirty minutes. This is to ensure any impurities present are purged from the system. Failure to do this may harm the application. CAUTION Once this is done, the Generator can be re-connected to the mains and switched on. -
Page 19: Connecting To The Application
” O/D, ⁄ ” I/D). Tubing and fittings not supplied in the fittings kit. > 40 metres: Contact Peak Scientific with the relevant distance and we will calculate the flow resistance and the tubing size required. A combination of ”/ ⁄... -
Page 20: Normal Operation
Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the generator has been purchased. Page 20... -
Page 21: Service Requirements
Genius XE SCI 2 Annual Maintenance Kit* www.peakscientific.com/ordering 4 Years Genius XE SCI 2 Year 4 Service Kit* www.peakscientific.com/ordering * Quote your generator serial number when ordering your Maintenance Kit to ensure selection of the appropriate kit for your generator. -
Page 22: Service Indication
Service Indication Reset Once the service has been completed the Service Indication LED can be reset in the main control PCB. This will be performed by the Peak Service Engineer or trained service representative that completes the service operation. Page 22... -
Page 23: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 24: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 25: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the Generator and that the power socket is turned on. The Generator will not switch on and the power switch does not illuminate. • Check the fuse in the power cord plug. •... - Page 26 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 27 Page 27...
