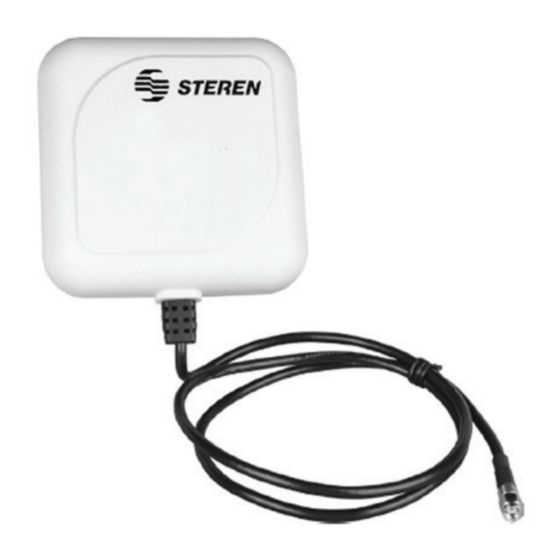

Steren COM-835 Instruction Manual

Before using your new Electronic insect killer, please read
Before using your new High gain WiFi outdoor antenna,
this instruction manual to prevent any damage. Put it away
please read this instruction manual to prevent any damage.
in a safe place for future references.
Put them away in a safe place for future references.
-Do not expose this device to extreme temperatures.
-Do not use or store this device anywhere it might get wet. This could
cause malfunctions and the risk of electrical shock.
-Always use a clean, dry, and soft rag in order to clean this device.

MAIN FEATURES

-Directional antenna with 9 dBi gain.
-Supports frequencies between 2.4 – 2.5 GHz.
-Ideal for access points or wireless bridges.
In order to begin your new high-gain antenna, follow these steps:
1.- Disconnect the access point form the power source.
2.- Locate the SMA connector input.
3.- If you had an antenna previously installed, remove it.
4.- Connect this antenna through the SMA connector. Make sure to screw it
in completely.
5.- Connect the access point to the power source.

IMPORTANT

INSTRUCTION

SPECIFICATIONS

Frequency Range: 2.4 – 2.5 GHz
Impedance: 50 ohms
VSWR: 1.92 Max.
Return Loss: - 10 dB Max.
Radiation Pattern: Directional
Gain: 9 dBi
Input: 1 W
Operating Temperature: -20°C to 65°C
Storing Temperature: -30°C to 75°C
Cable Length: 1 m
Antenna Cover: ABS
Connector: SMA with inverted plug
Dimensions: 120 x 120 x 48 mm
Weight: 253.4 g
Before using your new Electronic insect killer, please read
Product design and specifications are subject to change
this instruction manual to prevent any damage. Put it away
without previous notice.
Product: High gain WiFi outdoor antenna
Part number: COM-835
Brand: Steren
This Steren product is warranted under normal usage against defects in
workmanship and materials to the original purchaser for one year from the
date of purchase.
1.- This warranty card with all the required information, invoice or
purchase ticket, product box or package, and product, must be
presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free
of charge.
3.- The repairing time will not exceed 30 natural days, from the day the
claim was received.
4.- Steren sell parts, components, consumables and accessories to
customer, as well as warranty service, at any of the addresses mentioned
later.
THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God,
mishandling, leaky batteries, failure to follow enclosed instructions,
improper repair by unauthorized personnel, improper safe keeping,
among others.
a) The consumer can also claim the warranty service in the purchase
establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice
or purchase ticket.

RETAILER INFORMATION

Name of the retailer
Address
Product
Brand
Part number
Serial number
Date of delivery
In case your product fails or have questions, please contact your
nearest dealer. If you are in Mexico, please give a call to our Call
Center. Call Center
01 800 500 9000

WARRANTY

CONDITIONS
