Introduction
This user guide helps user to restore the default firmware to the CC3200 camera board
when the camera failed to work with customer firmware.
Identify the Board Revision
There are two revision of CC3200 camera board, user can identify the revision from the
board PCB. And the default firmware is different, for revision A board please use the firmware
from
http://www.arducam.com/downloads/wifi_camera/factory_default/RevA/factory_default_reva.z
ip
for the revision B board please use firmware from
http://www.arducam.com/downloads/wifi_camera/factory_default/RevB/factory_default_revb.z
ip
Configure the UniFlash Setting

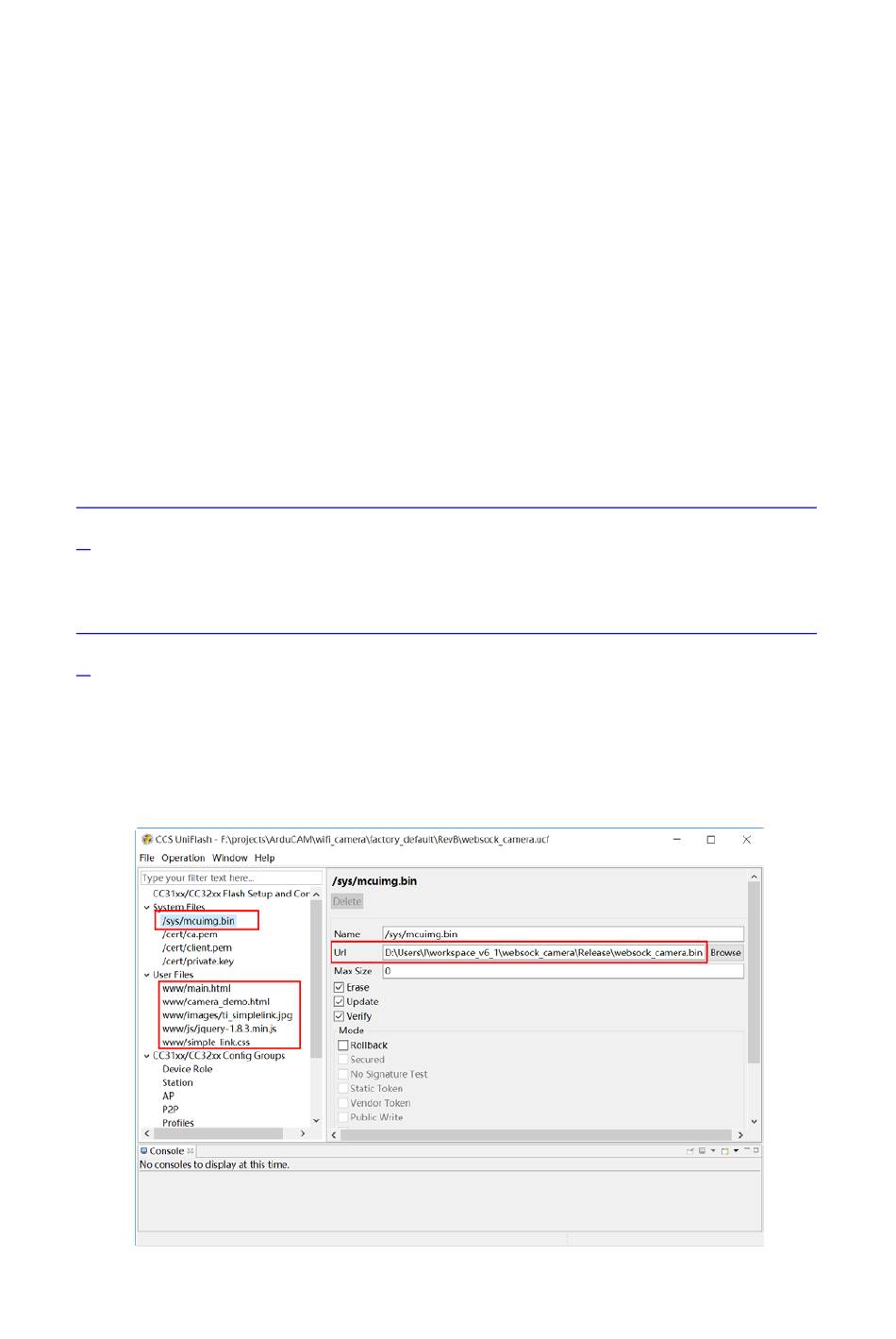

Unzip the files and open the ucf or usf file, modify the files path listed in the red box to your
own files path.
CC3200 Camera Board User Guide
Restore to Factory Default
Advertisement
Table of Contents
Related Manuals for ArduCAM CC3200
Summary of Contents for ArduCAM CC3200
- Page 1 CC3200 Camera Board User Guide Restore to Factory Default Introduction This user guide helps user to restore the default firmware to the CC3200 camera board when the camera failed to work with customer firmware. Identify the Board Revision There are two revision of CC3200 camera board, user can identify the revision from the board PCB.
- Page 2 User need additional USB-Serial cable to download the firmware. Modify the COM port number to your own USB-Serial port number. Connect the USB-Serial cable to the CC3200 camera board TX/RX pins. Short the SOP2 jumper and press the reset button each time operation. Note...
