- Page 1 USER MANUAL PHOTOBIO•VP...
-
Page 2: Product Overview

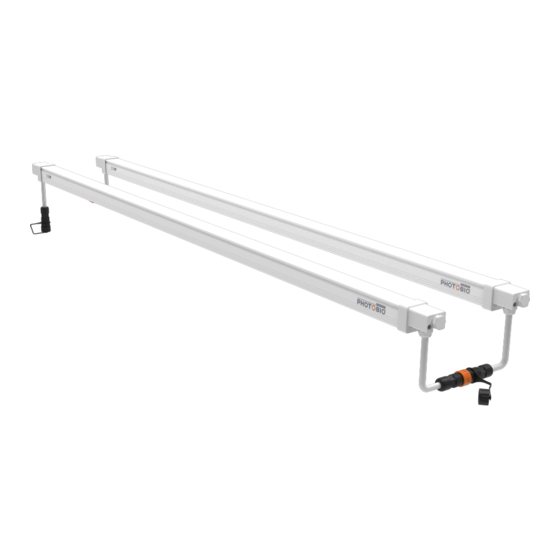

USER MANUAL PRODUCT OVERVIEW PHOTOBIO•VP is a modular, high-efficiency LED designed for ver�cal farming and propaga�on applica�ons. PHOTOBIO•VP has a tailored spectrum proven worldwide in everything from heavily automated massive ver�cal farms down to single rack installa�ons. PHOTOBIO•VP’s slim ver�cal profile maximizes ver�cal real estate allowing greater produc�on space, and its modular design lets you link and power mul�ple 100–277V fixtures from a single power input. -
Page 3: Product Dimensions
• Account for small parts and recycle or dispose of packing material properly. POWER CABLE HARNESSES (sold separately) Sold separately based upon your specific requirements. PHOTOBIO VP Power Link Cable (sold separately) Allows linking of fixtures between aisles or levels. Item Code... - Page 4 USER MANUAL WARNING – POSSIBLE RISK OF INJURY TO EYES AND SKIN Hazardous optical UV, HEV, and IR radiation may be emitted from the light source. Always wear personal protective equipment ensuring complete shielding of skin and eyes. Avoid prolonged exposure and looking directly at light source.
- Page 5 USER MANUAL • When calcula�ng cooling needs for your facility, consider BTU load generated by LED fixtures and latent load generated by plant transpira�on, human respira�on, etc. • This IP65 LED fixture is intended for indoor use only. Avoid high pressure jets of water.
- Page 6 USER MANUAL INSTALLATION – SURFACE MOUNTING 1. A�er determining fixture placement, fix moun�ng clips (Part B) to the mount- ing surface with screws (Part C) as shown in Fig. 1, or u�lize zip �es (part D) as shown in Fig. 2. Fig.
- Page 7 USER MANUAL 4. Connect AC power cable harness to the male end of the light fixture, as shown in Fig. 5 and Fig. 6. Fig. 5 Fig. 6 INSTALLATION – VERTICAL FARM & WAREHOUSE RACK MOUNTING Be sure that the fixture is unplugged from the power source before installa- �on.
- Page 8 USER MANUAL Surface mount clips (Part B) are designed to accept zip �es for moun�ng on wire shelves as well. Fig. 9 Fit zip �es through the surface mount clips (Part B) and determine moun�ng posi�on on wire shelf, as shown in Fig. 10. Close zip �es (Part D) just enough un�l they lock so they can support weight.
- Page 9 USER MANUAL DAISY-CHAIN CONNECTION (OPTIONAL) The product allows mul�ple fixtures to be interconnected via daisy-chain from a single power cord. The number of fixtures varies depending on input voltage. This can be beneficial in many growing applica�ons. If you find you need extra length to cross levels or aisles, we have 18"...
-
Page 10: Limited Warranty
USER MANUAL LIMITED WARRANTY Hydrofarm warrants PHOTOBIO•VP to be free from defects in materials and workmanship. The warranty term is for 5 years beginning on the date of purchase. Misuse, abuse, or failure to follow instruc�ons is not covered under this warranty.
