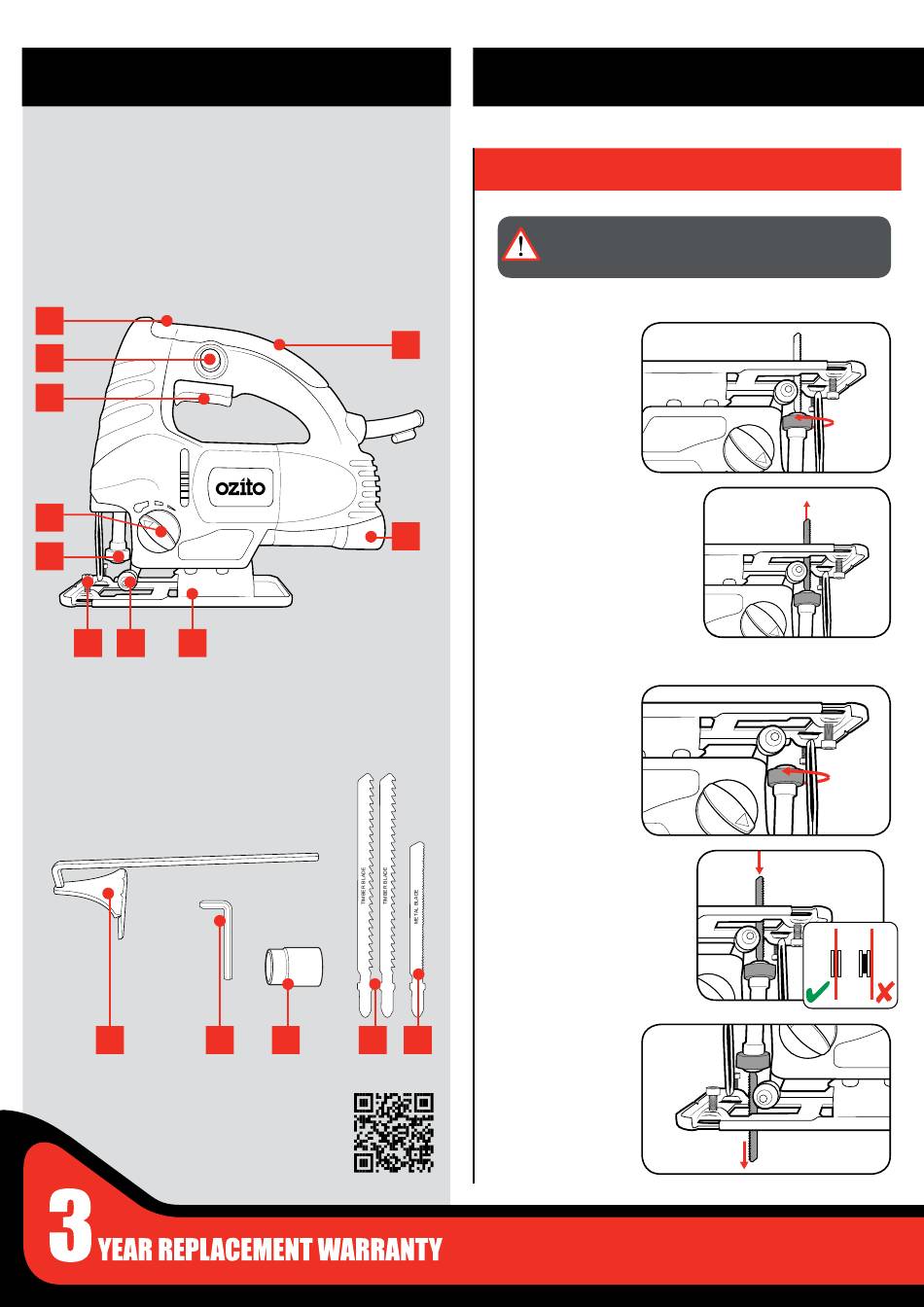

KNOW YOUR PRODUCT

PENDULUM JIGSAW
1 Variable Speed Dial
2 Lock On Switch
3 On/Off Switch
4 Pendulum Action Selector
5 Blade Lock
1
2
3
2
1
3
4
0
5
6 7 8
ACCESSORIES
11 Parallel Guide
12 Hex Key
13 Dust Extraction Adaptor
11 12
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
6 Guide Locking Screws
7 Guide Roller
8 Adjustable Shoe
9 Soft Grip Handle
10 Dust Extraction Port
9
10
14 Timber Blade x 2
15 Metal Blade x 1
13 14 15
SETUP & PREPARATION

1. CHANGING THE BLADE

WARNING! ENSURE THE SAW IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING ASSEMBLY.
Removing the Blade
1 Flip the saw upside
down and rotate the
blade lock.
2 Raise the blade to remove.
Inserting the Blade
1 Flip the saw upside
down and rotate the
blade lock.
2 Slide the blade into the lock
with the teeth facing forward
making sure the blade is in
the middle of the guide roller
groove.
Ensure the shoulder of the
blade sits right at the bottom
of the blade holder.
3 Release the blade
lock and pull on the
blade to ensure it is
secured.
2
1
3
