Door Handle Mounting Instructions

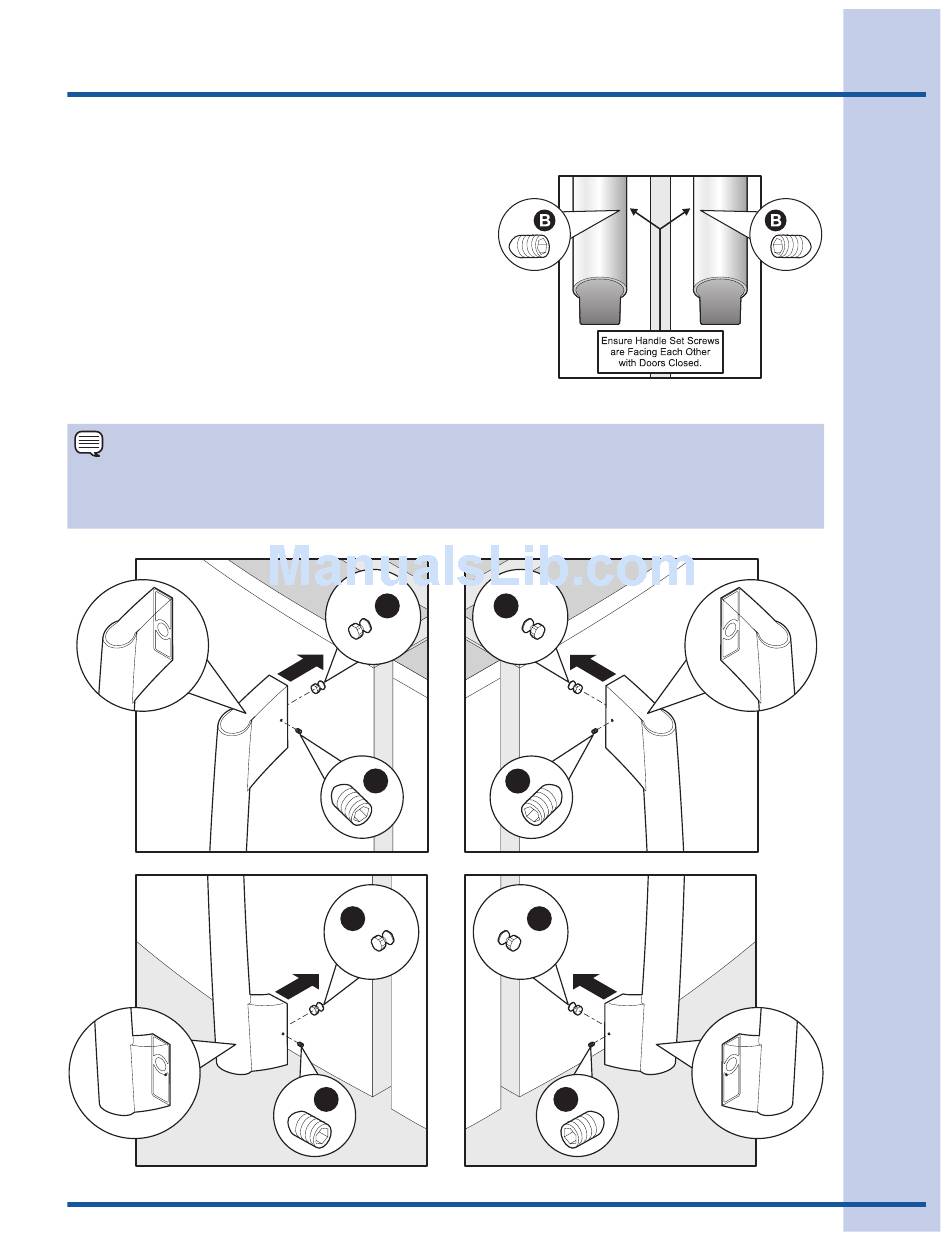

1 Remove handles from carton and any other protective
2 Position freezer handle end caps over upper and
lower pre-installed shoulder bolts (A) that are
fastened into door, ensuring the holes for the set
screws are facing towards the refrigerator door.
3 While holding handle firmly against door, fasten upper
and lower Allen set screws (B) with supplied
4 Repeat steps 2 and 3 to install refrigerator handle.
Ensure the holes for the set screws are facing towards the freezer door.
All set screws should be tightened and sub-flush (Allen set screw should be seated just below
the surface of the end cap) of handle end cap. The end caps should be drawn tight to freezer and
refrigerator doors with no gaps.
Freezer Upper End Cap
Freezer Lower End Cap
Installing Door Handles
Refrigerator Upper End Cap
Refrigerator Lower End Cap
