Summary of Contents for Sparr CAN
- Page 2 5. LED Indications……….………………………………………………………………..…………….……..4 6. OBD2 Connector Pin Description……………………………….…………..….……………...…..……..4 7. Modes Of Operation.………….……………………………………………………………………….……..5 8. Configuration………..………….……………………………………………………………………….……...6 9. Factory Default Values………………………………………….………………………..………..………….8 10. Troubleshooting …………………………………………………………………………..…..………...8 11. Contact and Support……………………………………………………………………..………....8 Manual Revision Revision Date List of Updates 23/09/2016 27/07/2017 1. Contact Information Sparr Electronics Limited Page 2...

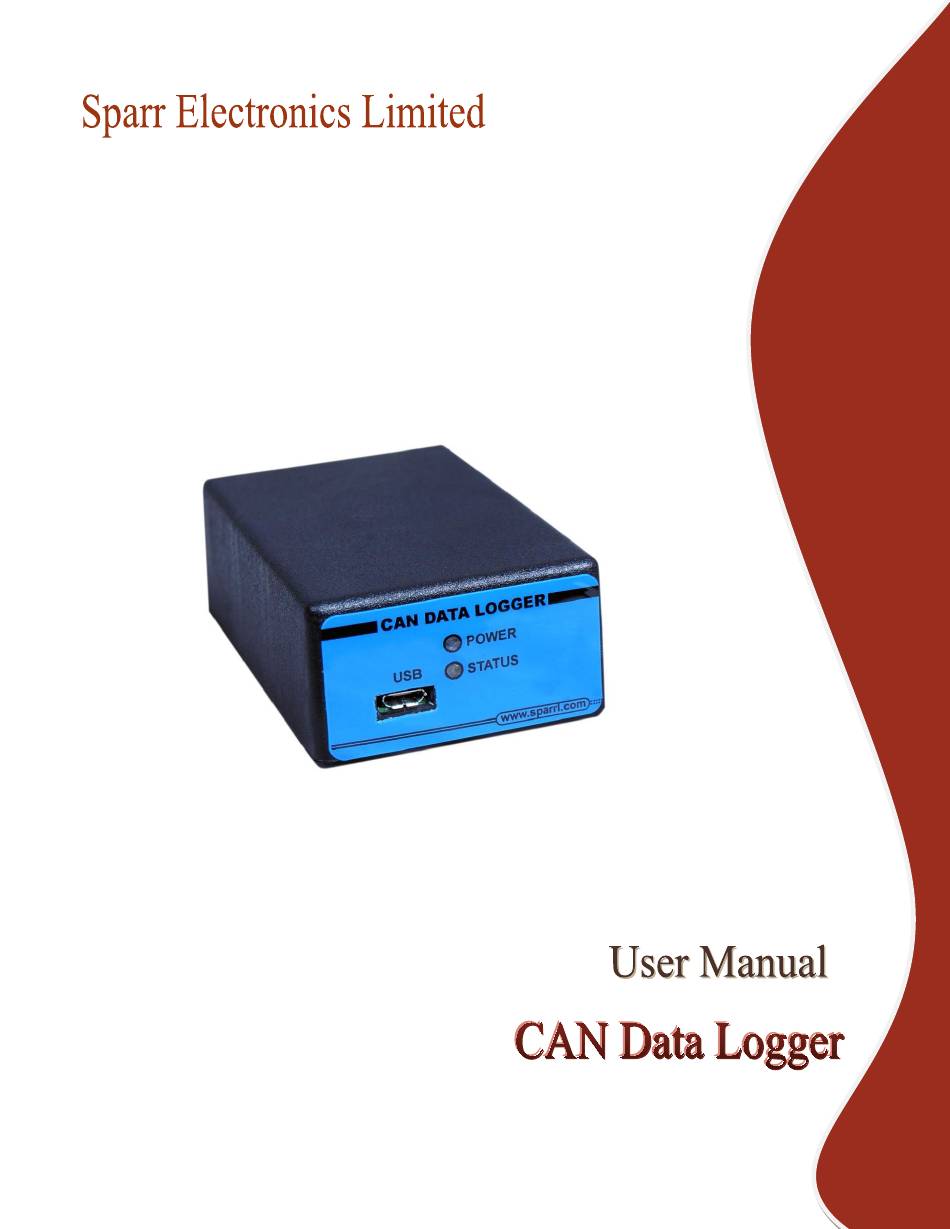

- Page 3 1. Overview CAN (Controller Area Network) DATA LOGGER is a standalone data collecting unit, which can collect and store the data from CAN bus by sending appropriate queries. It has storage capacity up to 16 GB using SD Card.
- Page 4 The Green LED glows when the device is getting power from Green the connected PC over USB interface. ON – When there is no response from CAN Slave device. Blink 800 ms ON, 200 ms OFF – When there is response Device...
- Page 5 In this mode the internal memory will be reserved for PC to access. The PC will recognize the device as a standard USB memory device Drive such that the device storage can be easily accessed. The logged data can now be transferred to the PC without the need of any special software. Additionally, the device configuration can be accessed and modified (refer section 7).
- Page 6 500 Kbps Bit Rate Table Model ID: The Model Id for identifying device, this can be configured based on from where the device will be collecting the data. It can be up-to 255. Model ID is configured as mention below #Model ID=***% Where *** is the ID number.
- Page 7 The [RTC] section configures the real-time-clock of the device. The real-time-clock enables the CAN Data Logger to add timestamps to log-files, such that the absolute date and time of a message can be determined from the log-file. Internal RTC will start from the set date and time. The date and time from RTC is used to create new text file.
- Page 8 9. Factory Default Values Default config.txt file contain CAN Bitrate value as 500kbps, Model ID as 19, File Size as 5 MB. Default rtc.txt file contains dispatching Day Date & time. It is recommended to configure config.txt & rtc.txt files as per your...
