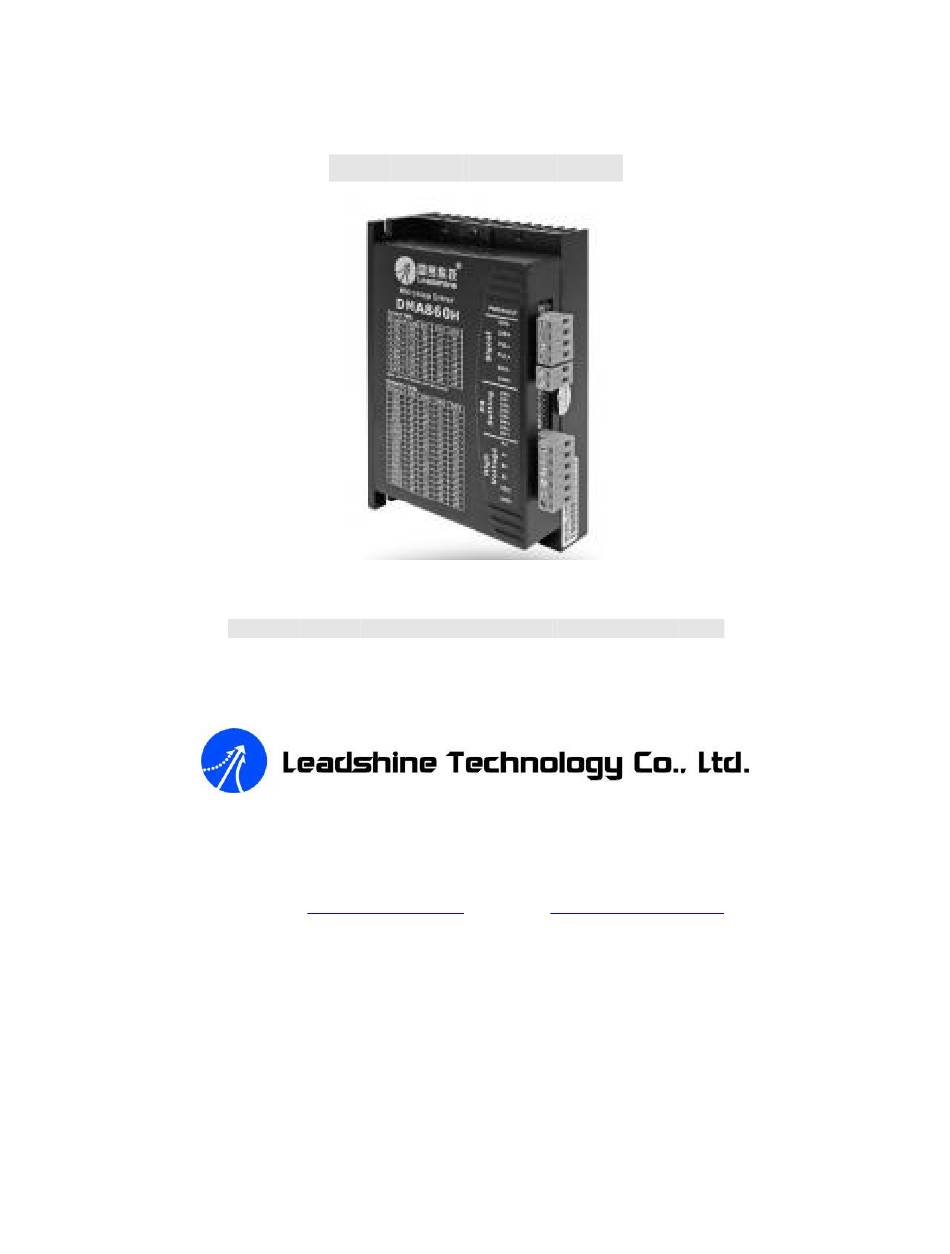

User's Manual
For

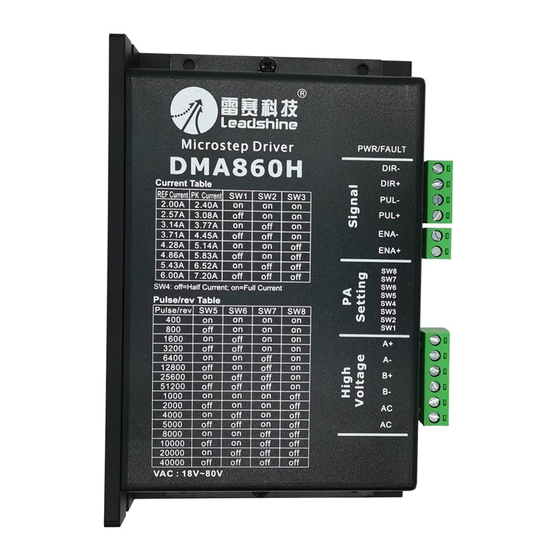

DMA860H
Fully Digital Stepper Drive
Version 1.0
©2012 All Rights Reserved
Attention: Please read this manual carefully before using the drive!
3/F, Block 2, Nanyou Tianan Industrial Park, Nanshan Dist, Shenzhen, China
T: (86)755-26409254
F: (86)755-26402718
Web site:
www.leadshine.com
E-Mail:
sales@leadshine.com
©2012 by Leadshine Technology Company Limited.
All Rights Reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Leadshine Technology DMA860H
Summary of Contents for Leadshine Technology DMA860H
- Page 1 ©2012 All Rights Reserved Attention: Please read this manual carefully before using the drive! 3/F, Block 2, Nanyou Tianan Industrial Park, Nanshan Dist, Shenzhen, China T: (86)755-26409254 F: (86)755-26402718 Web site: www.leadshine.com E-Mail: sales@leadshine.com ©2012 by Leadshine Technology Company Limited. All Rights Reserved...
- Page 2 Leadshine reserves the right to make changes without further notice to any products herein to improve reliability, function or design. Leadshine does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights of others.
-
Page 3: Table Of Contents
Contents Table of Contents 1. Introduction, Features and Applications......................... 1 Introduction................................. 1 Features..................................1 Applications................................1 2. Specifications.................................. 1 Electrical Specifications..............................1 Operating Environment and other Specifications.......................2 Mechanical Specifications............................2 Elimination of Heat..............................2 3. Pin Assignment and Description.............................3 Connector P1 Configurations............................3 Selecting Active Pulse Edge or Active Level and Control Signal Mode.............. - Page 4 DMA860H Fully Digital Stepper Drive Manual V1.0 Warranty Limitations..............................13 Contact Us..................................13...
-
Page 5: Introduction, Features And Applications
1. Introduction, Features and Applications Introduction The DMA860H is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. -
Page 6: Operating Environment And Other Specifications
DMA860H Fully Digital Stepper Drive Manual V1.0 Pulse Voltage Isolation resistance MΩ Operating Environment and other Specifications Cooling Natural Cooling or Forced cooling Avoid dust, oil fog and corrosive gases Environment 0℃ － 50℃ Ambient Temperature 40%RH － 90%RH Operating Environment Humidity 70℃... -
Page 7: Pin Assignment And Description
Selecting Active Pulse Edge or Active Level and Control Signal Mode There are two jumpers J1 and J2 inside the DMA860H specifically for selecting active pulse edge and control signal mode, as shown in figure 2. Default setting is PUL/DIR mode and upward-rising edge active. -
Page 8: Connector P2 Configurations
The DMA860H can accept differential and single-ended inputs (including open-collector and PNP output). The DMA860H has 3 optically isolated logic inputs which are located on connector P1 to accept line driver control signals. These inputs are isolated to minimize or eliminate electrical noises coupled onto the drive control signals. Recommend use line driver control signals to increase noise immunity of the driver in interference environments. -
Page 9: Connections To 6-Lead Motors
DMA860H Fully Digital Stepper Drive Manual V1.0 Figure 5: 4-lead Motor Connections Connections to 6-lead Motors Like 8 lead stepping motors, 6 lead motors have two configurations available for high speed or high torque operation. The higher speed configuration, or half coil, is so described because it uses one half of the motor’s inductor windings. -
Page 10: Series Connections
6. Power Supply Selection The DMA860H can match medium and small size stepping motors (from NEMA frame size 17 to 34) made by Leadshine or other motor manufactures around the world. To achieve good driving performances, it is important to select supply voltage and output current properly. -
Page 11: Multiple Drivers
Selecting Supply Voltage The power MOSFETS inside the DMA860H can actually operate within +24 ~ +80VDC, including power input fluctuation and back EMF voltage generated by motor coils during motor shaft deceleration. Higher supply voltage can increase motor torque at higher speeds, thus helpful for avoiding losing steps. -
Page 12: Current Settings
DMA860H Fully Digital Stepper Drive Manual V1.0 Current Settings For a given motor, higher driver current will make the motor to output more torque, but at the same time causes more heating in the motor and driver. Therefore, output current is generally set to be such that the motor will not overheat for long time operation. -
Page 13: Wiring Notes
DMA860H Fully Digital Stepper Drive Manual V1.0 Auto Tuning Requirement and Procedure: 1. Motor is connected to drive. 2. Power is connected to drive. 3. Turn on the power. 4. Make sure there is no pulse applied to drive. 5. Switch SW4 two times in one second. That is OFF-ON-OFF or ON-OFF-ON. -
Page 14: Sequence Chart Of Control Signals
DMA860H Fully Digital Stepper Drive Manual V1.0 DM860H Controller VCC = 5V 270 O PUL+ PUL- Pulse 270 O DIR+ DIR- Direction 270 O ENA+ ENA- Enable Stepper Motor Recommended Power Supply 20 ~ 72VAC Figure 10: Typical connection 10. Sequence Chart of Control Signals... -
Page 15: Protection Functions
DMA860H Fully Digital Stepper Drive Manual V1.0 t1: ENA must be ahead of DIR by at least 5s. Usually, ENA+ and ENA- are NC (not connected). See “Connector P1 Configurations” for more information. t2: DIR must be ahead of PUL effective edge by 5s to ensure correct direction;... -
Page 16: Appendix
Twelve Month Limited Warranty Leadshine Technology Co., Ltd. warrants its products against defects in materials and workmanship for a period of 12 months from shipment out of factory. During the warranty period, Leadshine will either, at its option, repair or replace products which proved to be defective. - Page 17 (RMA) before returning product for service. Please include a written description of the problem along with contact name and address. Send failed product to distributor in your area or: Leadshine Technology Co., Ltd. 3/F, Block 2, Nanyou Tianan Industrial Park, Nanshan Dist, Shenzhen, China.
- Page 18 DMA860H Fully Digital Stepper Drive Manual V1.0 Leadshine U.S.A Address: 25 Mauchly, Suite 318 Irvine, California 92618 Tel: 1-949-608-7270 Fax: 1-949-608-7298 Web: http://www.leadshineUSA.com Email: sales@leadshineUSA.com and support@leadshineUSA.com. Leadshine Hong Kong Address: Rm 3, 9/F, Block E, Wah Lok Industrial Center,31-41 Shan Mei St., Fo Tan, Shatin, Hong Kong...
